Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-8.5
JZP Series

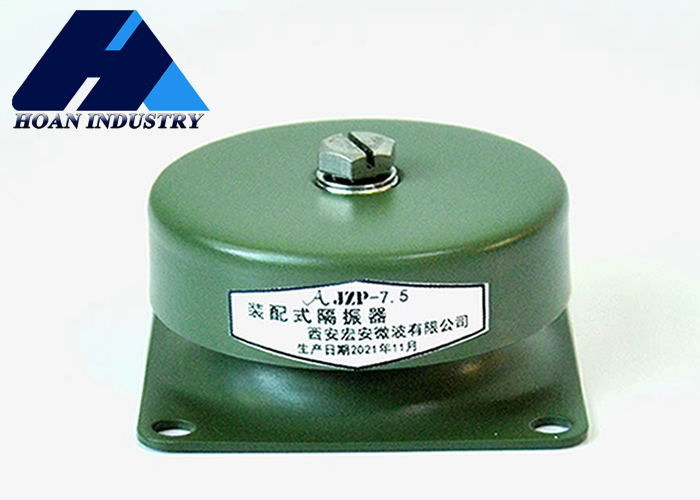

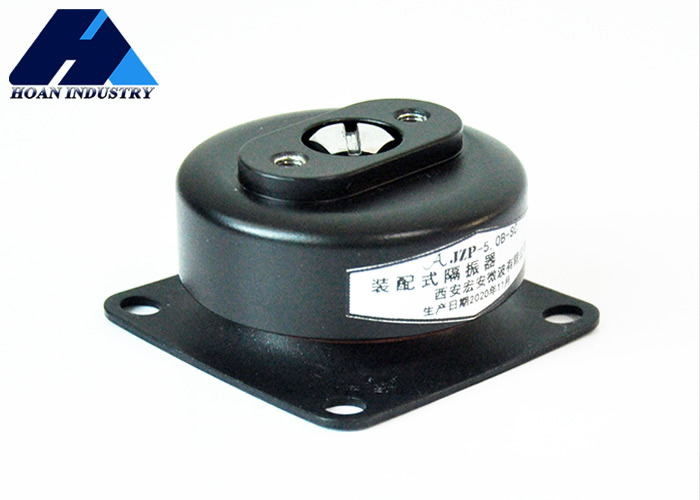

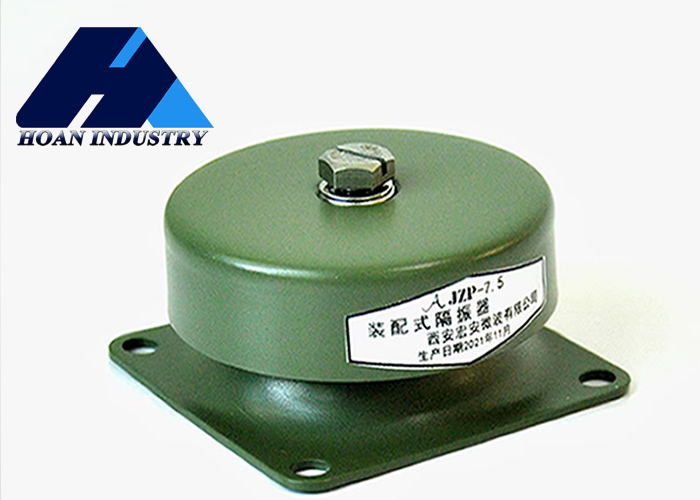

Xi'an Hoan's JZP-8.5 vibration isolators is the kind of spare parts whcih can take different friction effects in different working environments and conditions.
From the 1970s, the technology of anti vibration mounts is applied to the project construction of bridge, road and railroad.
Contact deformation, friction and damping of vibrations occurring in temporary fastenings and permanent joints have essential influence on dynamical properties of machines and devices.
Mathematical description of the phenomenon of structural friction is not easy due to the complexity of the friction process and difficulties in describing the state of stresses and deformations occurring in the joints of elements.
Now this JZP-8.5vibration isolators are now widely used in the precision equipments systems, aeronautics and space, aircrafts,embedded electronics, electric cabinets, etc.
Performance parameters
| Model |
Nominal load (kg) |
Static displacement (mm) |
Operating temperature (℃) |
Resonant frequency (Hz) |
Damping ratio | Impact experiments | expiration date | Expiration date |
| JZP-2.5 | 2.5 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100g12次 | 8 | 5 |
| JZP-3.2 | 3.2 | |||||||
| JZP-4.2 | 4.2 | |||||||
| JZP-5.2 | 5.2 | |||||||
| JZP-6.0 | 6.0 | |||||||
| JZP-7.0 | 7.0 | |||||||
| JZP-7.5 | 7.5 | |||||||
| JZP-8.5 | 8.5 | |||||||
| JZP-10.5 | 10.5 | |||||||
| JZP-13.5 | 13.5 | |||||||
| JZP-15 | 15 |
