Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR1-3.3D-A
Video
Video
GR1 Series

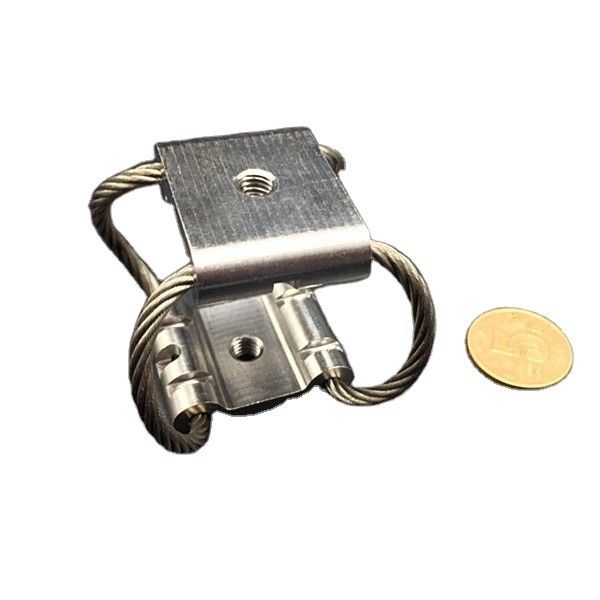

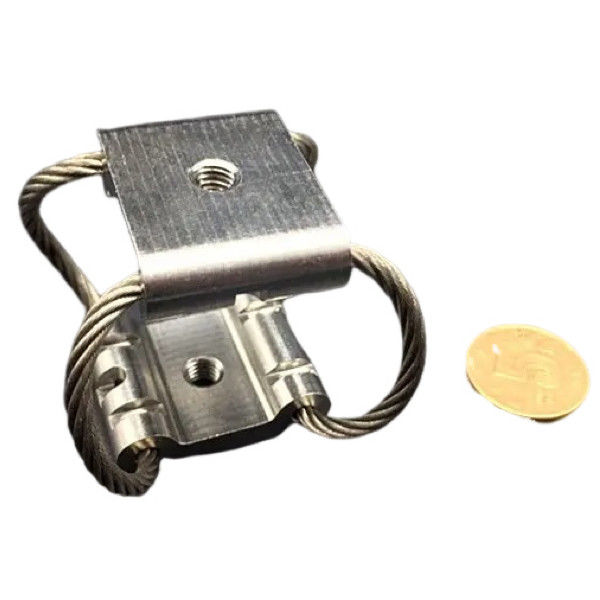

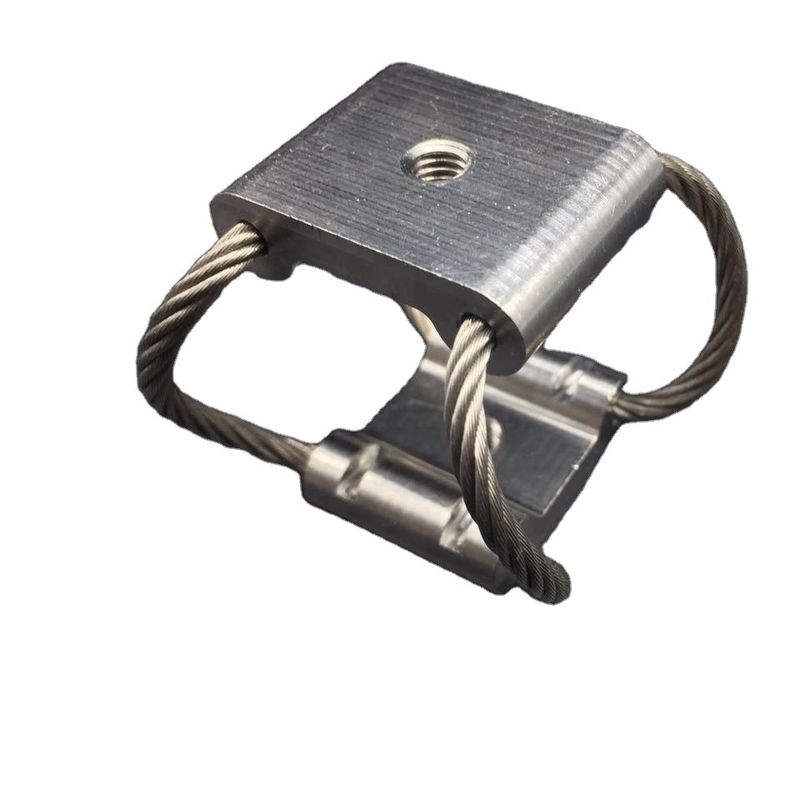

In the field of vibration control in the industrial sector, the GR steel wire rope vibration isolator is truly outstanding. It is meticulously woven from high - strength steel wire ropes, and each individual wire has undergone strict screening, boasting excellent toughness and strength.
| Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
|
|
1 |
GR1-3.3D-A | 3.3 | 6.4 | 3.9 | 1.9 |
| 2 | GR1-2.4D-A | 2.4 | 8.4 | 2.8 | 1.2 |
| 3 | GR1-1.8D-A | 1.8 | 11.9 | 1.8 | 0.6 |
| 4 | GR1-1.3D-A | 1.3 | 15 | 1.3 | 0.4 |
| Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
|
| 1 | GR1-3.3D-A | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | GR1-2.4D-A | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | GR1-1.8D-A | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 18.3 | 0.5 | 0.1 |
| Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
|
| 1 | GR1-3.3D-A | 1.1 | 7.9 | 0.7 | 0.7 |
| 2 | GR1-2.4D-A | 0.9 | 9.9 | 0.4 | 0.4 |
| 3 | GR1-1.8D-A | 0.7 | 13.2 | 0.3 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 16.3 | 0.1 | 0.1 |
FAQ
1.Q:Are you a manufacturer or a trading company?
