Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-2228D-1250B
Video
Video
JGX-2228 Series

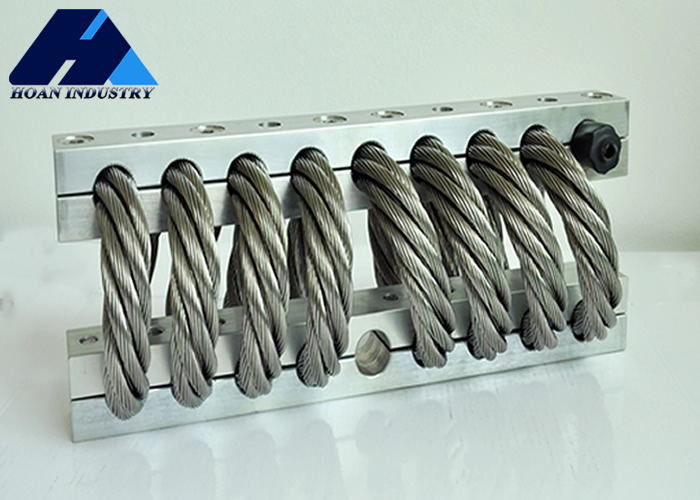

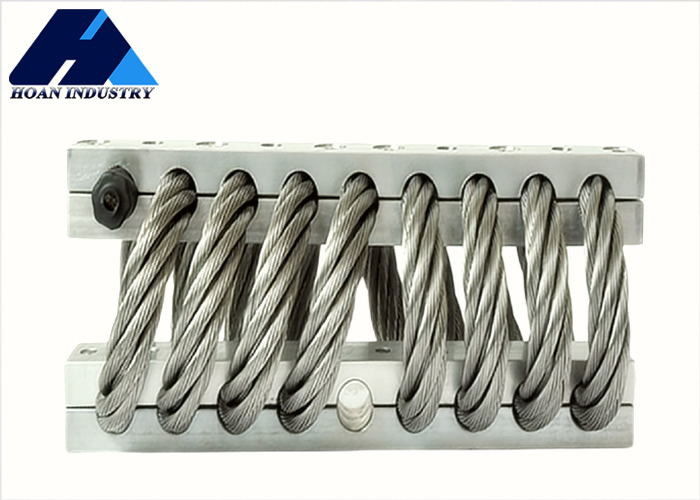

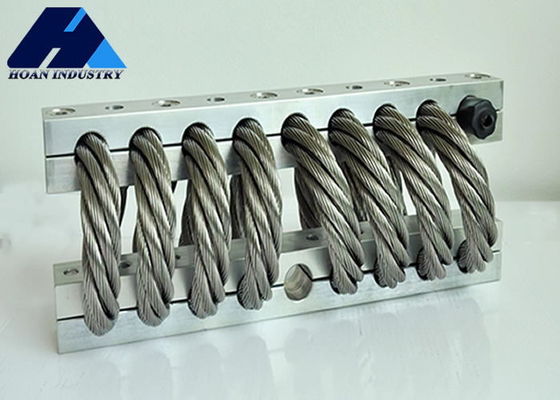

The steel wire rope vibration isolator is a highly efficient vibration control device, widely used in fields such as aerospace,precision instruments, and ships. It utilizes the unique non - linear characteristics of the steel wire rope to effectively absorb and dissipate vibration energy. Compared with traditional vibration isolators, it has advantages such as high and low temperature resistance, corrosion resistance, and long service life. In terms of structure, multiple strands of steel wire ropes are wound and combined in a specific way, and vibration isolation is achieved through the friction and deformation between the steel wire ropes. It is easy to install and can adapt to complex working conditions, providing reliable guarantee for the stable operation of equipment.
| Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
|
| 1 | JGX-2228D-1250B | 1250 | 50.8 | 2362 | 1010 |
| 2 | JGX-2228D-960B | 960 | 67.3 | 1513 | 585 |
| 3 | JGX-2228D-860B | 860 | 74.9 | 1270 | 469 |
| 4 | JGX-2228D-665B | 665 | 102.9 | 800 | 263 |
| 5 | JGX-2228D-550B | 550 | 125.7 | 585 | 180 |
| 6 | JGX-2228D-380B | 380 | 125.7 | 377 | 138 |
| Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
|
| 1 | JGX-2228D-1250B | 889.8 | 72.4 | 1348 | 503 |
| 2 | JGX-2228D-960B | 680.6 | 96.5 | 860 | 289 |
| 3 | JGX-2228D-860B | 613.3 | 105.4 | 718 | 235 |
| 4 | JGX-2228D-665B | 454.1 | 144.8 | 448 | 131 |
| 5 | JGX-2228D-550B | 331.6 | 177.8 | 327 | 89 |
| 6 | JGX-2228D-380B | 215.3 | 177.8 | 212 | 70 |
| Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock)
|
|
| 1 | JGX-2228D-1250B | 626.5 | 53.3 | 618 | 618 |
| 2 | JGX-2228D-960B | 361.5 | 71.1 | 356 | 356 |
| 3 | JGX-2228D-860B | 294.9 | 77.5 | 291 | 291 |
| 4 | JGX-2228D-665B | 165.3 | 108.0 | 163 | 163 |
| 5 | JGX-2228D-550B | 113.2 | 132.1 | 112 | 112 |
| 6 | JGX-2228D-380B | 77.6 | 132.1 | 77 | 77 |
