Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-15-SC1
JZP-SC1 Series

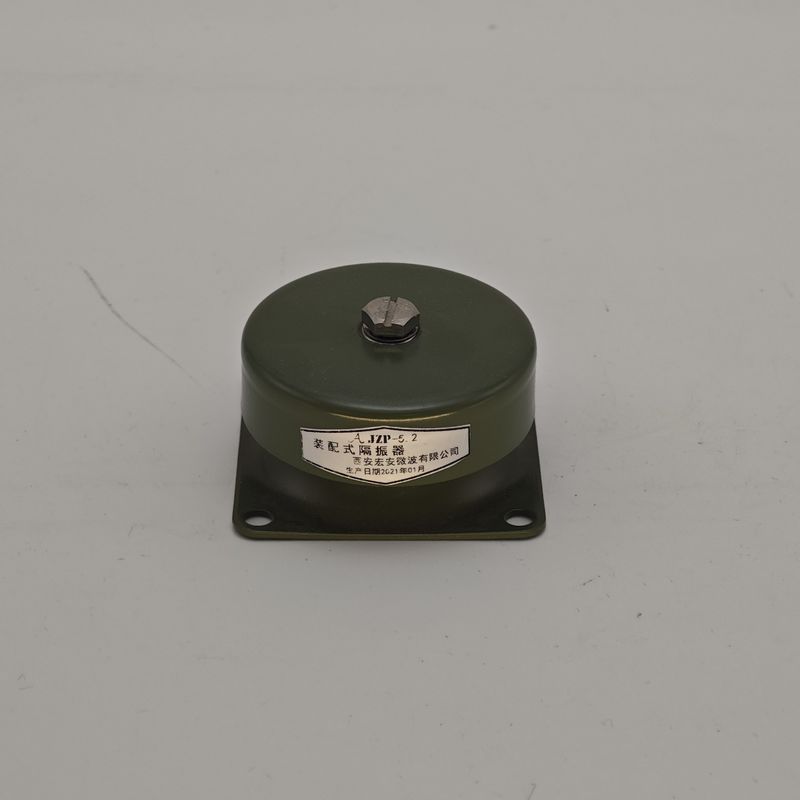

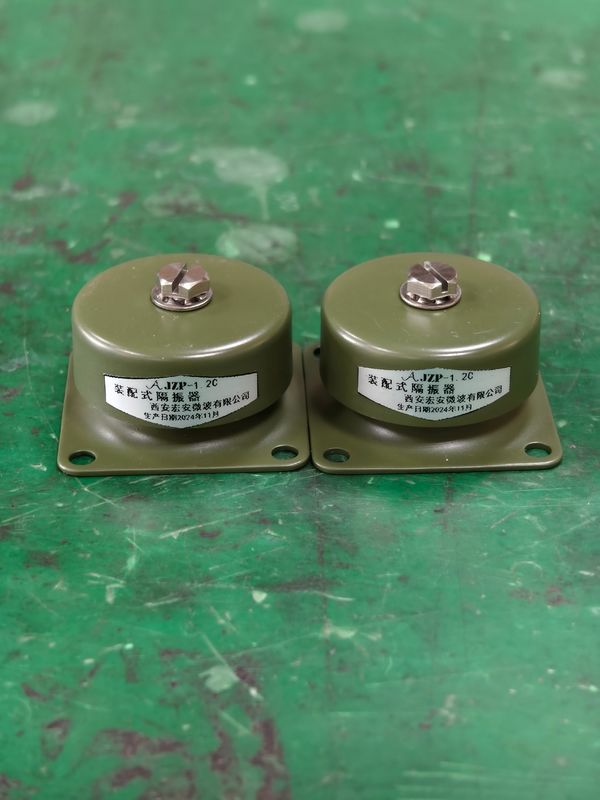

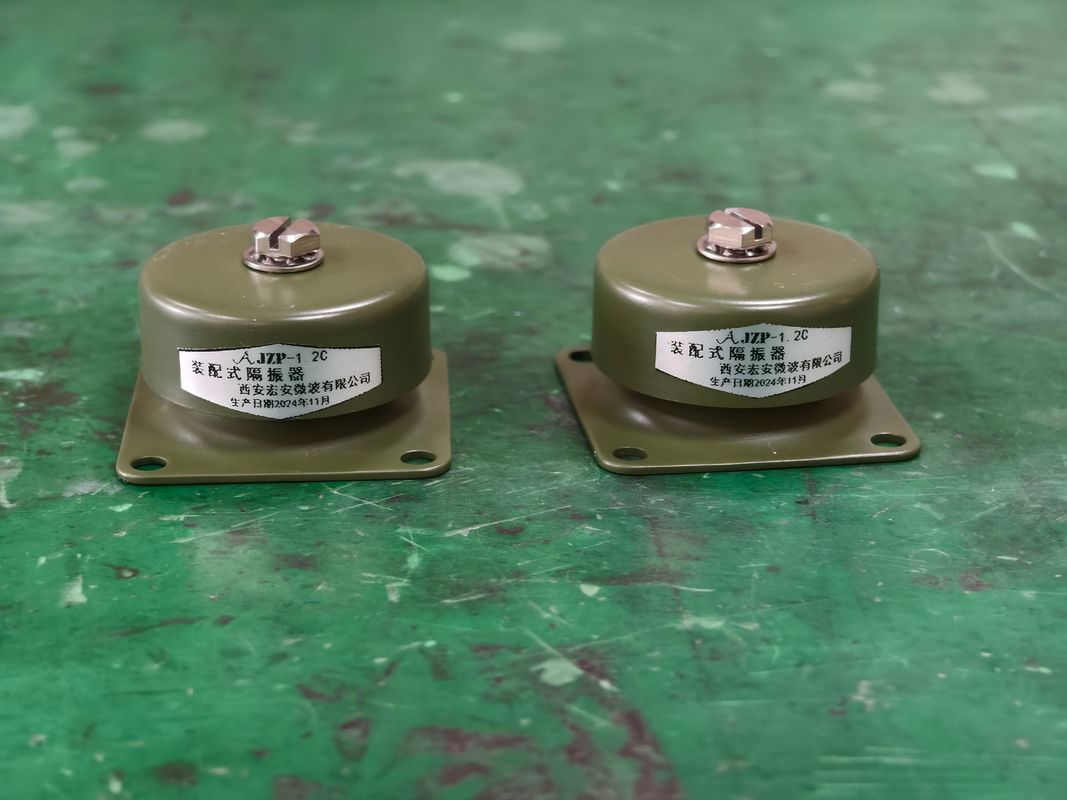

In the environment of modern engineering and equipment operation, vibration isolation technology is of vital significance to ensure the stability, reliability and accuracy of equipment. The JZP series friction damping vibration isolator launched by Xi'an Hongan Microwave Co., Ltd. stands out in the field of vibration isolation with its unique design concept and excellent performance.
JZP series friction damping vibration isolator is a vibration isolation product carefully developed by Xi'an Hoan Microwave Co., Ltd. It adopts advanced friction damping technology, which is designed to effectively isolate the influence of various vibration sources on the equipment and provide a relatively stable working environment for precision equipment. Compact and well-designed, this isolator can be adapted to a wide range of work scenarios and equipment types.
Thanks to the tribodamping technology, the isolator has a high damping coefficient. This means that it is able to quickly convert the vibrational energy into heat energy and dissipate it, which quickly suppresses the amplitude of the vibration. In some vibration-sensitive equipment, such as microwave communication equipment, high-precision optical instruments, etc., the high damping characteristics can ensure that the equipment can quickly return to a stable state when it is disturbed by vibration, and reduce the signal distortion and measurement error caused by vibration.
JZP series friction damping vibration isolator can maintain stable vibration isolation performance under different environmental conditions. Whether in a high-temperature, low-temperature, humid or dry environment, the internal friction structure and materials can ensure the normal operation of the vibration isolator. This environmental adaptability allows it to be applied to a variety of harsh industrial environments and vibration isolation needs of outdoor equipment.
Product dimensions
| Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
| JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
| Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
| JZP-3.2-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
| JZP-4.2-SC1 | 4.2 | ||||||
| JZP-5.2-SC1 | 5.2 | ||||||
| JZP-6.0-SC1 | 6.0 | ||||||
| JZP-7.0-SC1 | 7.0 | ||||||
| JZP-7.5-SC1 | 7.5 | ||||||
| JZP-9.0-SC1 | 9.0 | ||||||
| JZP-10.5-SC1 | 10.5 | ||||||
| JZP-13.5-SC1 | 13.5 | ||||||
| JZP-15-SC1 | 15 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
