Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-13.5-SC1

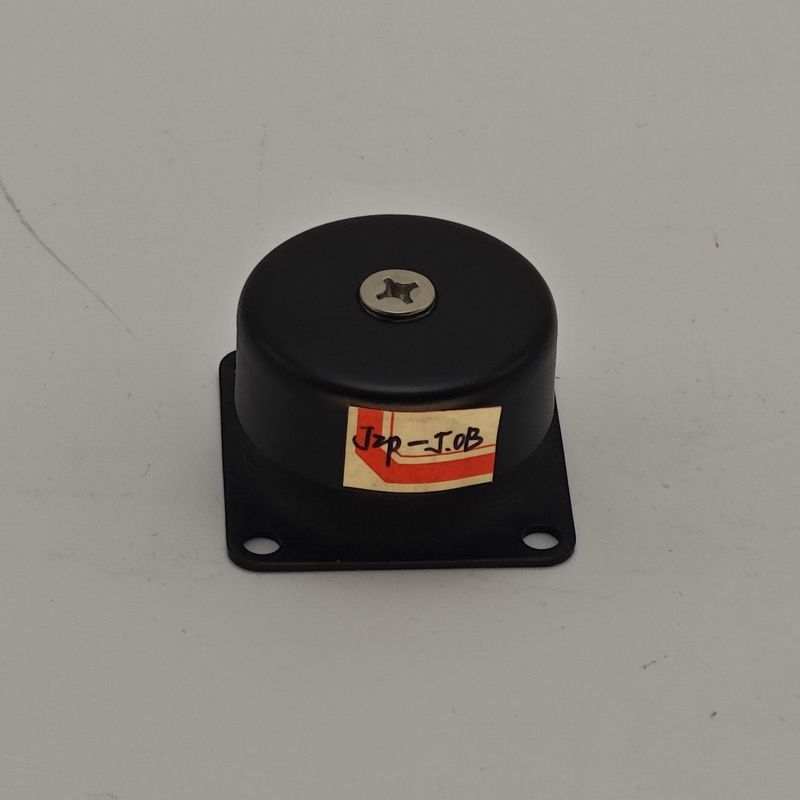

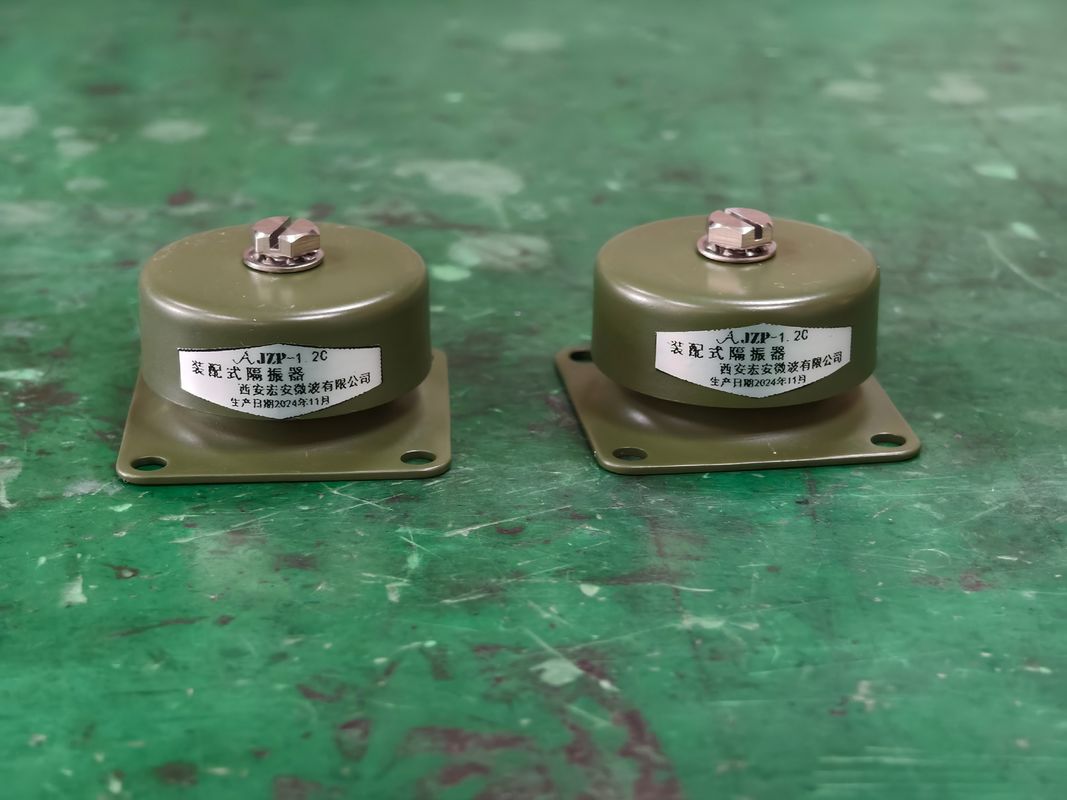

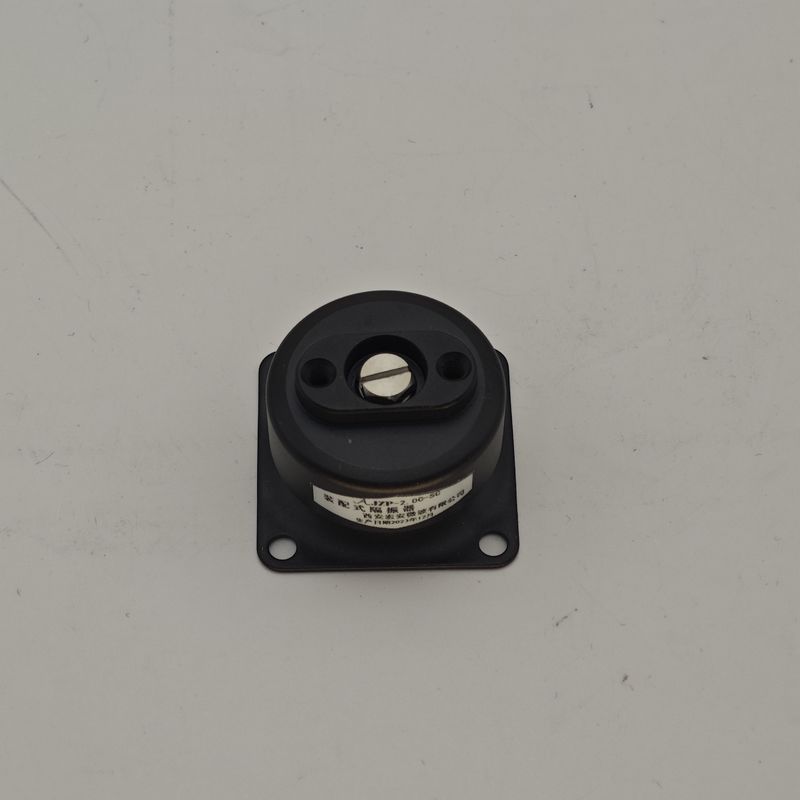

JZP-SC1 Series
The JZP series vibration isolators have excellent broadband vibration isolation capabilities. In terms of low-frequency vibration, it can effectively suppress the low-frequency shaking generated by the equipment during the start and stop process. It is also well isolated from high-frequency vibrations, such as high-frequency disturbances from complex external environments or high-speed moving components inside the equipment. This feature makes it suitable for the vibration isolation needs of many different types of equipment, from large industrial equipment to delicate electronic instruments.
The presence of frictional damping gives this isolator the characteristics of high damping. High damping quickly attenuates vibrational energy, reducing the duration and amplitude of vibration. This is suitable for some equipment with high sensitivity to vibration, such as microwave communication equipment, high-precision measuring instruments, etc., to ensure that the equipment works in a stable environment and avoids problems such as signal interference and measurement errors caused by vibration.
For high-precision electronic instruments, such as oscilloscopes, spectrum analyzers, etc., small vibrations can lead to inaccurate measurement results. The isolator provides a stable working platform for these instruments, guaranteeing the accuracy and reliability of the measurements.
Product dimensions
| Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
| JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
| Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
| JZP-3.2-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
| JZP-4.2-SC1 | 4.2 | ||||||
| JZP-5.2-SC1 | 5.2 | ||||||
| JZP-6.0-SC1 | 6.0 | ||||||
| JZP-7.0-SC1 | 7.0 | ||||||
| JZP-7.5-SC1 | 7.5 | ||||||
| JZP-9.0-SC1 | 9.0 | ||||||
| JZP-10.5-SC1 | 10.5 | ||||||
| JZP-13.5-SC1 | 13.5 | ||||||
| JZP-15-SC1 | 15 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
