Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-7.5-SC1
JZP-SC1 Series

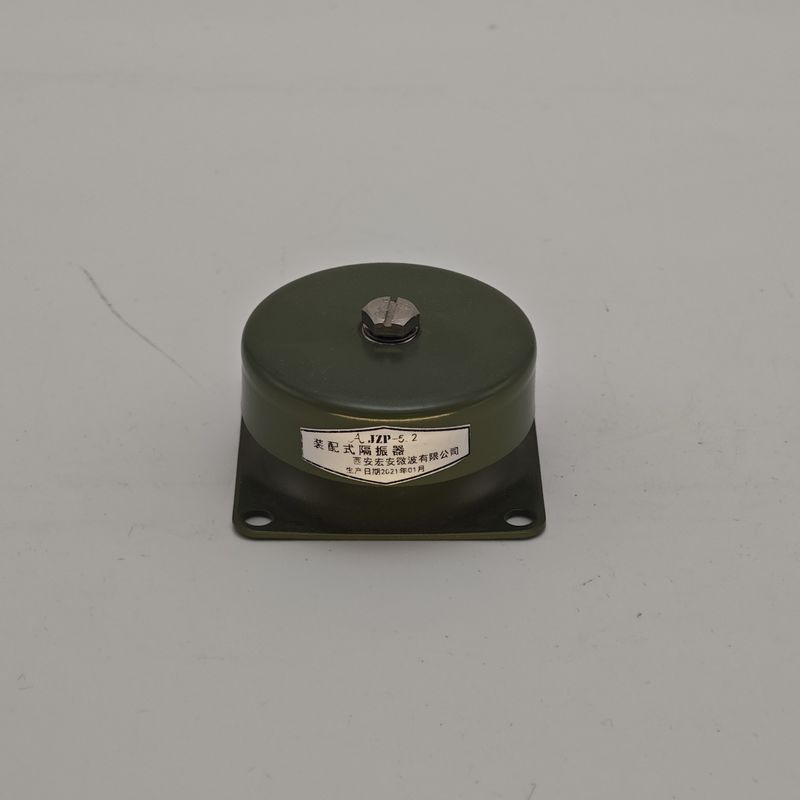

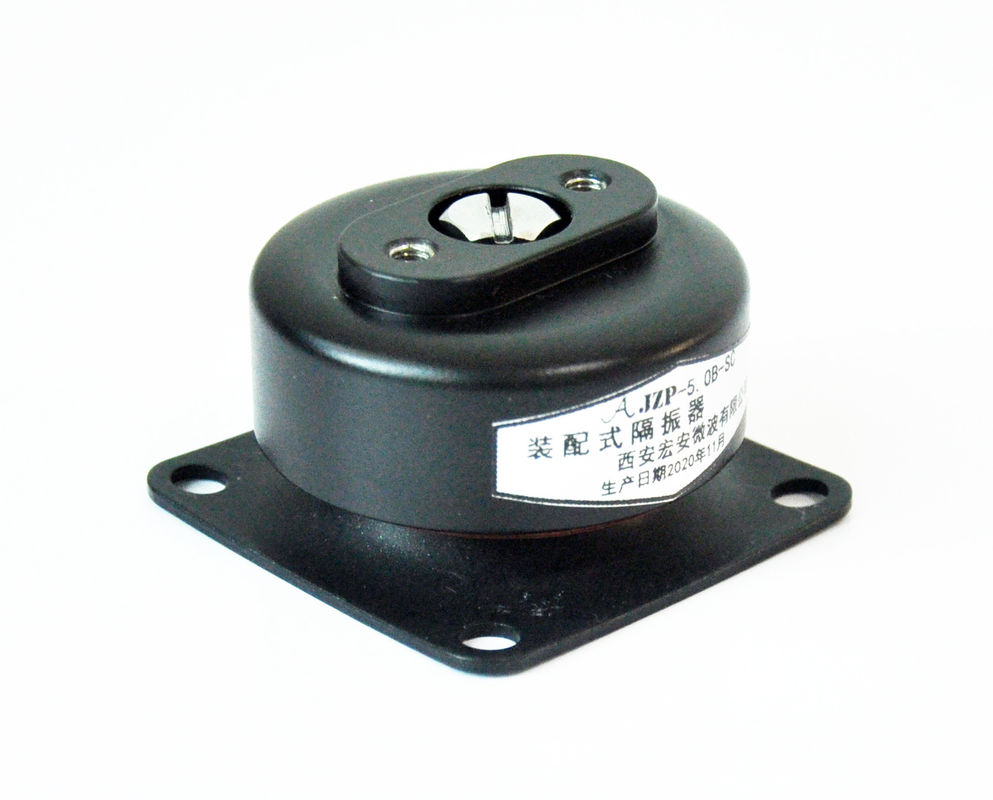

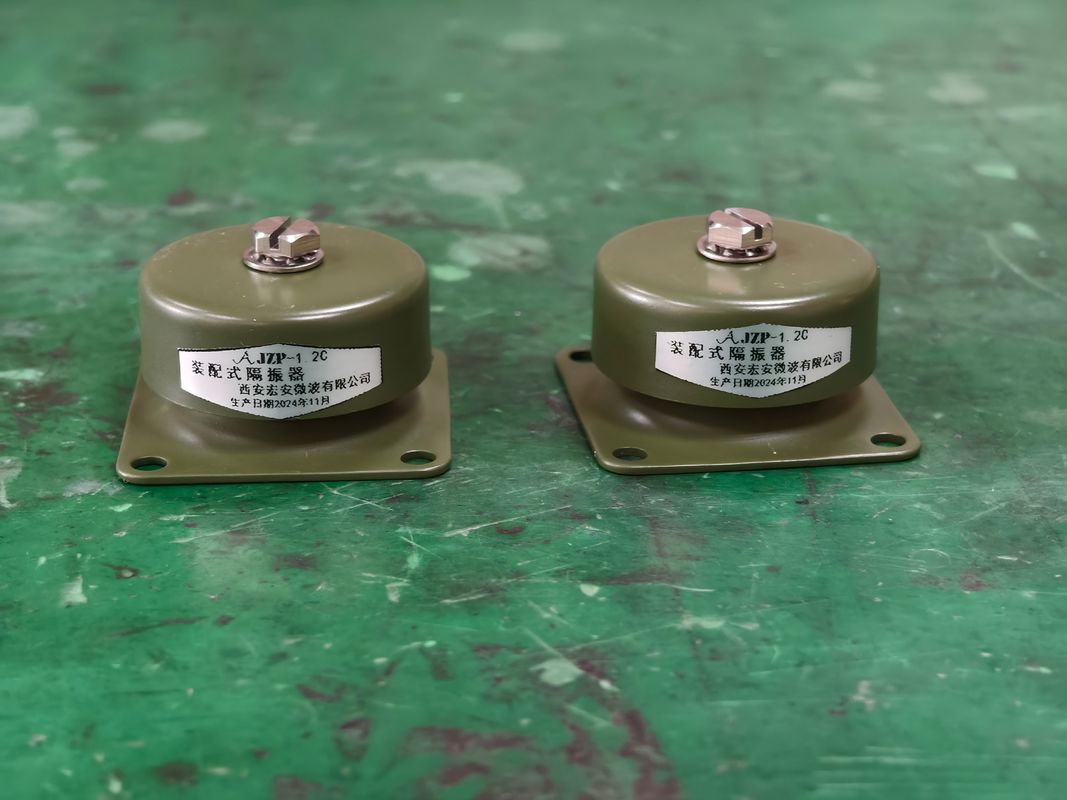

In today's era of rapid development of science and technology, all kinds of precision equipment have increasingly strict requirements for the stability of the working environment, and vibration isolation technology has become an indispensable key factor to ensure the normal operation of equipment. The JZP series friction damping isolator launched by Xi'an Hongan Microwave Co., Ltd. occupies an important place in the field of vibration isolation with its unique design and excellent performance.
JZP series friction damping isolator is a product that embodies advanced engineering technology and innovative ideas. It is designed to cope with complex and variable vibration environments and provide efficient vibration isolation solutions for equipment that is extremely sensitive to vibration. Visually, the isolators are compact and clean-shaped, and this compact design allows them to be easily installed on the bottom or support of a wide range of equipment without taking up too much space.
The operating principle of this vibration isolator is based on a frictional damping mechanism. When the device is subjected to external vibrations, the vibration energy is transferred to the vibration isolator. Inside the vibration isolator, a special friction part is constructed to generate friction during vibration. This friction forces are in the opposite direction of the vibration, creating a natural resistance that effectively dissipates the vibrational energy. It acts as an intelligent "energy absorber" that converts the vibrational energy that may interfere with the normal operation of the equipment into heat energy and dissipates it, thus greatly reducing the amplitude of vibration transmitted to the equipment. This frictional damping method of operation allows the JZP series of vibration isolators to perform well when handling vibrations of different frequencies and intensities.
Product dimensions
| Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
| JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
| Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
| JZP-3.2-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
| JZP-4.2-SC1 | 4.2 | ||||||
| JZP-5.2-SC1 | 5.2 | ||||||
| JZP-6.0-SC1 | 6.0 | ||||||
| JZP-7.0-SC1 | 7.0 | ||||||
| JZP-7.5-SC1 | 7.5 | ||||||
| JZP-9.0-SC1 | 9.0 | ||||||
| JZP-10.5-SC1 | 10.5 | ||||||
| JZP-13.5-SC1 | 13.5 | ||||||
| JZP-15-SC1 | 15 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
