Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-4.0B
JZP-B Series

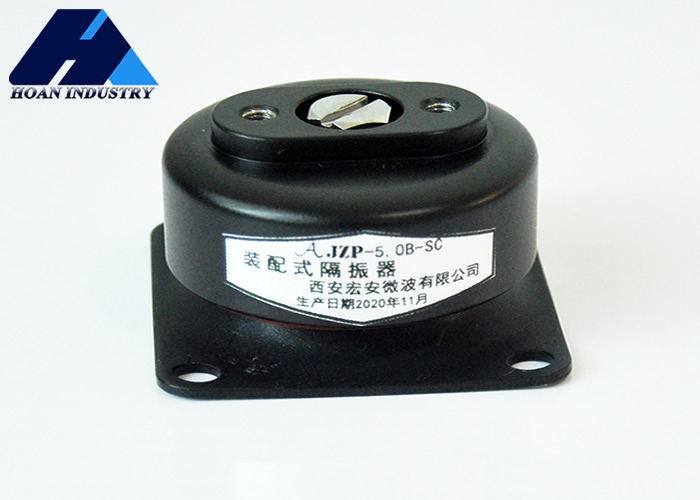

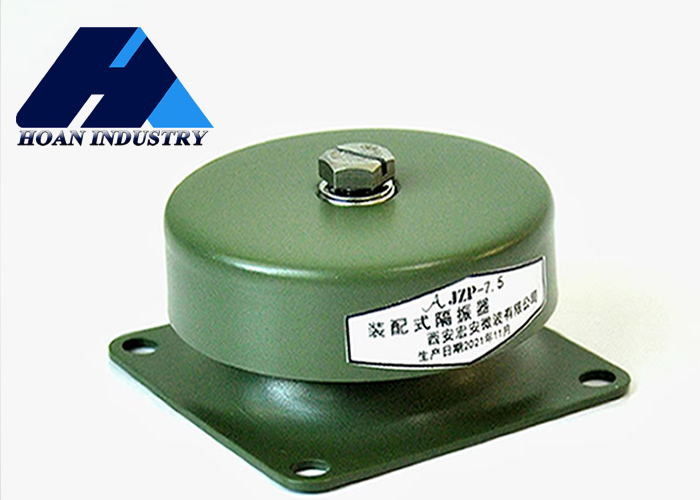

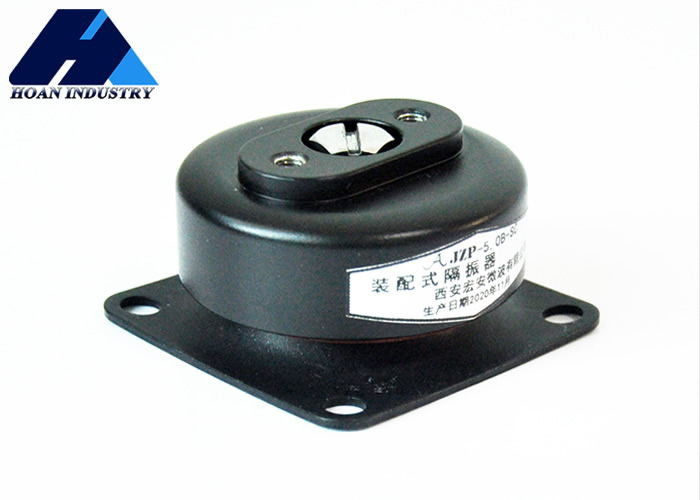

In today's era of vigorous development of industry and construction, the operation of various machinery and equipment, the bearing of building structures and the operation of transportation facilities inevitably produce vibration and noise. The Assembled Vibration Isolator (JZP) is like a silent guardian, quietly playing a key role behind the scenes, creating a more stable, quiet and comfortable environment.
The advantage of JZP is not only in its exquisite composition, but also in its flexible customization according to actual application scenarios. In the field of machinery and equipment, whether it is precision instrumentation or large industrial machine tools, JZP can be tailored to the weight, vibration frequency and operating conditions of the equipment. Through accurate calculation and debugging, it ensures that the vibration isolator is perfectly matched with the equipment, and maximizes its vibration isolation and noise reduction efficiency, so as to ensure the stable operation of the equipment, prolong the service life of the equipment, and improve the accuracy and quality of production.
From industrial production to daily life, from urban construction to transportation, the prefabricated vibration isolator (JZP) silently "absorbs shock and noise" for our world with its excellent vibration isolation and noise reduction performance. It is a shining pearl in modern engineering technology, constantly pushing various industries to move towards more efficient, stable, comfortable and safe direction, so that we can enjoy the convenience brought by scientific and technological progress, but also free from vibration and noise, and embrace a quiet and harmonious living and working environment.
Dimensional parameter table
| Model | D | H | h | A | B | d1 | MG | R |
| JZP | 58 | 29 | 17 | 50 | 60 | 5.5 | M6 | 5 |
| JZP-B | 46 | 30 | 18 | 40 | 50 | 5.5 | M6 | 5 |
| JZP-C | 36 | 20 | 13.5 | 32 | 40 | 4.3 | M5 | 4 |
Technical data sheet
| Model |
Nominal load (kg) |
Static displacement (mm) |
Operating temperature (℃) |
Resonant frequency (Hz) |
Damping ratio | Impact test | expiration date | Expiration date |
| JZP-1.0B | 1.0 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100g12次 | 8 | 5 |
| JZP-1.5B | 1.5 | |||||||
| JZP-2.0B | 2.0 | |||||||
| JZP-3.0B | 3.0 | |||||||
| JZP-4.0B | 4.0 | |||||||
| JZP-4.5B | 4.5 | |||||||
| JZP-5.0B | 5.0 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
