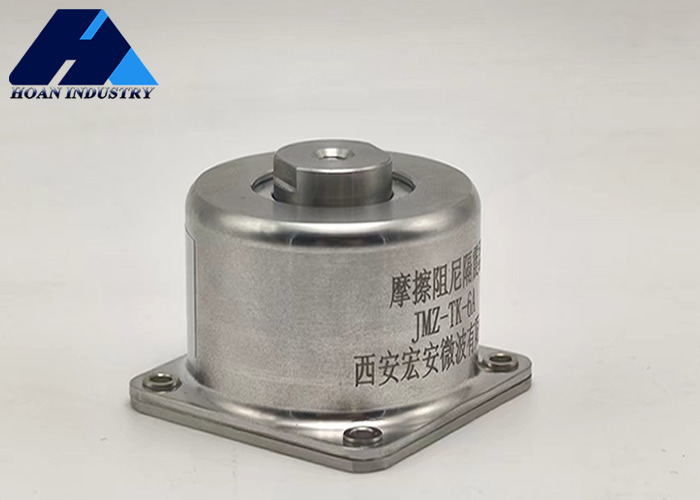

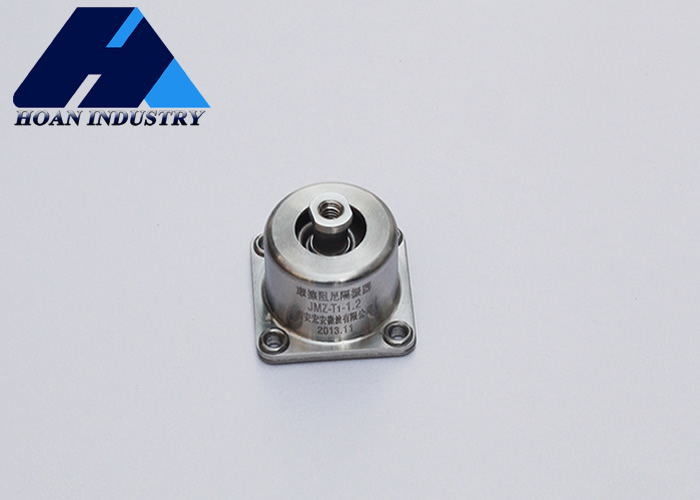

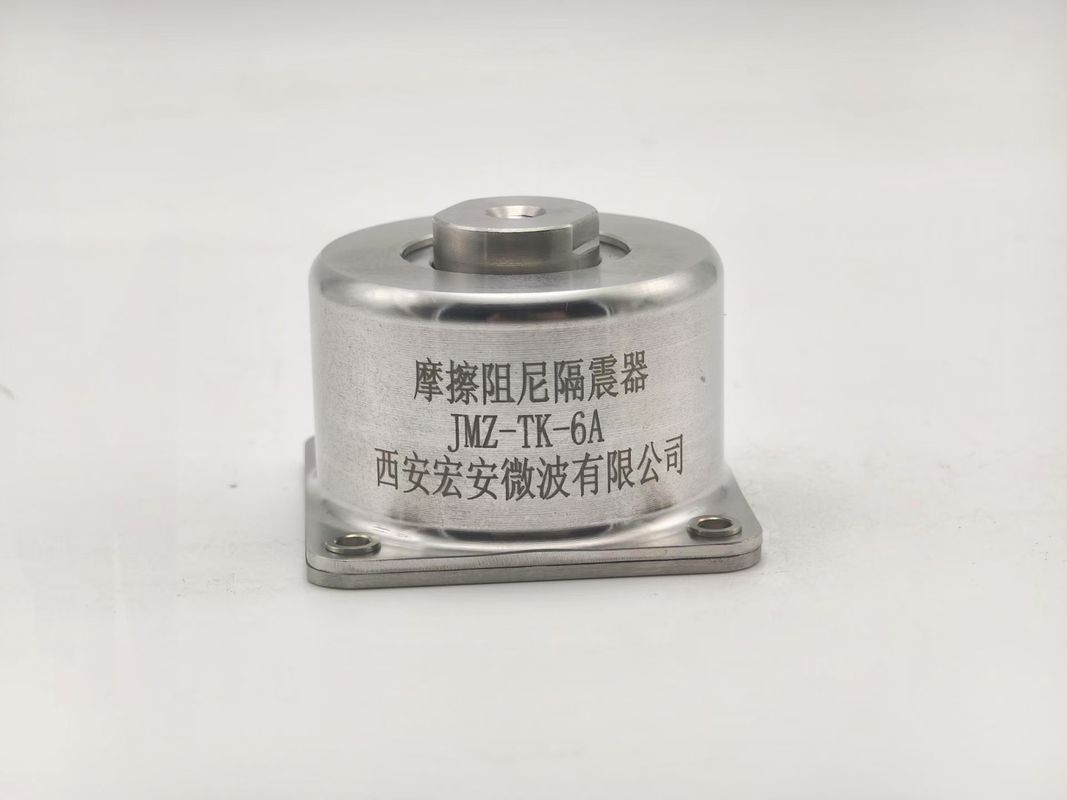

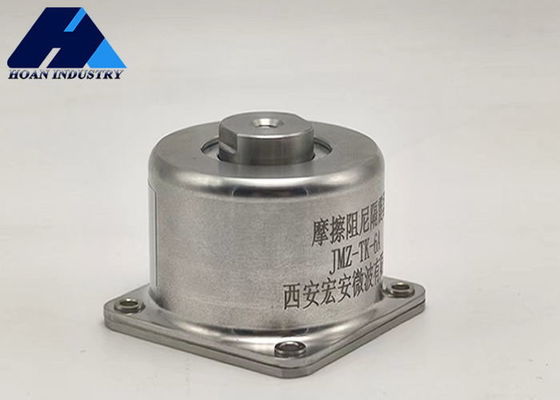

Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd

Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd

Microwave Rubber Shock Absorber

Precision Equipment Rubber Shock Absorber

JMZ-TK1-40 Rubber Shock Absorber

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JMZ-TK1-40

Contact Us
Request A Quote
Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd
Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd
Product Details
Diameter:
0.25-2 Inches
Port:
Xi'an Or Specified
Load Range:
5，6KG
Natural Frequency:
10 Hz
Load Capacity:
100-5000 Lbs
Relative Product:
Backdraft Damper
Working Temperatu:
: -55 ~ +120
After Warranty Service:
Online Support
Max Static Load:
20-47N(2kg-4.8Kg)
Shock Resistance:
40g/11ms
Length:
3-24 Inches
Product Certification:
ISO 9001
Mounting Hole Size:
8mm
Resonance Frequency:
30 Hz
Highlight:

Microwave Rubber Shock Absorber

,

Precision Equipment Rubber Shock Absorber

,

JMZ-TK1-40 Rubber Shock Absorber

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4，pience，7
RELATED PRODUCTS
Good price Customized JZP-2.0C Rubber Shock Absorber for Machinery and Structural Protection in Various Applications online Video

Customized JZP-2.0C Rubber Shock Absorber for Machinery and Structural Protection in Various Applications

Get Best Price
Good price JZP-1.8C The Top-Notch Rubber Shock Absorber for Vibration and Noise Reduction online Video

JZP-1.8C The Top-Notch Rubber Shock Absorber for Vibration and Noise Reduction

Get Best Price
Good price JZP-1.0B-SC and Rubber Shock Absorber for Vibration and Noise Control in Wind Loads Seismic Actions and Equipment Vibrations online Video

JZP-1.0B-SC and Rubber Shock Absorber for Vibration and Noise Control in Wind Loads Seismic Actions and Equipment Vibrations

Get Best Price
Good price JZP-7.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Electronic Equipment Manufacturing online Video

JZP-7.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Electronic Equipment Manufacturing

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description

JMZ-TK Series

The JMZ-TK series friction dampers is a new designed anti-vibration mounts, which have most characteristics of JMZ series items.

The max static load of the JMZ-TK Series friction damplers if from 2.5kg to 50kg, whichcan be specially used in many precision euipments and systerms, embedded electronics, etc.

The JMZ-TK Series friction dampers can also be used in the very narrow spaces to meet the mountable environmental requirements.This new type friction dampper is the very selection for the limits of the space under some special situations.

JMZ-TK series friction dampers have shown excellent performance in practical applications. It is widely used in military communications enterprises, research institutes, and higher education institutions, among other fields. In the military field, the JMZ-TK series provides a stable working environment for key equipment such as radar and communication equipment, ensuring the normal operation of equipment and accurate transmission of information. In the field of scientific research and education, the JMZ-TK series provides effective anti-vibration protection for laboratory equipment and teaching instruments, improving the quality and safety of experiments and teaching.

Overall, the JMZ-TK series vibration isolator of Xi'an Hoan Microwave Co., Ltd. is a vibration isolation product with excellent performance and wide application. Although slightly more expensive, its excellent vibration isolation properties and wide range of applications make it the first choice for many industrial sectors. When selecting and using JMZ-TK series vibration isolators, users should fully consider their advantages and disadvantages, and choose according to their actual needs to ensure the best use effect.

Precision Equipment and Systems JMZ-TK1-40 Rubber Shock Absorber by Xi an Hoan Microwave Co. Ltd 0

Model Installation dimensions(mm)

Dimensions

(mm)
B M d A C Ø1 Ø2 H1 H2
JMZ-TK-2.5A～8A 46 6 4.1 58 20 55 22 36 3.6
JMZ-TK1-25/40/50 63 12 8.2 78 20 70 22 56 6



Technical data sheet

Model

Nominal load

(N)



 Load range

Natural frequency

≤(Hz)

Loading working height

H0±1(mm)

 Limit displacement(mm) Impact resistance test

Single weight

≤(g)

 Service life
Vertical standard
above under
δ1 δ2 δ3
JMZ-TK-2.5A 25 20～30 33 42 4 4 4 100g 380 10
JMZ-TK-4A 40 30～50
JMZ-TK-5A 50 40～60
JMZ-TK-6A 60 50～70
JMZ-TK-7A 70 60～80
JMZ-TK-8A 80 70～90
JMZ-TK1-25 250 200～300 20 70 7 8 7 60g 1100
JMZ-TK1-40 400 300～480
JMZ-TK1-50 500 400～600
