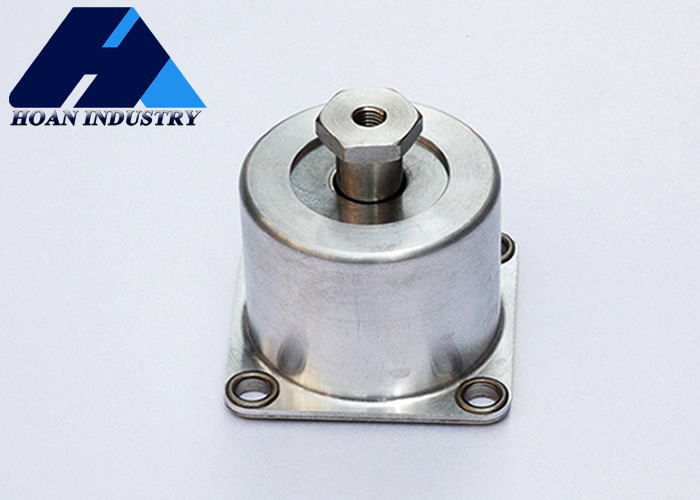

Name: JMZ-TK1-25 Vibration Isolator Wide Application Range for Various Industrial Sectors and Systems
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK1-25
Price: Negotiable USD
Availability: InStock

Home > products > Rubber Shock Absorber >

JMZ-TK1-25 Vibration Isolator Wide Application Range for Various Industrial Sectors and Systems

Industrial Sectors Vibration Isolator

Industrial Systems Vibration Isolator

Wide Application Range Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JMZ-TK1-25

Request A Quote

Product Details

Maximum Load Capacity:

100kg

Vibration Frequency:

5Hz To 100Hz

Feature:

Durable

Machinery Test Report:

Not Available

Usage:

Vacuum Pump

Length:

3-12 Inches

Material:

Stainless Steel

Maximum Deflection:

1 Inch

Spring Rate:

100-1000 Lbs/in

Compression Ratio:

1:2

Marketing Type:

Hot Product 2024

Damping Ratio:

0.5

Size:

To Machine

Highlight:

Industrial Sectors Vibration Isolator

Industrial Systems Vibration Isolator

Wide Application Range Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Customized JZP-2.0C Rubber Shock Absorber for Machinery and Structural Protection in Various Applications

Get Best Price

Video

JZP-1.8C The Top-Notch Rubber Shock Absorber for Vibration and Noise Reduction

Get Best Price

Video

JZP-1.0B-SC and Rubber Shock Absorber for Vibration and Noise Control in Wind Loads Seismic Actions and Equipment Vibrations

Get Best Price

Video

JZP-7.0-SC1 Rubber Shock Absorber The Ideal Solution for Vibration Isolation in Electronic Equipment Manufacturing

Get Best Price

86-29-88292913

Contact Now

Product Description

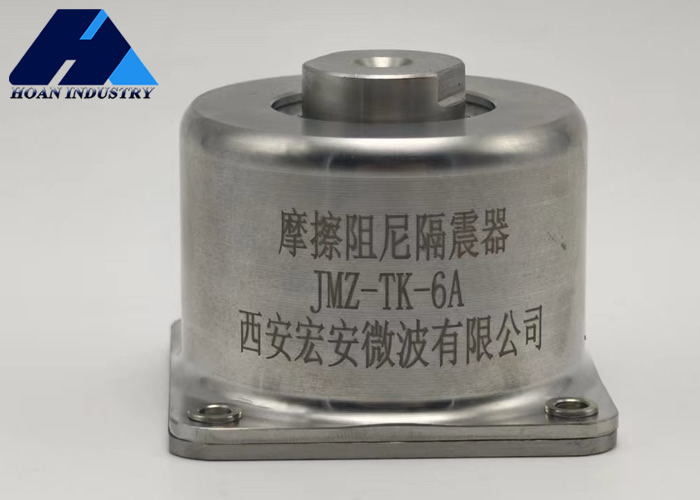

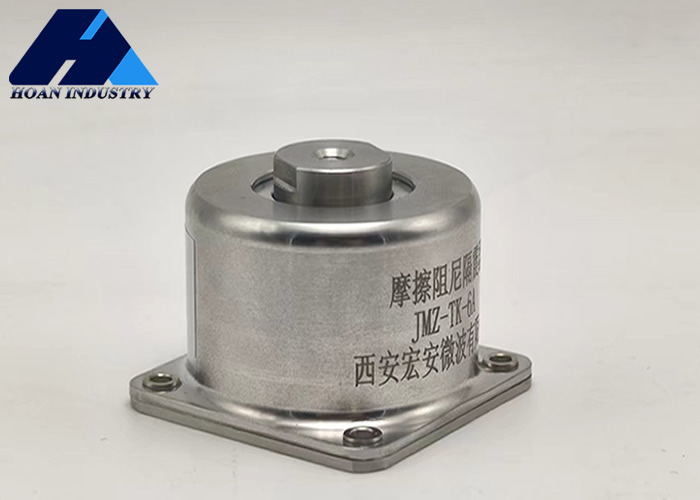

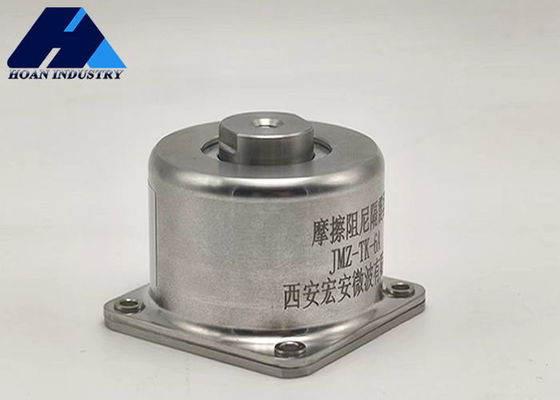

JMZ-TK Series

The JMZ-TK series friction dampers is a new designed anti-vibration mounts, which have most characteristics of JMZ series items.

The max static load of the JMZ-TK Series friction damplers if from 2.5kg to 50kg, whichcan be specially used in many precision euipments and systerms, embedded electronics, etc.

The JMZ-TK Series friction dampers can also be used in the very narrow spaces to meet the mountable environmental requirements.This new type friction dampper is the very selection for the limits of the space under some special situations.

The core advantage of the JMZ-TK series friction dampers lies in their unique damping principle. It adopts advanced friction materials and precise mechanical structure design, which can generate effective damping force during the operation of the equipment, thereby suppressing the propagation of vibration. This damping mechanism not only improves the stability of the equipment, but also effectively extends the service life of the equipment while reducing maintenance costs caused by vibration.

Overall, the JMZ-TK series vibration isolator of Xi'an Hoan Microwave Co., Ltd. is a vibration isolation product with excellent performance and wide application. Although slightly more expensive, its excellent vibration isolation properties and wide range of applications make it the first choice for many industrial sectors. When selecting and using JMZ-TK series vibration isolators, users should fully consider their advantages and disadvantages, and choose according to their actual needs to ensure the best use effect.

JMZ-TK1-25 Vibration Isolator Wide Application Range for Various Industrial Sectors and Systems 0

Model	Installation dimensions(mm)			Dimensions (mm)
Model	B	M	d	A	C	Ø1	Ø2	H₁	H₂
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25/40/50	63	12	8.2	78	20	70	22	56	6

Technical data sheet

Model	Nominal load (N)	Load range	Natural frequency ≤(Hz)	Loading working height H₀±1(mm)	Limit displacement(mm)			Impact resistance test	Single weight ≤(g)	Service life
					Vertical		standard
					above	under
					δ1	δ2	δ3
JMZ-TK-2.5A	25	20～30	33	42	4	4	4	100g	380	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK-8A	80	70～90
JMZ-TK1-25	250	200～300	20	70	7	8	7	60g	1100
JMZ-TK1-40	400	300～480
JMZ-TK1-50	500	400～600
