Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JMZ-TK-8A
JMZ-TK Series

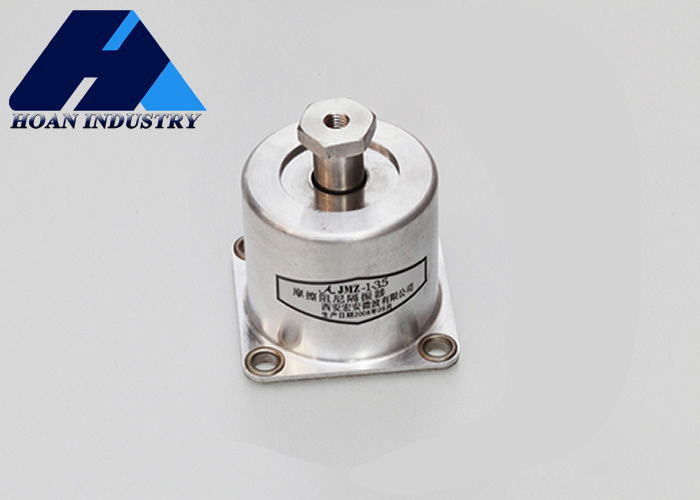

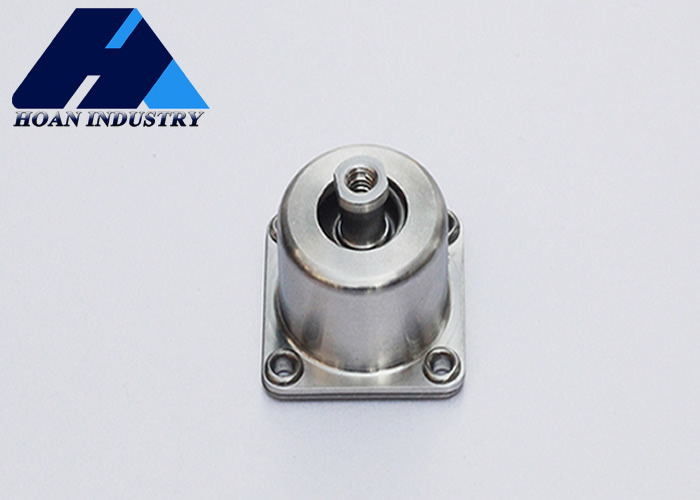

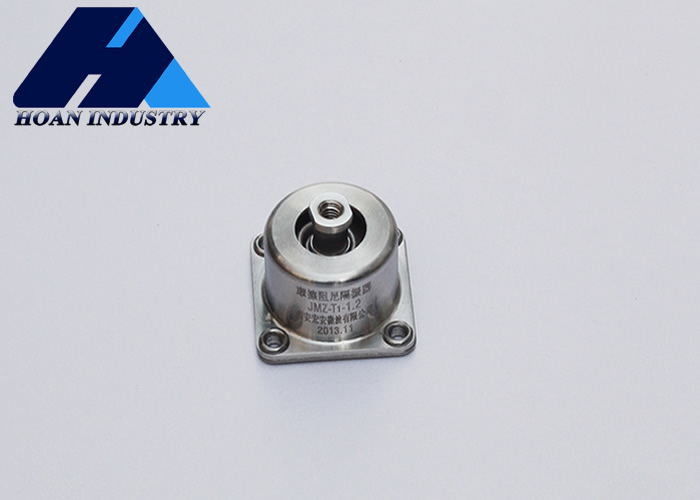

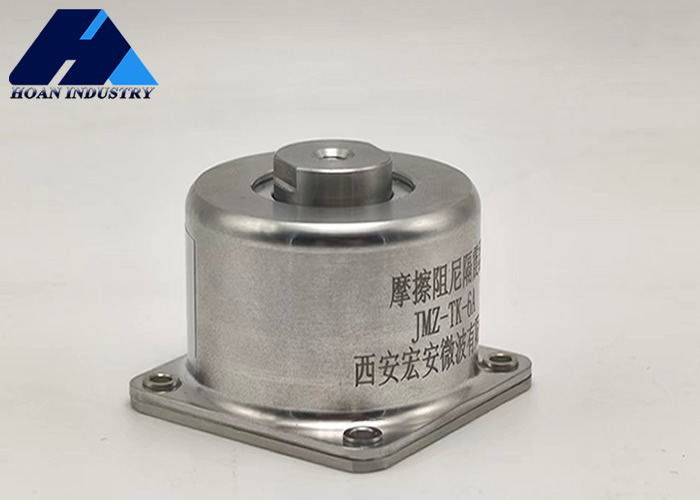

JMZ-TK series vibration isolator is one of the star products of Xi'an Hoan Microwave Co., Ltd. As a high-tech enterprise focusing on the R&D, production and sales of vibration damping technology, Xi'an Hoan Microwave Co., Ltd. has been committed to providing customers with high-quality, efficient and reliable vibration reduction solutions. As the company's flagship product, JMZ-TK series vibration isolator equipment not only inherits the company's technical genes, but also performs well in practical applications, and has won the recognition and trust of our customers.
Today, the JMZ-TK series friction dampers are the preferred object of many professional fields. In the field of military defense, it is widely used in the electronic equipment of military command centers, the launch system of strategic missiles, and the on-board precision instruments of various armored vehicles. In the strong impact force and violent vibration environment at the moment of missile launch, JMZ series friction dampers can effectively cushion and ensure the stability and accuracy of the launch system. When the armored vehicle is driving at high speed on rough terrain, it can absorb bump vibrations, so that the communication, navigation and other electronic equipment in the vehicle can operate normally, providing a solid guarantee for the smooth development of military operations.
The wide application of JMZ-TK series friction dampers benefits from its advanced friction damping technology and continuous innovation design concept. The R&D team has conducted in-depth research on the vibration characteristics and use environment of various types of equipment, and continuously optimized the product performance to meet the growing demand for vibration reduction in different industries. In the future, JMZ-TK series friction dampers will continue to expand their application territory, emerge in more emerging fields, continue to contribute to the stable development of various industries around the world, and write a brilliant chapter in the field of vibration damping.
| Model | Installation dimensions(mm) |
Dimensions (mm) |
|||||||
| B | M | d | A | C | Ø1 | Ø2 | H1 | H2 | |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25/40/50 | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical data sheet
| Model |
Nominal load (N)
|
Load range |
Natural frequency ≤(Hz) |
Loading working height H0±1(mm) |
Limit displacement(mm) | Impact resistance test |
Single weight ≤(g) |
Service life | ||
| Vertical | standard | |||||||||
| above | under | |||||||||
| δ1 | δ2 | δ3 | ||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 100g | 380 | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||||
| JMZ-TK-7A | 70 | 60～80 | ||||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||||
| JMZ-TK1-25 | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 60g | 1100 | |
| JMZ-TK1-40 | 400 | 300～480 | ||||||||
| JMZ-TK1-50 | 500 | 400～600 | ||||||||
