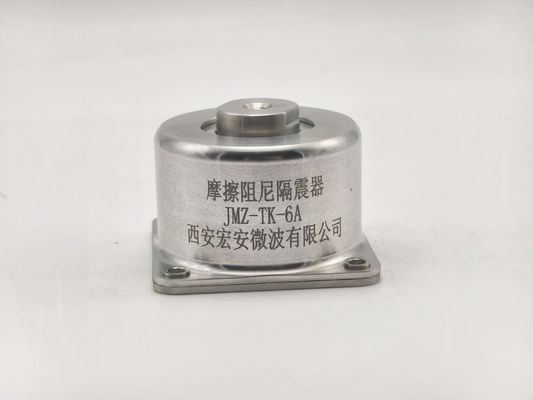

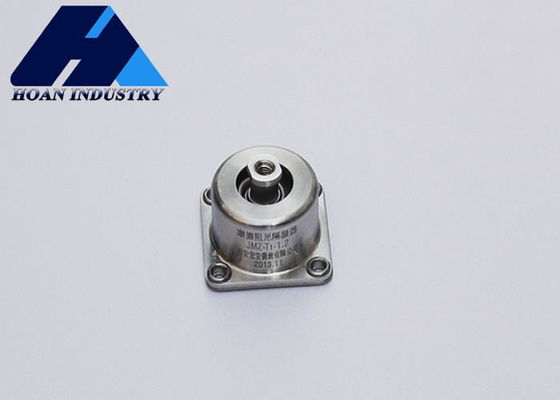

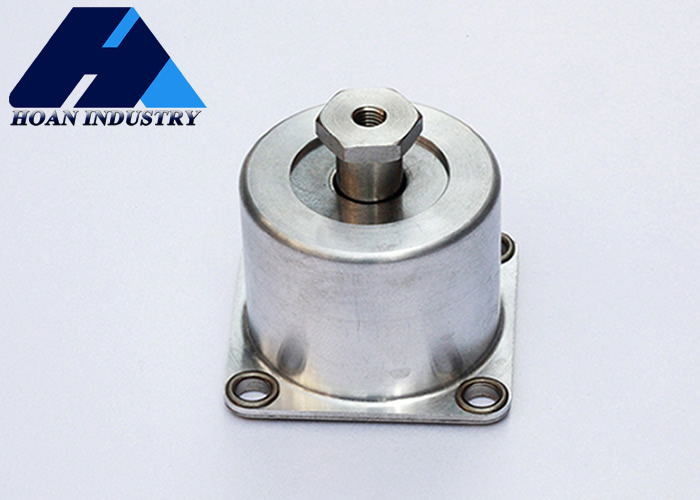

JMZ-TK Series
JMZ-TK series vibration isolator is one of the star products of Xi'an Hoan Microwave Co., Ltd. As a high-tech enterprise focusing on the R&D, production and sales of vibration damping technology, Xi'an Hoan Microwave Co., Ltd. has been committed to providing customers with high-quality, efficient and reliable vibration reduction solutions. As the company's flagship product, JMZ-TK series vibration isolator equipment not only inherits the company's technical genes, but also performs well in practical applications, and has won the recognition and trust of our customers.
The JMZ-TK series friction dampers excel in space utilization, and their clever structural design allows them to be installed smoothly in extremely confined spaces. Whether it's in an aerospace cabin with a compact layout, in the corner of a ship console with limited space, or in a sophisticated communication base station cabinet, it can be cleverly integrated into the mission of vibration damping without taking up too much valuable space, making it an ideal choice for space-constrained scenarios.
In the field of energy extraction and production, such as the monitoring equipment on oil drilling platforms, the internal instruments of wind power generation units, and the tracking system of solar power plants, JMZ-TK series friction dampers ensure the normal operation of equipment in harsh natural environments and complex working conditions with their stable and reliable vibration damping performance, and improve energy production efficiency and equipment reliability.
In the field of electronic information and photography and video, from the signal transmission equipment of large communication base stations, servers in data centers, to professional cameras and unmanned aerial photography equipment at film and television shooting sites, JMZ-TK series friction dampers escort them. Effectively filter external vibration, avoid signal interference and image blur, make information transmission smoother, and make the shooting picture clearer and more stable.
| Model | Installation dimensions(mm) |
Dimensions (mm) |
|||||||
| B | M | d | A | C | Ø1 | Ø2 | H1 | H2 | |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25/40/50 | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical data sheet
| Model |
Nominal load (N)
|
Load range |
Natural frequency ≤(Hz) |
Loading working height H0±1(mm) |
Limit displacement(mm) | Impact resistance test |
Single weight ≤(g) |
Service life | ||
| Vertical | standard | |||||||||
| above | under | |||||||||
| δ1 | δ2 | δ3 | ||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 100g | 380 | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||||
| JMZ-TK-7A | 70 | 60～80 | ||||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||||
| JMZ-TK1-25 | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 60g | 1100 | |
| JMZ-TK1-40 | 400 | 300～480 | ||||||||
| JMZ-TK1-50 | 500 | 400～600 | ||||||||
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
