Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JMZ-TK-5A

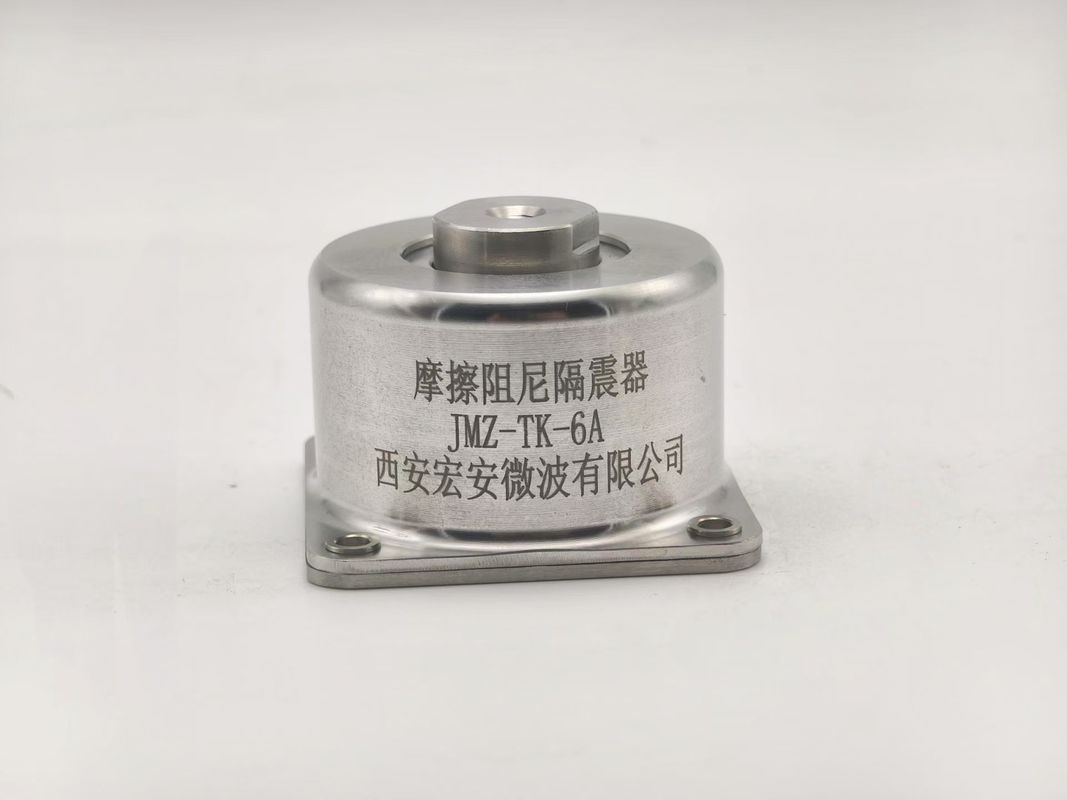

JMZ-TK Series
In the modern industrial field, vibration problems have always been one of the key factors affecting the stable operation and longevity of equipment. In order to solve this problem, Xi'an Hoan Microwave Co., Ltd. launched the JMZ-TK series friction damper, which quickly became the new favorite in the field of industrial vibration protection with its unique design and excellent performance.
In addition to their high load capacity, the JMZ-TK series friction dampers are also known for their excellent spatial adaptability. Its compact design and compact size make it easy to install in environments where space is limited. This feature makes the JMZ-TK series ideal for applications where installation space is strictly limited, such as narrow mechanical cabins, complex electronics interiors, etc.
The application of JMZ-TK series friction dampers in the military field is particularly prominent. It is used in the anti-vibration system of key equipment such as military vehicles, armored vehicles, and missile launchers, effectively improving the stability and reliability of these equipment in extreme environments. The JMZ-TK series also plays an important role in highway construction, and it is installed in bridges, tunnels, and other structures to reduce the impact of traffic vibration on the structure and improve the safety and durability of the road.
The JMZ-TK series vibration isolator of Xi'an Hoan Microwave Co., Ltd. has become an indispensable and important equipment in the industrial field due to its excellent vibration isolation performance, wide application range, high cost performance, good compatibility and scalability. It can not only effectively solve the vibration and noise problems during the operation of microwave equipment, but also provide high-quality solutions for other occasions that require vibration isolation. In the future development, with the continuous progress of industrial technology and the continuous change of market demand, it is believed that JMZ-TK series vibration isolators will continue to maintain their leading position and contribute more to the prosperity and development of the industrial field.
| Model | Installation dimensions(mm) |
Dimensions (mm) |
|||||||
| B | M | d | A | C | Ø1 | Ø2 | H1 | H2 | |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25/40/50 | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical data sheet
| Model |
Nominal load (N)
|
Load range |
Natural frequency ≤(Hz) |
Loading working height H0±1(mm) |
Limit displacement(mm) | Impact resistance test |
Single weight ≤(g) |
Service life | ||
| Vertical | standard | |||||||||
| above | under | |||||||||
| δ1 | δ2 | δ3 | ||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 100g | 380 | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||||
| JMZ-TK-7A | 70 | 60～80 | ||||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||||
| JMZ-TK1-25 | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 60g | 1100 | |
| JMZ-TK1-40 | 400 | 300～480 | ||||||||
| JMZ-TK1-50 | 500 | 400～600 | ||||||||
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
