Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JMZ-TK-4A
JMZ-TK Series

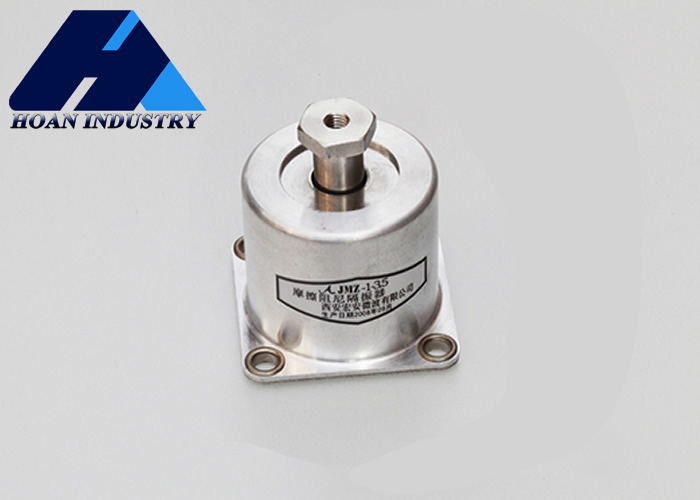

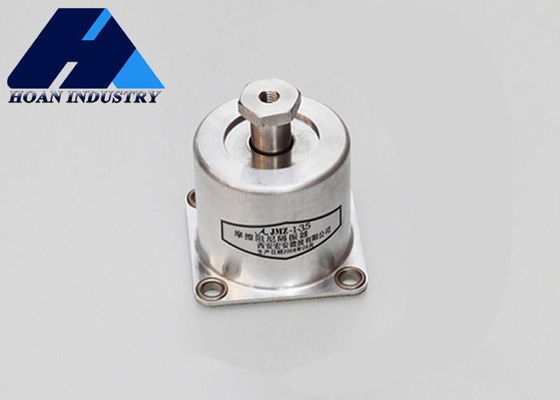

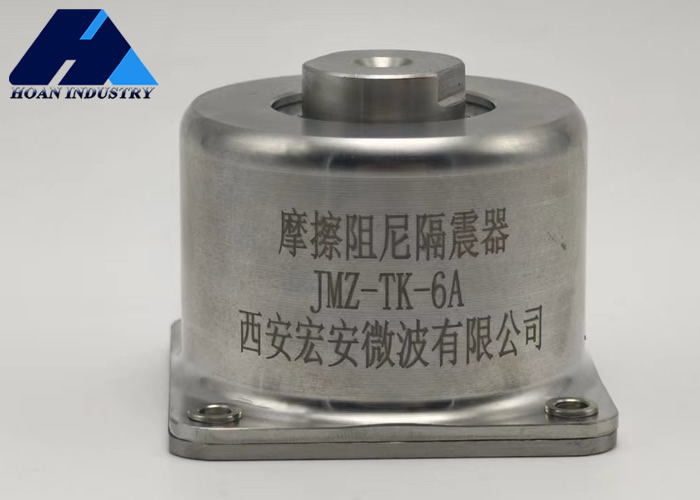

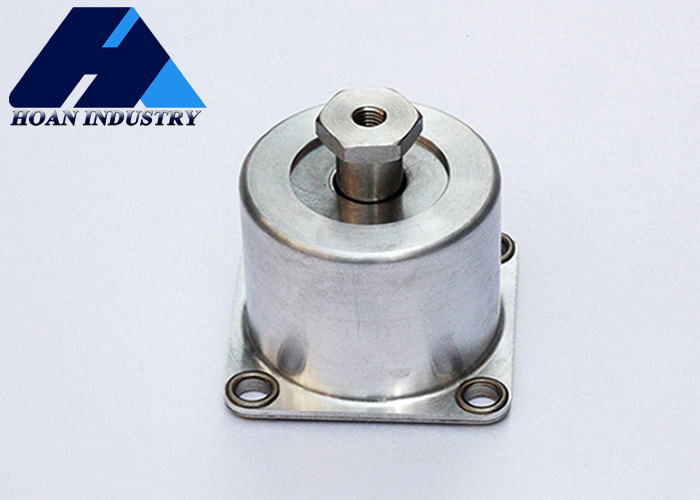

JMZ-TK series vibration isolator is one of the star products of Xi'an Hoan Microwave Co., Ltd. As a high-tech enterprise focusing on the R&D, production and sales of vibration damping technology, Xi'an Hoan Microwave Co., Ltd. has been committed to providing customers with high-quality, efficient and reliable vibration reduction solutions. As the company's flagship product, JMZ-TK series vibration isolator equipment not only inherits the company's technical genes, but also performs well in practical applications, and has won the recognition and trust of our customers.
The dampers inherit the significant advantages of the JMZ series with a wide range of maximum static loads, ranging from 2.5kg to 60kg, which allows them to be precisely adapted to a wide range of precision equipment and systems. Whether it's a meticulous medical testing instrument, a highly sophisticated semiconductor manufacturing device, or a small and compact embedded electronic device, the JMZ-TK series can act as a loyal guard, effectively resisting vibration interference, ensuring stable operation of equipment, accurate and reliable inspection data, continuous manufacturing process, and accurate electronic signal transmission.
In the transportation industry, whether it's a high-speed rail train, a long-distance freight truck, or a ship sailing in rough seas, the JMZ-TK series friction dampers are all in use. It can reduce the impact of track vibration on the comfort of passengers in the carriage during train driving, reduce the damage of goods caused by uneven road surface during the transportation of freight vehicles, and reduce the impact of waves on ship equipment, prolong the service life of equipment and improve navigation safety.
| Model | Installation dimensions(mm) |
Dimensions (mm) |
|||||||
| B | M | d | A | C | Ø1 | Ø2 | H1 | H2 | |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25/40/50 | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical data sheet
| Model |
Nominal load (N)
|
Load range |
Natural frequency ≤(Hz) |
Loading working height H0±1(mm) |
Limit displacement(mm) | Impact resistance test |
Single weight ≤(g) |
Service life | ||
| Vertical | standard | |||||||||
| above | under | |||||||||
| δ1 | δ2 | δ3 | ||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 100g | 380 | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||||
| JMZ-TK-7A | 70 | 60～80 | ||||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||||
| JMZ-TK1-25 | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 60g | 1100 | |
| JMZ-TK1-40 | 400 | 300～480 | ||||||||
| JMZ-TK1-50 | 500 | 400～600 | ||||||||
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
