JMZ-TK Series

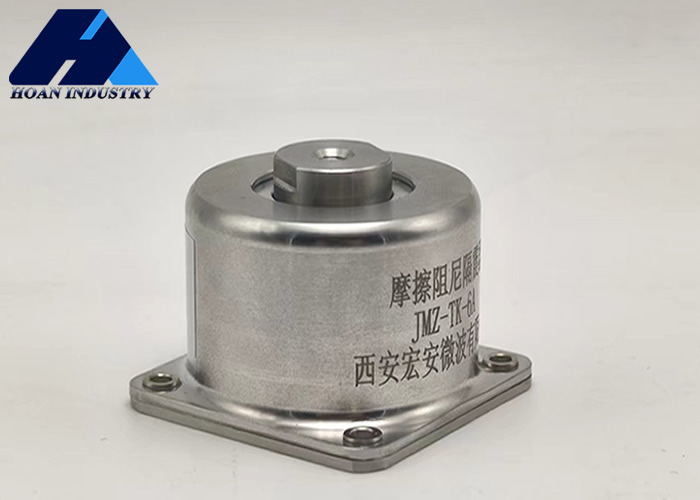

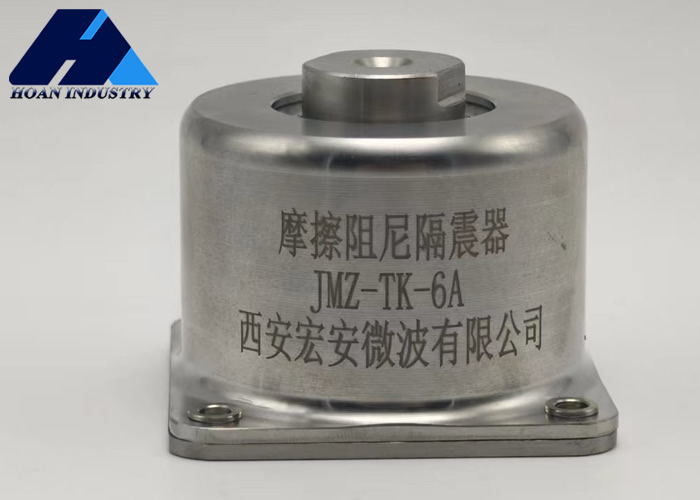

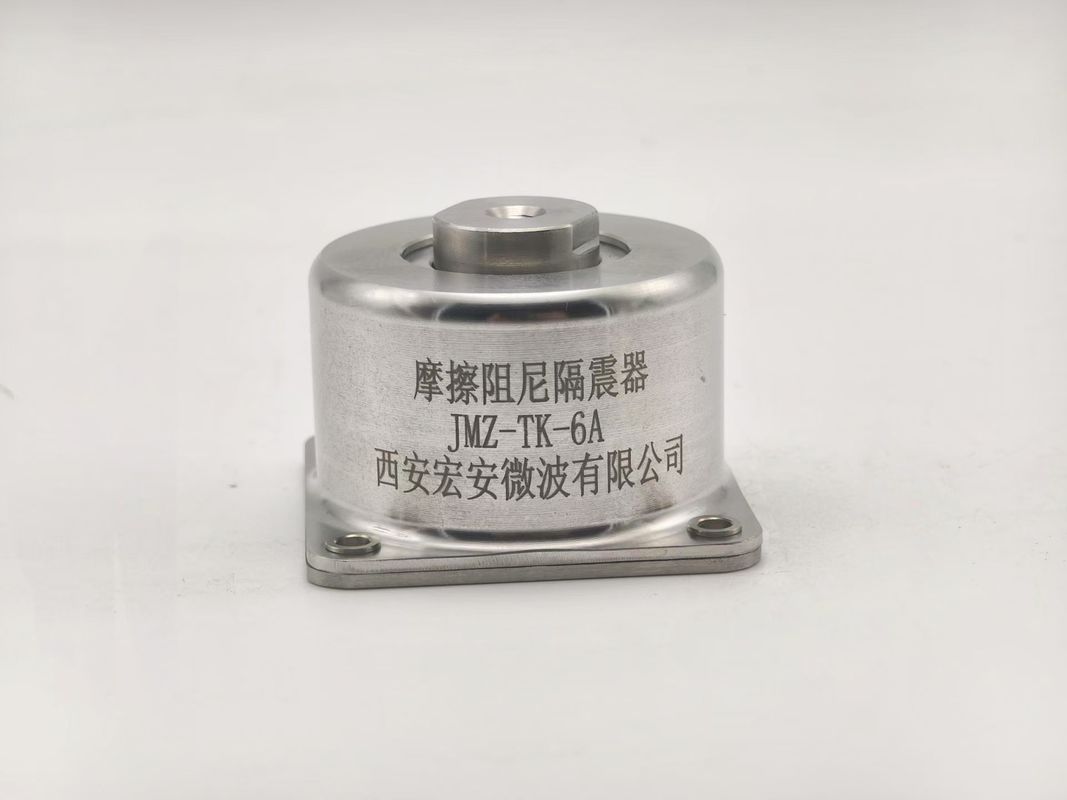

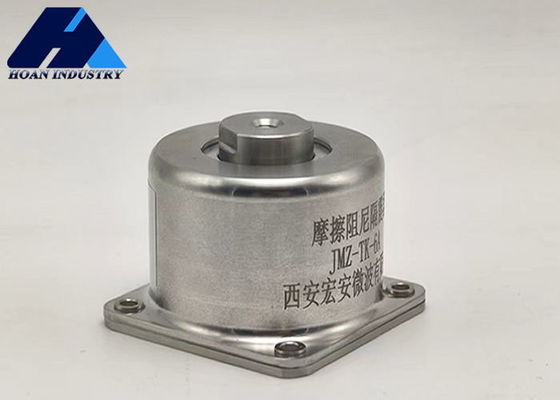

In the modern industrial field, vibration problems have always been one of the key factors affecting the stable operation and longevity of equipment. In order to solve this problem, Xi'an Hoan Microwave Co., Ltd. launched the JMZ-TK series friction damper, which quickly became the new favorite in the field of industrial vibration protection with its unique design and excellent performance.
The maximum static load range of the JMZ-TK series friction dampers is from 2.5 kg to 50 kg, which allows it to meet the vibration protection requirements of equipment of different sizes and needs. Whether it's precision equipment, embedded electronic systems, or other vibration-sensitive devices, the JMZ-TK series provides an effective vibration isolation solution
In practical applications, JMZ-TK series friction dampers have shown a wide range of applicability. It is widely used in military communications enterprises, scientific research institutions, and higher education institutions. In these areas, the JMZ-TK series not only provides a stable working environment for precision instruments, but also provides reliable support for research and teaching activities.
Overall, the JMZ-TK series vibration isolator of Xi'an Hoan Microwave Co., Ltd. is a vibration isolation product with excellent performance and wide application. Although slightly more expensive, its excellent vibration isolation properties and wide range of applications make it the first choice for many industrial sectors. When selecting and using JMZ-TK series vibration isolators, users should fully consider their advantages and disadvantages, and choose according to their actual needs to ensure the best use effect.
| Model | Installation dimensions(mm) |
Dimensions (mm) |
|||||||
| B | M | d | A | C | Ø1 | Ø2 | H1 | H2 | |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25/40/50 | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical data sheet
| Model |
Nominal load (N)
|
Load range |
Natural frequency ≤(Hz) |
Loading working height H0±1(mm) |
Limit displacement(mm) | Impact resistance test |
Single weight ≤(g) |
Service life | ||
| Vertical | standard | |||||||||
| above | under | |||||||||
|
δ1 |
δ2 |
δ3 |
||||||||
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 100g | 380 | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||||
| JMZ-TK-7A | 70 | 60～80 | ||||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||||
| JMZ-TK1-25 | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 60g | 1100 | |
| JMZ-TK1-40 | 400 | 300～480 | ||||||||
| JMZ-TK1-50 | 500 | 400～600 | ||||||||
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
