Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GX-60A(N)
Video
Video
GX Series

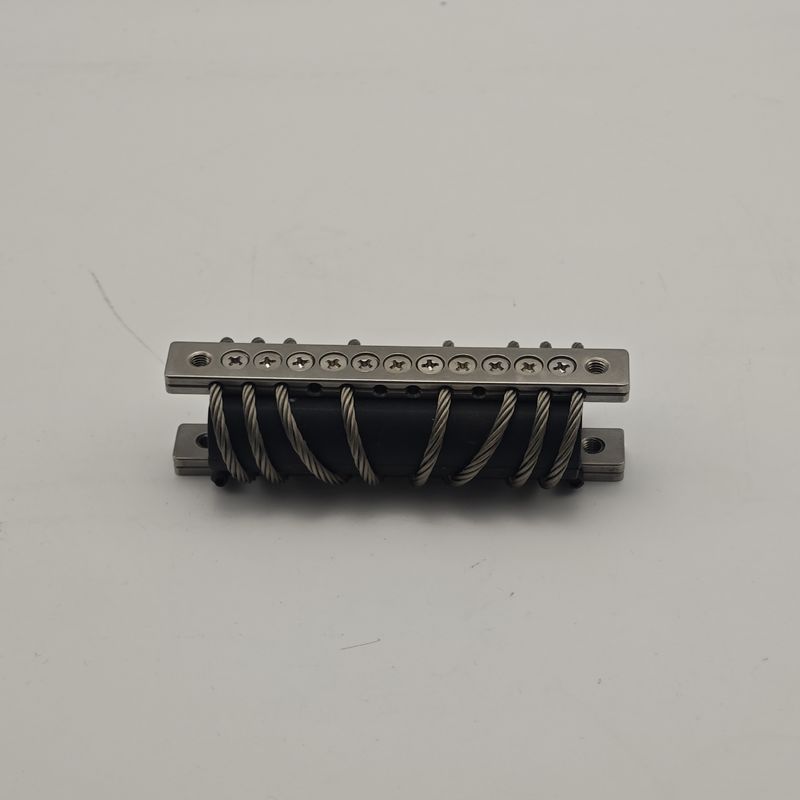

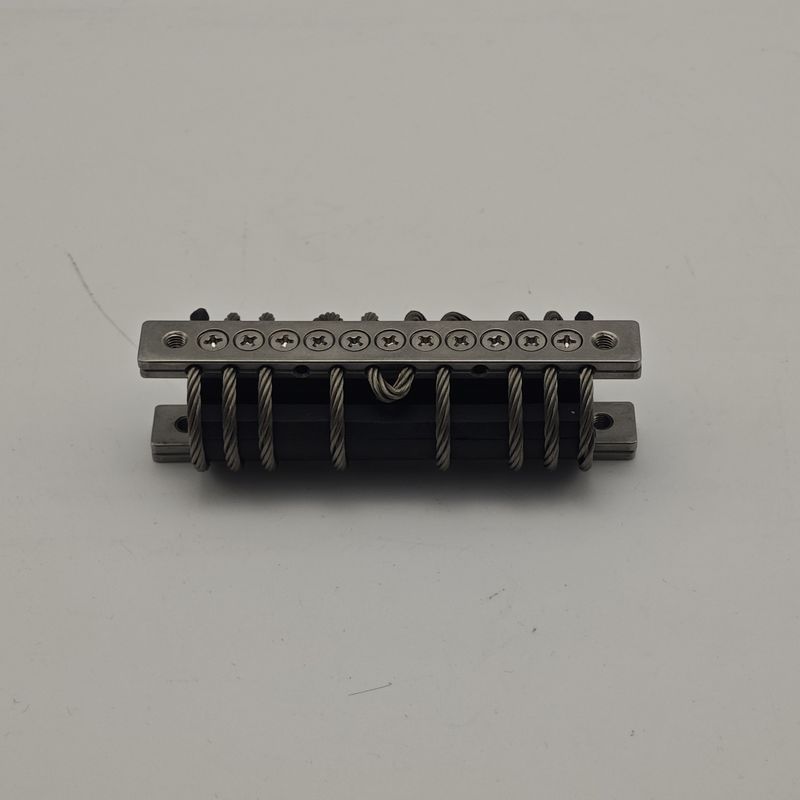

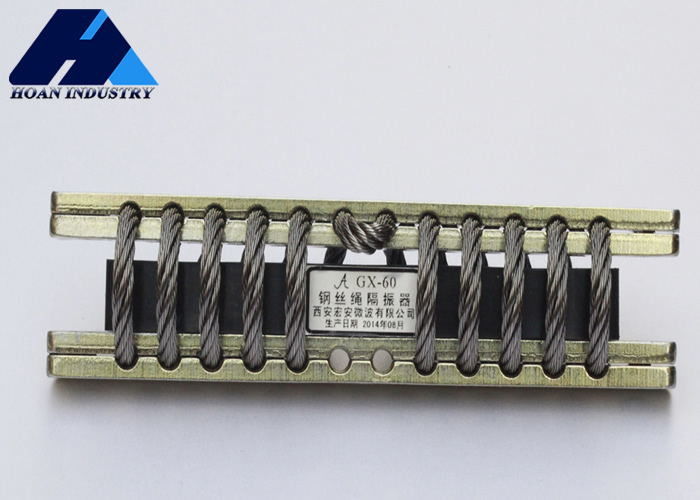

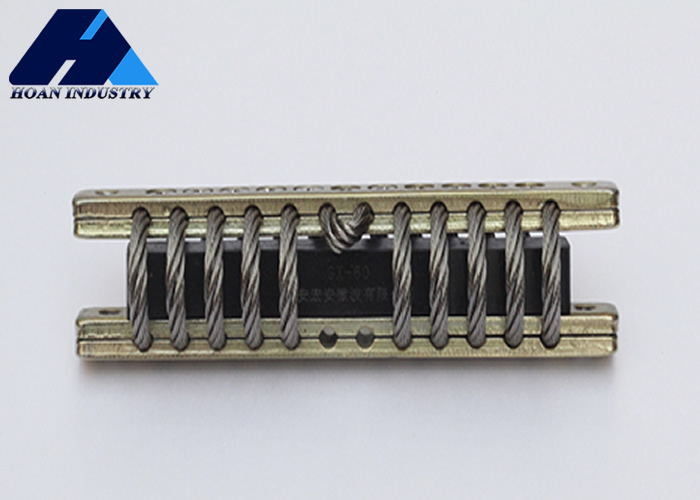

GX-60AN New Rubber Pad Anti-Strength Impact Wire Rope Vibration Isolator: The "Shock Absorber Master" in the Industry
In all areas of industrial production, vibration has always been an important factor affecting the stable operation of equipment and product quality. In order to solve this problem, engineers have developed a variety of vibration isolators, among which the GX-60AN new rubber pad anti-strong impact steel wire rope vibration isolator has attracted attention for its excellent performance.
In the field of transportation, the GX-60AN also plays an important role. Whether it's a high-speed train, a subway or a car, vibration problems have a direct impact on ride comfort and driving safety. The GX-60AN vibration isolator is used in the key components of these vehicles, such as suspension systems, wheel axles, etc. For example, in a subway construction project in a city, the GX-60AN vibration isolator was installed on the track support structure, which successfully reduced the vibration generated by the train during operation and improved the comfort of passengers.
In addition, GX-60AN has been widely used in industrial production. In machinery manufacturing, petrochemical and other industries, vibration control of large equipment and pipelines is the key to ensuring production safety and improving product quality. GX-60AN vibration isolators are used in critical parts of these equipment, such as engine mounts, reactors, etc. For example, in a reactor installation project at a chemical company, the GX-60AN vibration isolator was used to fix the reactor, successfully suppressing the vibrations generated during the reaction process, avoiding equipment damage and production accidents.
GX-60AN new rubber pad anti-strong impact wire rope vibration isolator has become the "shock absorption master" in the industry with its excellent performance and wide range of applications. It not only improves the stability of the equipment and structure, but in many cases, significantly increases the efficiency and service life of the system. With the continuous progress of science and technology and the continuous development of industry, the application prospect of GX-60AN vibration isolator will be broader, contributing to the construction of a safer and more efficient modern industrial society.
Technical Parameter Table
| Technical Parameter | 型号 | |
| Pz Nominal Load(N) | GX-A | GX-AN |
| Deflection | 10～60 | |
| Resonance Magnification | Pressed down | |
| High Frequency Efficiency | ≤4 | |
| Working Temperature | ≥95 | |
| Shock(Ks) | 30g/11ms | 100g/6ms |
| Peak Response G | ≤3.5Km/s2 | |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
