Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GX-10A(N)
Video
Video
GX Series

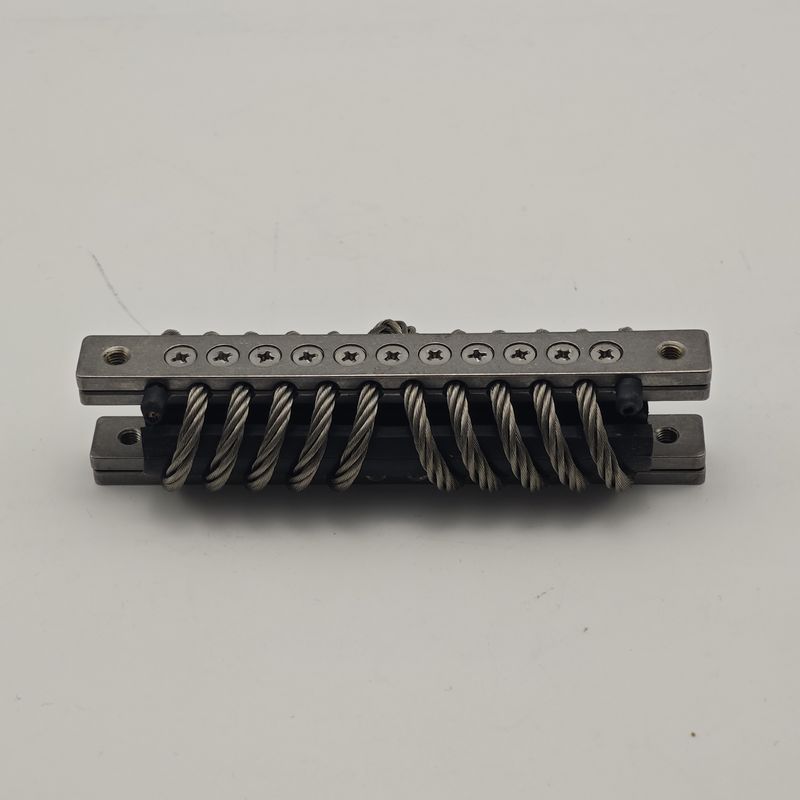

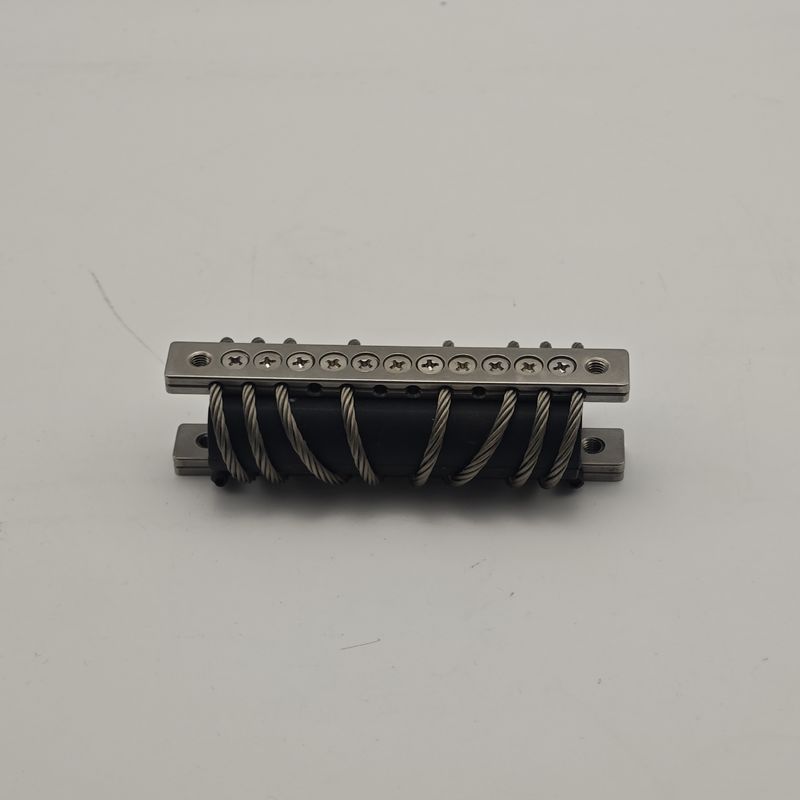

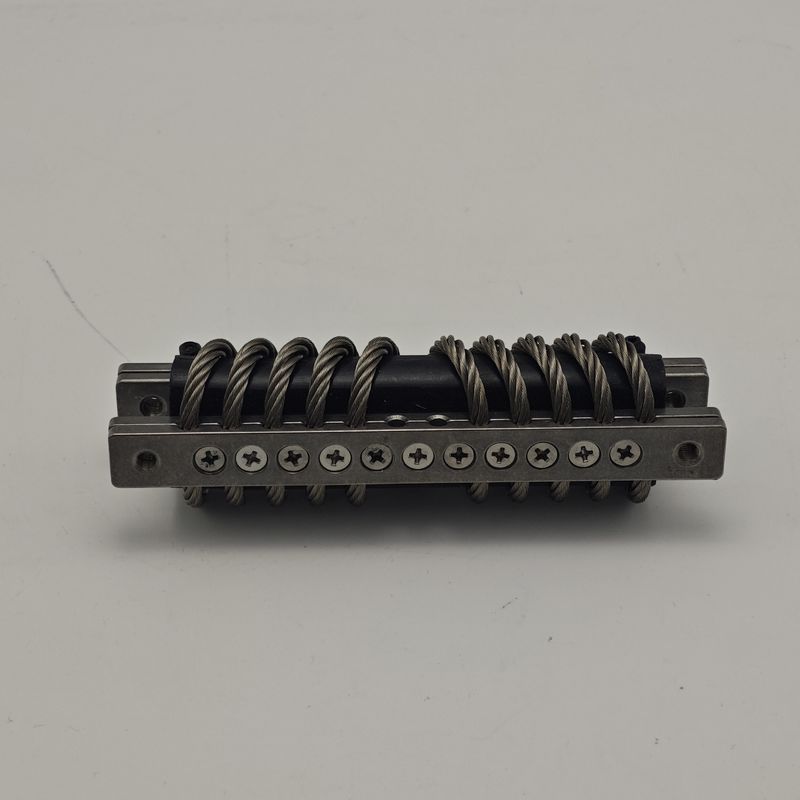

GX-10AN new rubber pad anti-strong impact steel wire rope vibration isolator is widely used in modern industrial fields, and its excellent vibration isolation performance and adaptability make it an indispensable part of many equipment and systems. The following will introduce the application fields and specific cases of GX-10AN vibration isolator in detail to show its important role in practical engineering.
GX-10AN vibration isolator is particularly prominent in the field of military equipment. In modern warfare, the mobility, protection and reliability of military equipment are of paramount importance. The GX-10AN isolator effectively protects key weapon systems such as armored vehicles and self-propelled guns with its strong impact resistance. For example, in a certain type of main battle tank, the GX-10AN vibration isolator is installed at the junction between the turret and the hull, which successfully absorbs the strong impact force generated during firing, and significantly improves the stability and shooting accuracy of the tank. In addition, the isolator is used in aerospace applications, such as missile launchers and satellite platforms, to ensure the stability and safety of the launch process.
GX-10AN new rubber pad strong impact steel wire rope vibration isolator has been widely used in many fields such as military equipment, transportation, industrial production and construction engineering due to its excellent vibration isolation performance. It not only improves the stability and safety of equipment and structures, but in many cases, significantly increases the efficiency and service life of the system. With the continuous progress of science and technology, the application prospect of GX-10AN vibration isolator will be broader, contributing to the construction of a safer and more efficient modern society.
Technical Parameter Table
| Technical Parameter | 型号 | |
| Pz Nominal Load(N) | GX-A | GX-AN |
| Deflection | 10～60 | |
| Resonance Magnification | Pressed down | |
| High Frequency Efficiency | ≤4 | |
| Working Temperature | ≥95 | |
| Shock(Ks) | 30g/11ms | 100g/6ms |
| Peak Response G | ≤3.5Km/s2 | |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
