Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR3-18D-A
Video
Video
GR3 Series
In today's era of high-quality images, whether it's filmmaking, documentary filming, or advertising shooting, stable and high-quality shooting equipment is essential. Among the many shooting aids, the GR series precision spring shock absorbers stand out as an excellent choice for building various shooting support systems.

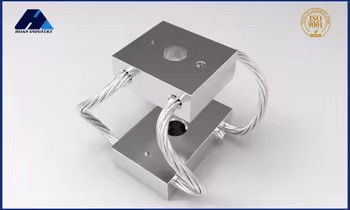

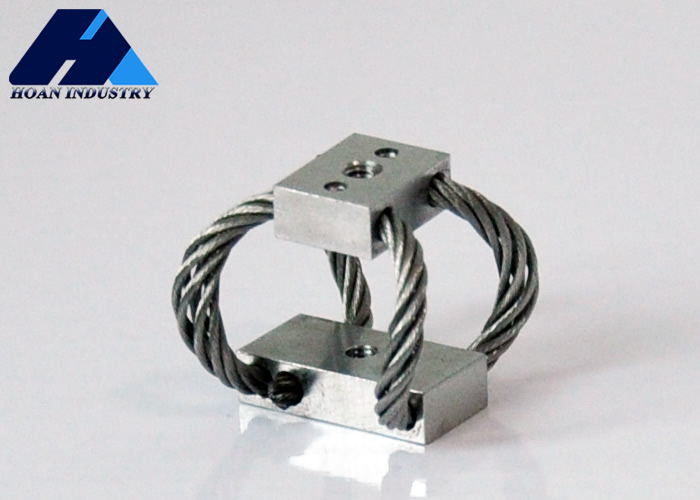

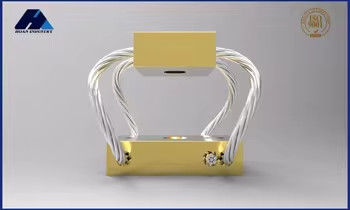

The GR3-18D-A precision spring shock absorber is a representative product of the GR3 series of shock absorbers. It is carefully designed for the special needs of camera stabilization platforms or camera hangers. Whether it's in the complex environment of a film or television set, or on a vehicle that is shooting on the move, it performs well.
In film and television shooting, various vibrations are often encountered, especially when shooting on the move. For example, in a vehicle filming a chase scene, or in a vehicle filming on a rough road, the camera is highly susceptible to bumps in the road. The GR3-18D-A precision spring shock absorber has a maximum static load of up to 18N, a feature that allows it to effectively cope with these complex vibration situations. It acts as a "guardian" of the camera, accurately absorbing the various tensions generated by the camera during the movement of the vehicle.
In the future, with the continuous development of shooting technology, the requirements for the stability of shooting equipment will become higher and higher. The GR3 series precision spring shock absorbers will also continue to improve and innovate to adapt to more complex shooting environments and higher shooting requirements. It will continue to shine in the field of shooting equipment and contribute to the development of the imaging industry.
| No. | Model | Max Static (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR3-30D-A | 30 | 7.1 | 24 | 12 |
| 2 | GR3-22D-A | 22 | 10.4 | 12 | 6.1 |
| 3 | GR3-18D-A | 18 | 14.2 | 8.4 | 3.5 |
| 4 | GR3-11D-A | 11 | 19.3 | 5.8 | 1.9 |
| No. | Model | Max Static (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR3-30D-A | 12 | 9.4 | 14 | 5.3 |
| 2 | GR3-22D-A | 10 | 13.2 | 8.8 | 3.2 |
| 3 | GR3-18D-A | 6.7 | 17.3 | 5.8 | 1.8 |
| 4 | GR3-11D-A | 4.4 | 22.9 | 3.5 | 0.9 |
| No. | Model | Max Static (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR3-30D-A | 12 | 8.4 | 6.1 | 6.1 |
| 2 | GR3-22D-A | 8.5 | 11.9 | 3.5 | 3.5 |
| 3 | GR3-18D-A | 6.2 | 15.5 | 1.8 | 1.8 |
| 4 | GR3-11D-A | 4.4 | 20.6 | 1.1 | 1.1 |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
