Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR2-6.7D-A
Video
Video
GR2 Series

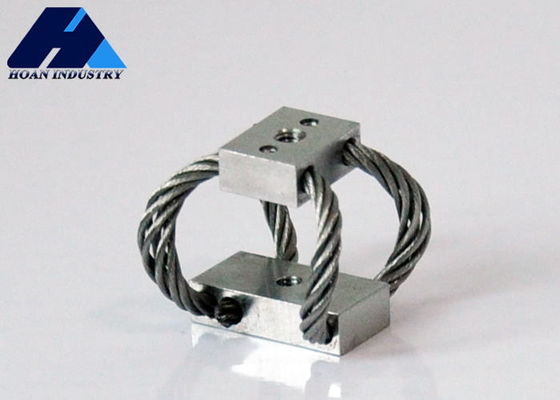

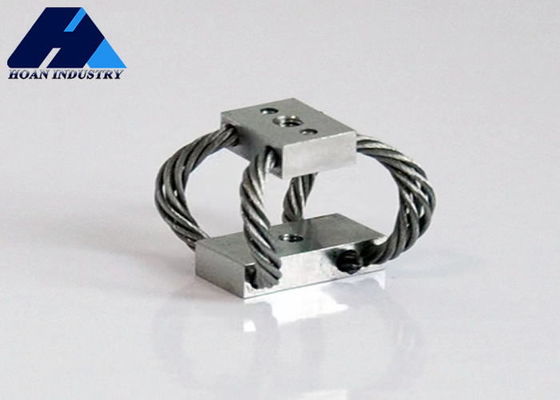

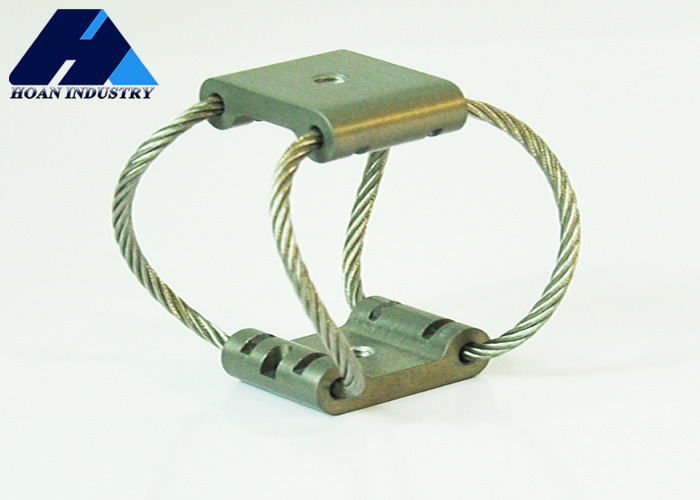

The GR2-6.7D-A adopts advanced vibration isolation technology, which can effectively absorb and reduce the vibration generated by the camera during movement. The application of this technology allows photographers to obtain a smoother and clearer picture when shooting.
The spring and damping system inside the shock absorber are precisely calculated and optimized to adjust to different shooting conditions and camera weight for optimal stabilization.
The GR2-6.7D-A is designed with the diversity and harshness of the environment in mind. It is made of high-quality stainless steel material, which not only guarantees the structural strength and durability of the shock absorber, but also has good waterproof and anti-corrosion properties. The GR2-6.7D-A retains its performance even in harsh weather conditions, such as rain, snow or humidity, ensuring that photographers can get stable results in any environment.
The GR2-6.7D-A is designed with the user's ease of operation in mind. Its installation and adjustment process is simple and convenient, and photographers can quickly mount it on the camera or stabilizer and adjust the angle and position of the shock absorber as needed. This flexibility allows photographers to easily cope with different shooting scenarios, whether they are handheld or fixed, to get the best results.
In addition to photographic equipment, GR series isolators are also widely used in aviation equipment, communication equipment, electronic sensing equipment, mobile electronic equipment and other fields. Its stability and durability make it an indispensable part of these areas.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR2-12D-A | 12 | 5.8 | 11 | 6.1 |
| 2 | GR2-9.3D-A | 9.3 | 8.4 | 8.8 | 4.0 |
| 3 | GR2-6.7D-A | 6.7 | 11.7 | 5.3 | 1.9 |
| 4 | GR2-4.9D-A | 4.9 | 15.7 | 3.5 | 1.2 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR2-12D-A | 5.8 | 8.1 | 6.1 | 2.8 |
| 2 | GR2-9.3D-A | 4.9 | 10.9 | 5.3 | 1.9 |
| 3 | GR2-6.7D-A | 3.3 | 14.5 | 3.2 | 1.0 |
| 4 | GR2-4.9D-A | 2.2 | 19.1 | 1.9 | 0.5 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR2-12D-A | 5.6 | 7.4 | 3.0 | 3.0 |
| 2 | GR2-9.3D-A | 4.0 | 9.9 | 1.8 | 1.8 |
| 3 | GR2-6.7D-A | 2.9 | 13.0 | 1.1 | 1.1 |
| 4 | GR2-4.9D-A | 2.0 | 17.3 | 0.5 | 0.5 |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
