Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR1-1.3D-A
Video
Video
GR1 Series

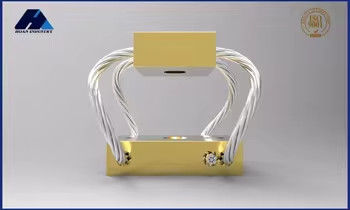

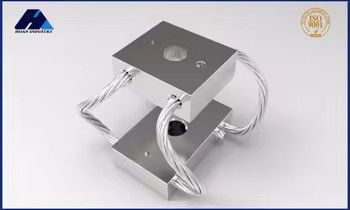

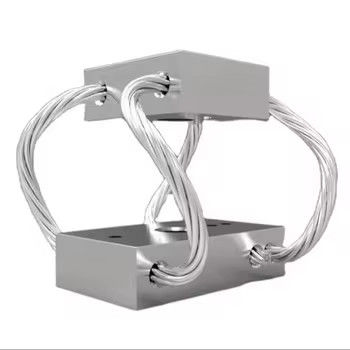

Xi'an Hoan Microwave Co., Ltd. GR1 series aerial camera shock absorber: professional-grade stability, aerial photography to a new height In modern photography and video production, consistent image quality is crucial. Whether you're shooting on the ground or from the air, any slight vibration can cause blurry images and affect the overall quality of your work. In order to solve this problem,Xi'an Hoan Microwave Co., Ltd. has launched the GR1 series of aerial camera shock absorbers, which can not only effectively reduce the vibration of the camera during motion, but also provide excellent stability, making it an ideal choice for professional photographers and videographers.
The GR1 series includes four models with maximum static loads ranging from 1.3N (0.13kg) to 3.3N (0.34kg) to meet the stability needs of cameras of different weights. Its unique design allows it to smoothly eliminate small rhythmic vibrations for travel shots, and it is able to suppress sudden, unexpected vibrations that can occur when stones or potholes can occur. This improved stability allows photographers to obtain high-quality images in complex shooting environments.
The GR1 series shock absorbers are also very easy to install and use. It is equipped with a quick-release system that allows users to quickly change cameras between different shooting scenarios. In addition, the shock absorber has a simple and elegant exterior design, which can be perfectly integrated with various cameras and stabilizers, which is both practical and beautiful.
Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorber is a professional-grade product that combines stability, durability and ease of use. It not only meets the high standards of professional photographers and videographers, but also provides a high-quality shooting experience for a wide range of photography enthusiasts. With the continuous development of science and technology, we have reason to believe that Xi'an Hoan Microwave Co., Ltd. will continue to innovate and bring more advanced products and solutions to the photography and video production industry.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 3.3 | 6.4 | 3.9 | 1.9 |
| 2 | GR1-2.4D-A | 2.4 | 8.4 | 2.8 | 1.2 |
| 3 | GR1-1.8D-A | 1.8 | 11.9 | 1.8 | 0.6 |
| 4 | GR1-1.3D-A | 1.3 | 15 | 1.3 | 0.4 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | GR1-2.4D-A | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | GR1-1.8D-A | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 18.3 | 0.5 | 0.1 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.1 | 7.9 | 0.7 | 0.7 |
| 2 | GR1-2.4D-A | 0.9 | 9.9 | 0.4 | 0.4 |
| 3 | GR1-1.8D-A | 0.7 | 13.2 | 0.3 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 16.3 | 0.1 | 0.1 |
