Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR1-2.4D-A
Video
Video
GR1 Series
Xi'an Hoan Microwave Co., Ltd. GR1 series aerial camera shock absorber: professional-grade stability, aerial photography to a new height In modern photography and video production, consistent image quality is crucial. Whether you're shooting on the ground or from the air, any slight vibration can cause blurry images and affect the overall quality of your work. In order to solve this problem,Xi'an Hoan Microwave Co., Ltd. has launched the GR1 series of aerial camera shock absorbers, which can not only effectively reduce the vibration of the camera during motion, but also provide excellent stability, making it an ideal choice for professional photographers and videographers.
Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorber is a camera shock absorber designed for single use or architectural camera stabilizer. Its main function is to absorb the tension of the camera when the vehicle is moving, ensuring that the captured image is stable and clear. Made from high-strength stainless steel, this shock absorber is waterproof, corrosion-resistant, and durable, allowing it to work in a wide range of harsh environments.

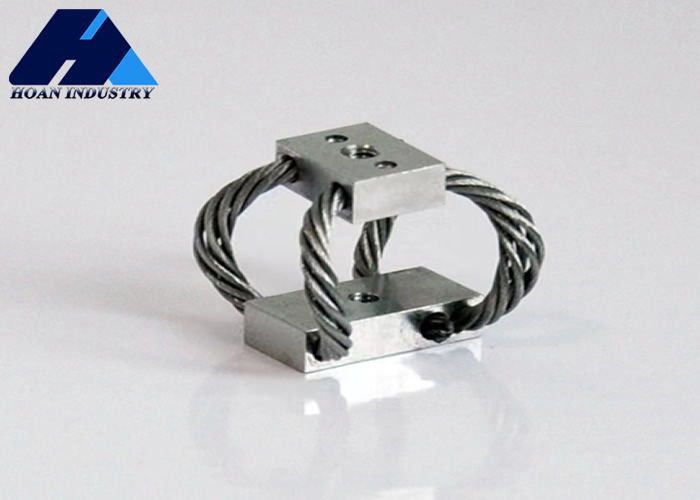

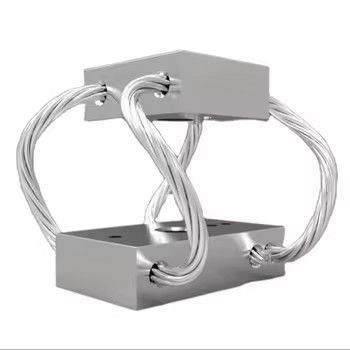

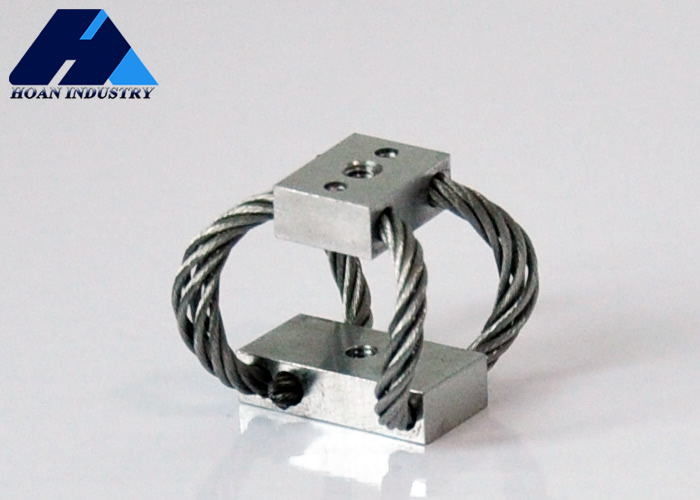

The working principle of the GR1 series of aerial camera shock absorbers is based on physical shock absorption technology. The inside of the shock absorber is wound around two mounting rods by wire ropes with a diameter of 1.2 mm, which can react quickly when subjected to vibration, converting the vibration energy into heat energy, so as to achieve the effect of shock absorption. This design not only improves the stability of the shock absorber, but also extends its service life.
Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorber is a professional-grade product that combines stability, durability and ease of use. It not only meets the high standards of professional photographers and videographers, but also provides a high-quality shooting experience for a wide range of photography enthusiasts. With the continuous development of science and technology, we have reason to believe that Xi'an Hoan Microwave Co., Ltd. will continue to innovate and bring more advanced products and solutions to the photography and video production industry.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 3.3 | 6.4 | 3.9 | 1.9 |
| 2 | GR1-2.4D-A | 2.4 | 8.4 | 2.8 | 1.2 |
| 3 | GR1-1.8D-A | 1.8 | 11.9 | 1.8 | 0.6 |
| 4 | GR1-1.3D-A | 1.3 | 15 | 1.3 | 0.4 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | GR1-2.4D-A | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | GR1-1.8D-A | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 18.3 | 0.5 | 0.1 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.1 | 7.9 | 0.7 | 0.7 |
| 2 | GR1-2.4D-A | 0.9 | 9.9 | 0.4 | 0.4 |
| 3 | GR1-1.8D-A | 0.7 | 13.2 | 0.3 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 16.3 | 0.1 | 0.1 |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
