Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR1-3.3D-A
Video
Video
GR1 Series
Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorbers are designed to meet this need. Not only is it able to absorb all kinds of vibrations that the camera encounters during drone flight, but it also provides excellent stability, allowing photographers to focus on their creations without worrying about blurry images caused by vibrations.

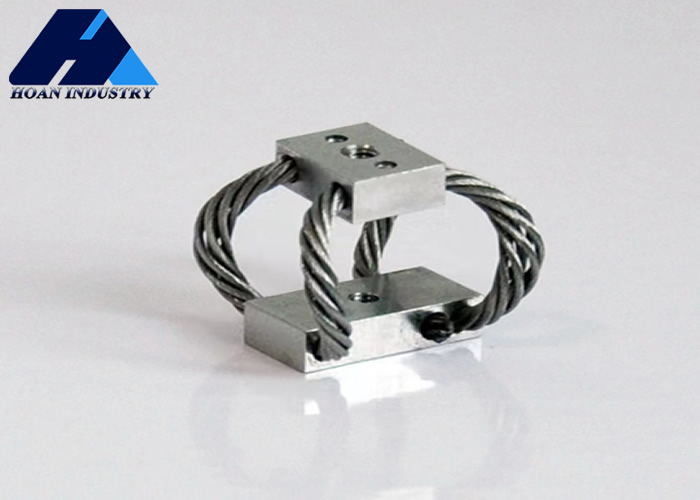

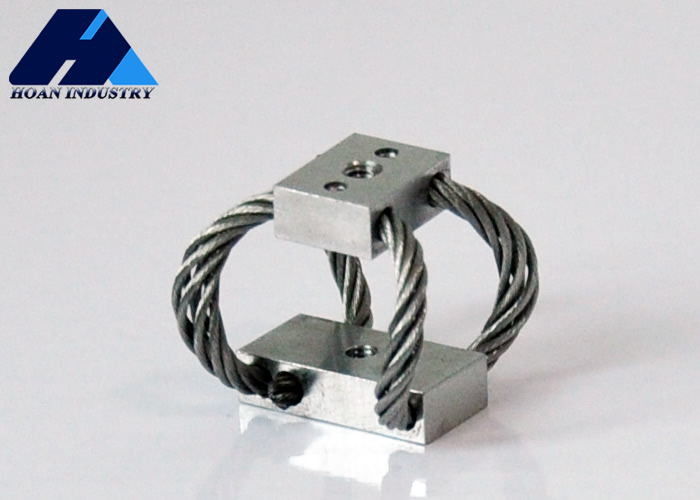

The GR1 series shock absorbers are designed to be simple and efficient. It uses high-strength stainless steel material, which not only ensures the durability of the shock absorber, but also has good waterproof and anti-corrosion properties, allowing it to work stably under various harsh environmental conditions. The core of the shock absorber is made of a 1.2 mm diameter steel wire rope wound around two mounting rods, which ensures stability in all vibration situations.
The GR1 series shock absorbers have shown excellent performance. It smoothly eliminates small rhythmic vibrations in travel shots, while effectively dampening sudden, unexpected vibrations caused by undulating terrain such as rocks or potholes. This increased stability means that photographers can capture sharp, stable images in more complex shooting environments, whether it's high-speed moving object tracking or shooting in low-light conditions.
Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorber is not only suitable for professional drone aerial photography operation, but also suitable for amateurs. It is easy to install, no professional tools are required, just follow the instructions and the installation can be easily completed. At the same time, the appearance design of the shock absorber is simple and elegant, which can be perfectly combined with various drones and stabilizers, which not only improves the shooting effect, but also increases the overall aesthetics of the device.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 3.3 | 6.4 | 3.9 | 1.9 |
| 2 | GR1-2.4D-A | 2.4 | 8.4 | 2.8 | 1.2 |
| 3 | GR1-1.8D-A | 1.8 | 11.9 | 1.8 | 0.6 |
| 4 | GR1-1.3D-A | 1.3 | 15 | 1.3 | 0.4 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | GR1-2.4D-A | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | GR1-1.8D-A | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 18.3 | 0.5 | 0.1 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR1-3.3D-A | 1.1 | 7.9 | 0.7 | 0.7 |
| 2 | GR1-2.4D-A | 0.9 | 9.9 | 0.4 | 0.4 |
| 3 | GR1-1.8D-A | 0.7 | 13.2 | 0.3 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 16.3 | 0.1 | 0.1 |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
