Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-1276D-220B
Video
Video

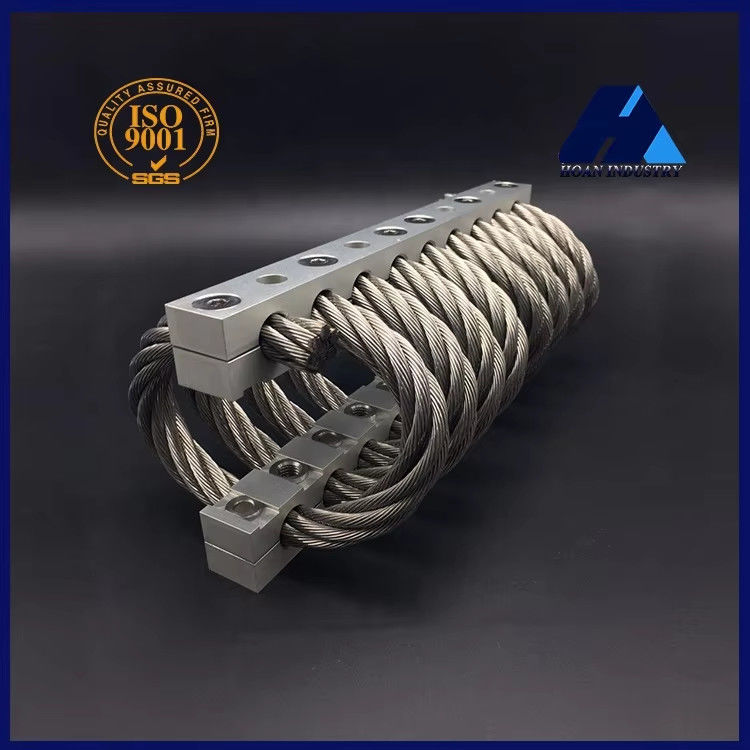

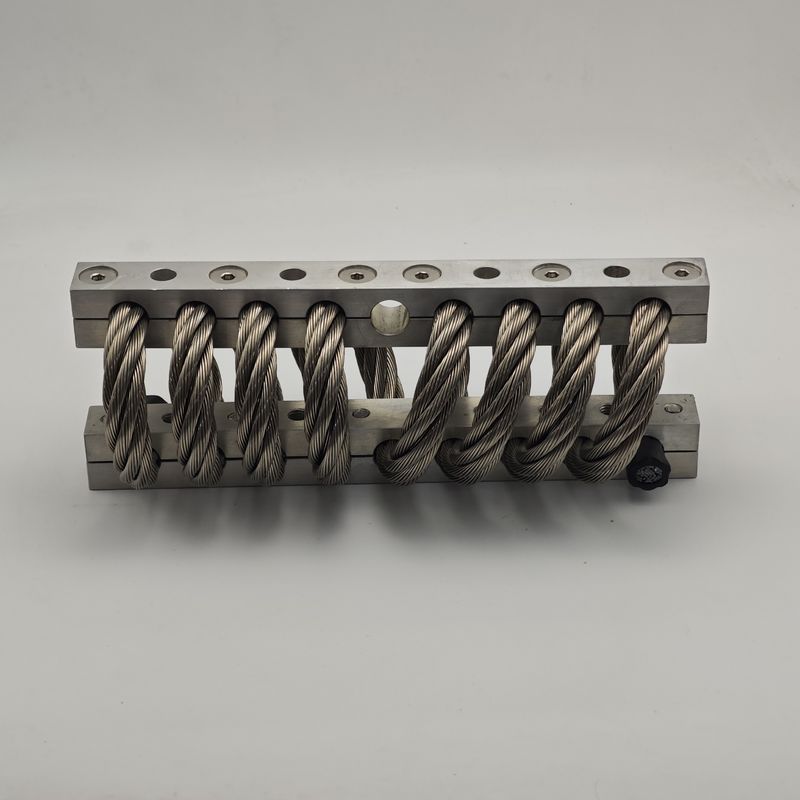

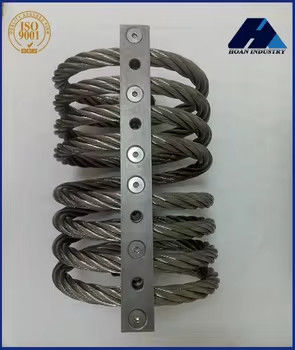

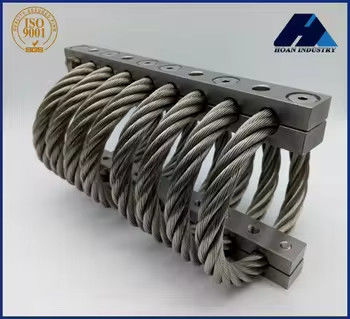

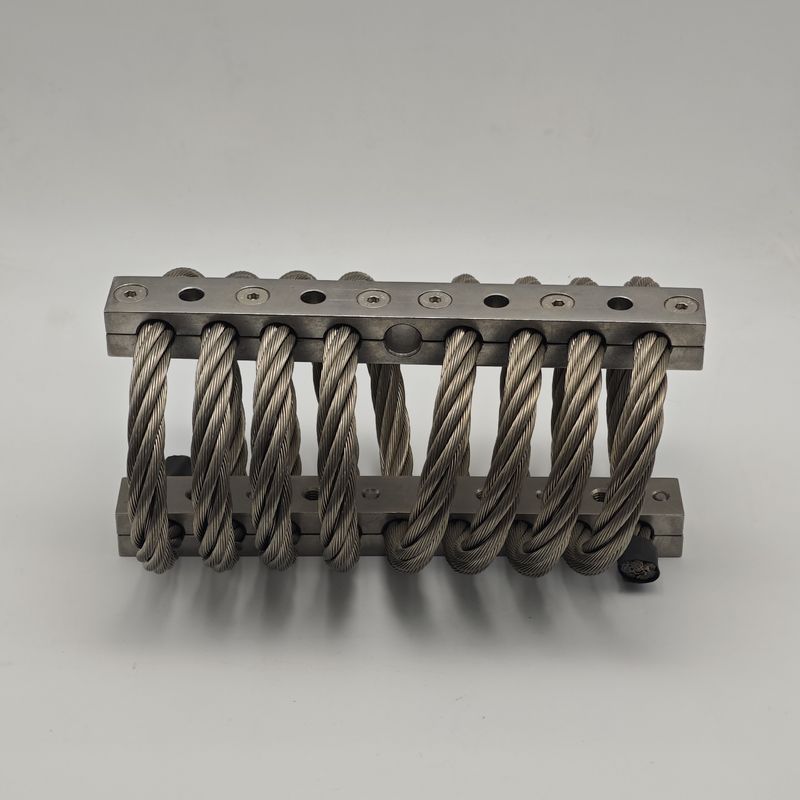

JGX-1276 Series
In the field of modern industry, with the continuous progress of technology and the increasing complexity of equipment, the requirements for the stability and reliability of the equipment operating environment are getting higher and higher. In order to meet this demand, JGX-1276 series shock absorbers came into being, which has become an indispensable and important part of many industrial equipment.
As a newly designed vibration isolator, JGX-1276 series shock absorber has a maximum static load range from 92kg to 280kg, which can adapt to the vibration damping needs of various large heavy equipment and systems. This strong carrying capacity makes the JGX-1276 series widely used in the industrial field.
JGX-1276 series shock absorbers also have excellent vibration damping performance. It adopts advanced vibration damping technology, which can effectively absorb and reduce the vibration generated during the operation of the equipment, so as to improve the stability and work efficiency of the equipment. This is undoubtedly a huge advantage for those delicate equipment that are sensitive to vibration.
JGX-1276 series shock absorber has become an indispensable and important component in the industrial field due to its excellent physical properties, excellent vibration damping performance, good adaptability, and convenient installation and maintenance characteristics. With the continuous development of science and technology and the continuous progress of industry, it is believed that JJGX-1276 series shock absorbers will show broader prospects and greater potential in future applications.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 278 | 32.0 | 716 | 352 |
| 2 | JGX-1278D-233B | 233 | 38.1 | 531 | 249 |
| 3 | JGX-1278D-220B | 220 | 43.2 | 461 | 208 |
| 4 | JGX-1278D-176B | 176 | 48.8 | 343 | 147 |
| 5 | JGX-1276D-149B | 149 | 59.9 | 256 | 103 |
| 6 | JGX-1276D-130B | 130 | 74.7 | 196 | 72 |
| 7 | JGX-1276D-115B | 115 | 85.9 | 154 | 54 |
| 8 | JGX-1276D-92B | 92 | 102.6 | 111 | 37 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 197.4 | 44.7 | 405 | 177 |
| 2 | JGX-1278D-233B | 165.7 | 52.8 | 298 | 126 |
| 3 | JGX-1278D-220B | 156.6 | 61.0 | 263 | 105 |
| 4 | JGX-1278D-176B | 124.8 | 68.6 | 194 | 74 |
| 5 | JGX-1276D-149B | 106.6 | 84.8 | 144 | 51 |
| 6 | JGX-1276D-130B | 93.1 | 105.7 | 110 | 37 |
| 7 | JGX-1276D-115B | 81.7 | 121.9 | 88 | 28 |
| 8 | JGX-1276D-92B | 63.6 | 144.8 | 62 | 19 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 152.0 | 33.0 | 221 | 221 |
| 2 | JGX-1278D-233B | 124.8 | 40.1 | 156 | 156 |
| 3 | JGX-1278D-220B | 115.7 | 45.2 | 130 | 130 |
| 4 | JGX-1278D-176B | 93.1 | 50.8 | 91 | 91 |
| 5 | JGX-1276D-149B | 61.3 | 56.9 | 60 | 60 |
| 6 | JGX-1276D-130B | 45.4 | 77.7 | 46 | 46 |
| 7 | JGX-1276D-115B | 34.1 | 90.9 | 33 | 33 |
| 8 | JGX-1276D-92B | 22.7 | 107.7 | 23 | 23 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
