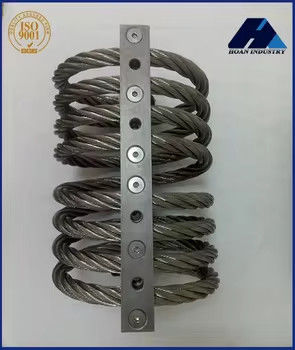

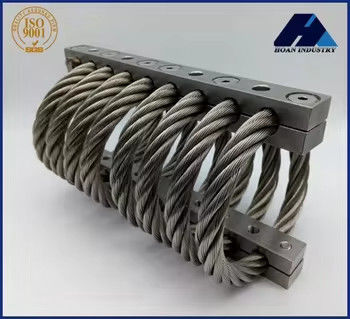

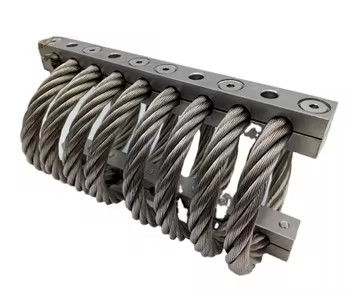

JGX-1276 Series
In the field of modern industry, with the continuous progress of technology and the increasing complexity of equipment, the requirements for the stability and reliability of the equipment operating environment are getting higher and higher. In order to meet this demand, JGX-1276 series shock absorbers came into being, which has become an indispensable and important part of many industrial equipment.
As a newly designed vibration isolator, JGX-1276 series shock absorber has a maximum static load range from 92kg to 280kg, which can adapt to the vibration damping needs of various large heavy equipment and systems. This strong carrying capacity makes the JGX-1276 series widely used in the industrial field.
This series of shock absorbers is made of high-quality stainless steel materials, which not only ensures the durability of the product, but also has excellent waterproof and anti-corrosion performance. This material choice ensures stable performance and long service life of the shock absorber even in harsh operating environments.
JGX-1276 series shock absorbers have become an indispensable and important component in the industrial field due to their excellent performance and wide range of applications. Its emergence not only improves the stability and work efficiency of the equipment, but also provides a strong guarantee for the safe production in the industrial field. With the continuous progress of science and technology and the continuous development of industry, it is believed that JGX-1276 series shock absorbers will show broader prospects and greater potential in future applications. At the same time, we also expect more companies to pay attention to and invest in the research and development and innovation of shock absorber technology, and jointly promote the development and progress of the industrial field.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 278 | 32.0 | 716 | 352 |
| 2 | JGX-1278D-233B | 233 | 38.1 | 531 | 249 |
| 3 | JGX-1278D-220B | 220 | 43.2 | 461 | 208 |
| 4 | JGX-1278D-176B | 176 | 48.8 | 343 | 147 |
| 5 | JGX-1276D-149B | 149 | 59.9 | 256 | 103 |
| 6 | JGX-1276D-130B | 130 | 74.7 | 196 | 72 |
| 7 | JGX-1276D-115B | 115 | 85.9 | 154 | 54 |
| 8 | JGX-1276D-92B | 92 | 102.6 | 111 | 37 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 197.4 | 44.7 | 405 | 177 |
| 2 | JGX-1278D-233B | 165.7 | 52.8 | 298 | 126 |
| 3 | JGX-1278D-220B | 156.6 | 61.0 | 263 | 105 |
| 4 | JGX-1278D-176B | 124.8 | 68.6 | 194 | 74 |
| 5 | JGX-1276D-149B | 106.6 | 84.8 | 144 | 51 |
| 6 | JGX-1276D-130B | 93.1 | 105.7 | 110 | 37 |
| 7 | JGX-1276D-115B | 81.7 | 121.9 | 88 | 28 |
| 8 | JGX-1276D-92B | 63.6 | 144.8 | 62 | 19 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 152.0 | 33.0 | 221 | 221 |
| 2 | JGX-1278D-233B | 124.8 | 40.1 | 156 | 156 |
| 3 | JGX-1278D-220B | 115.7 | 45.2 | 130 | 130 |
| 4 | JGX-1278D-176B | 93.1 | 50.8 | 91 | 91 |
| 5 | JGX-1276D-149B | 61.3 | 56.9 | 60 | 60 |
| 6 | JGX-1276D-130B | 45.4 | 77.7 | 46 | 46 |
| 7 | JGX-1276D-115B | 34.1 | 90.9 | 33 | 33 |
| 8 | JGX-1276D-92B | 22.7 | 107.7 | 23 | 23 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
