Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0958D-43A
Video
Video
JGX-0958 Series

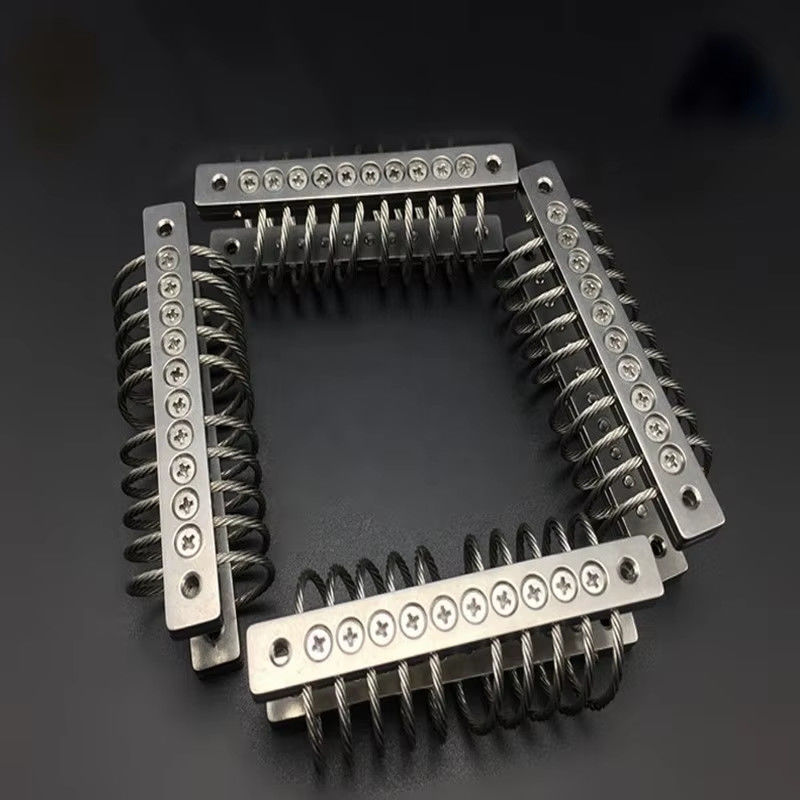

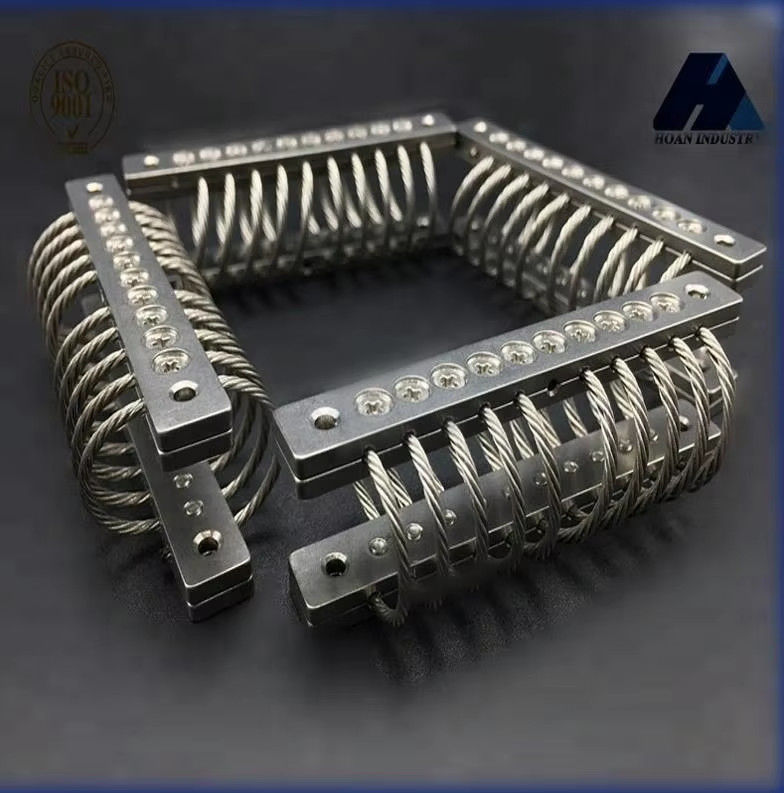

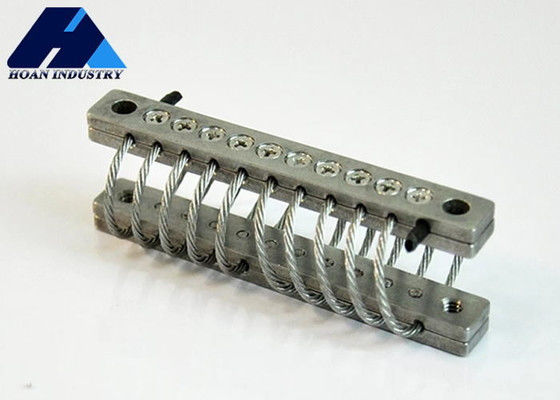

Wire rope isolators are composed by the stainless steel cable and aluminum retaining bars or stainless retaining bars, which provide excellent effect of isolation. They are smaller than the traditional ones and adopt their advantages. With their mounting point, crimping patterns and size vibration, they could meet all requirements of industry, defense and others.
The JGX-0958 series wire rope vibration isolators are the new kind isolators, which is from 43kg to 149kg.
The single point mountings of the JGX-0958 series wire rope vibration isolators offer flexibility for integration into existing
products, which can be used in the required working conditions for huge equipments or the related systems.
Nowadays, the JGX-0958 wire rope isolators are widely used in the field vehicles, armored cars,launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
