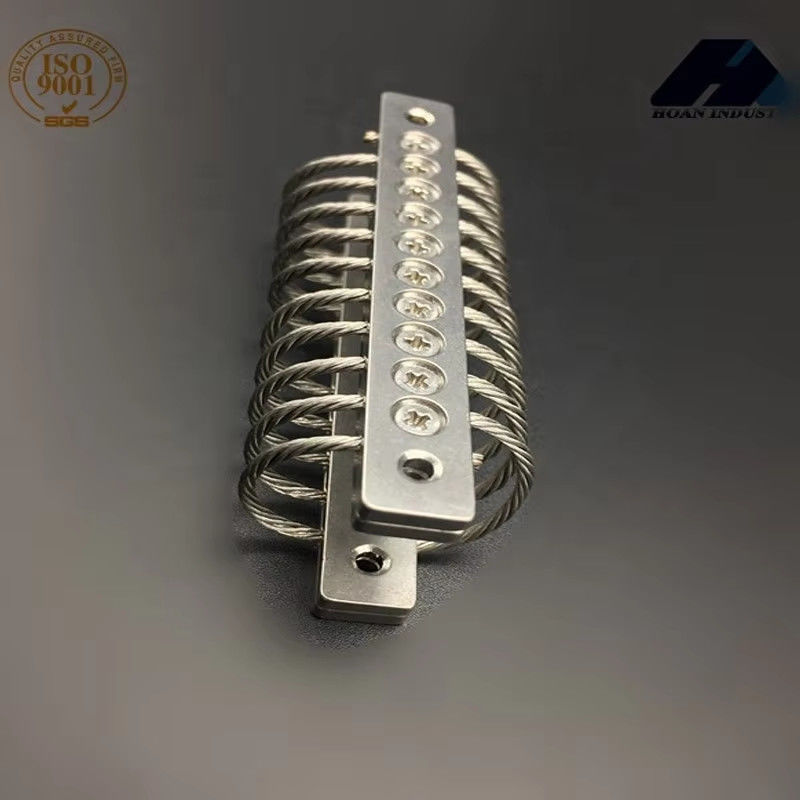

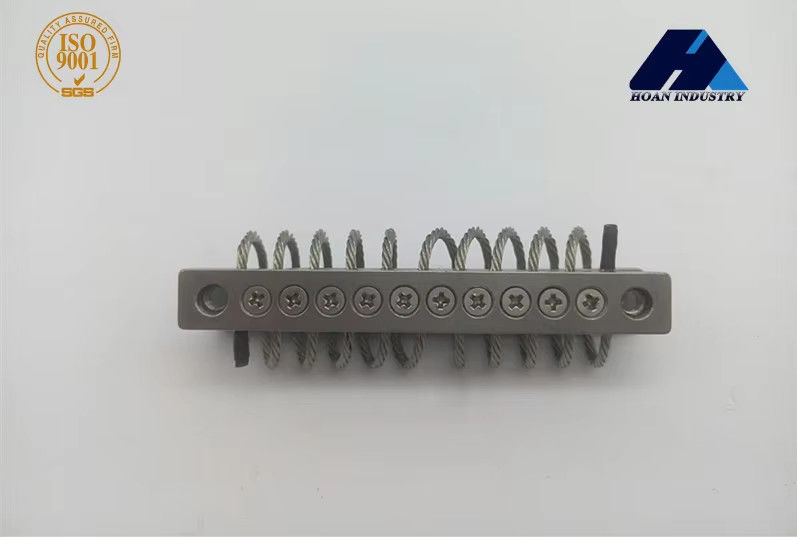

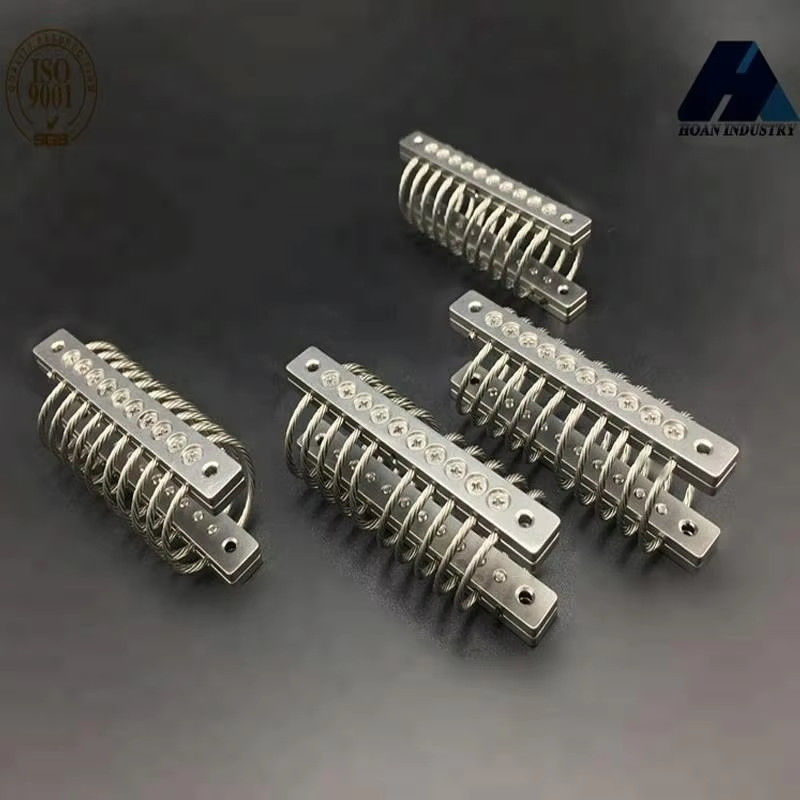

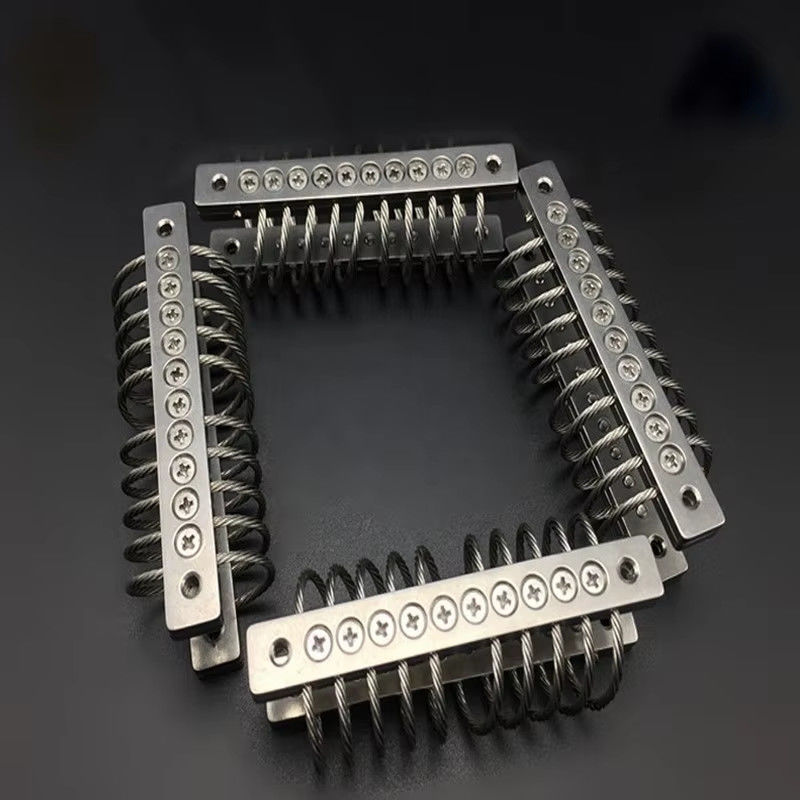

JGX-0958 Series
As a new type of vibration control product, JGX-0958 wire rope isolator is gradually becoming a popular choice in the market with its excellent performance and wide range of applications.
The performance of the JGX-0958 wire rope isolator is even more impressive. In the military field, it is widely used in vibration control of various weapon systems, armored vehicles and ships. In these applications, the JGX-0958 wire rope isolator can effectively reduce the vibration generated by the operation of the equipment, improve the shooting accuracy and navigation stability, and provide a strong guarantee for the security and development of the country.
JGX-0958 wire rope isolator also plays an irreplaceable role. For example, in the petrochemical industry, it is used to control the vibration of reactors, pipelines and other equipment to ensure the safety and stability of the production process. In the power industry, it is used to control the vibration of equipment such as generators and transformers to improve the reliability of power supply. In addition, in the fields of buildings and bridges, JGX-0958 wire rope isolator has also been widely used, providing a strong guarantee for the stability and safety of buildings.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
