Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0958D-95A
Video
Video
JGX-0958 Series
In modern industry and defense, vibration control technology is becoming increasingly important. Vibration not only affects the normal operation of the equipment, but can also cause damage to the equipment and even cause safety accidents. Therefore, choosing the right vibration control solution is critical to ensuring the stable operation of your equipment. As a new type of vibration isolation technology product, JGX-0958 wire rope isolator is widely used in various fields with its unique advantages.

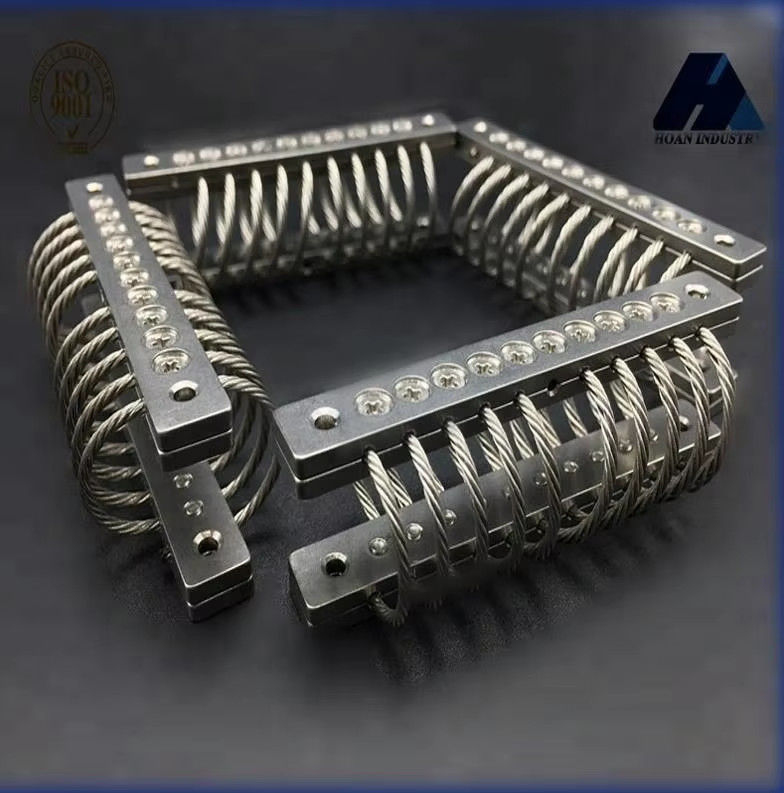

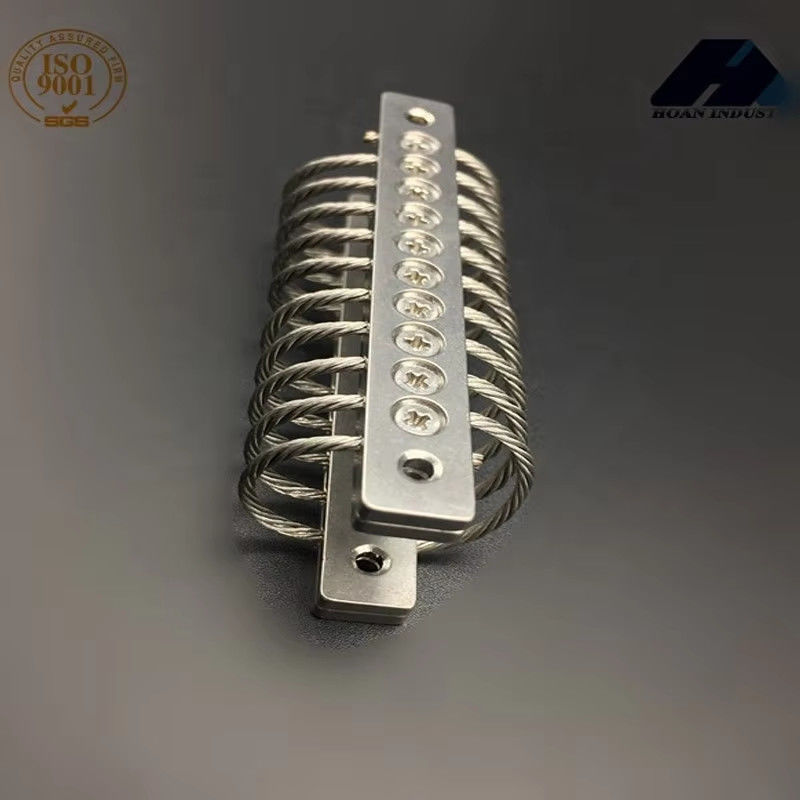

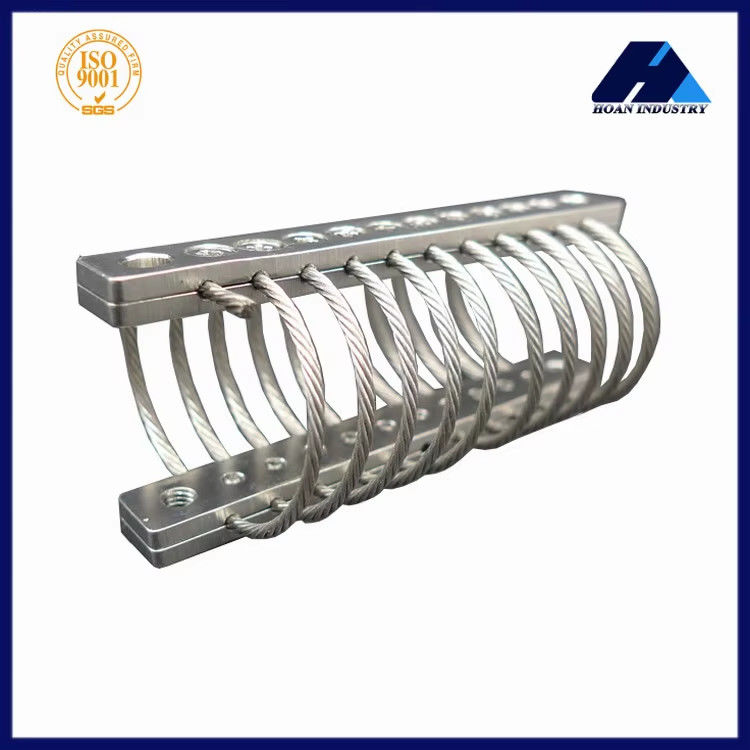

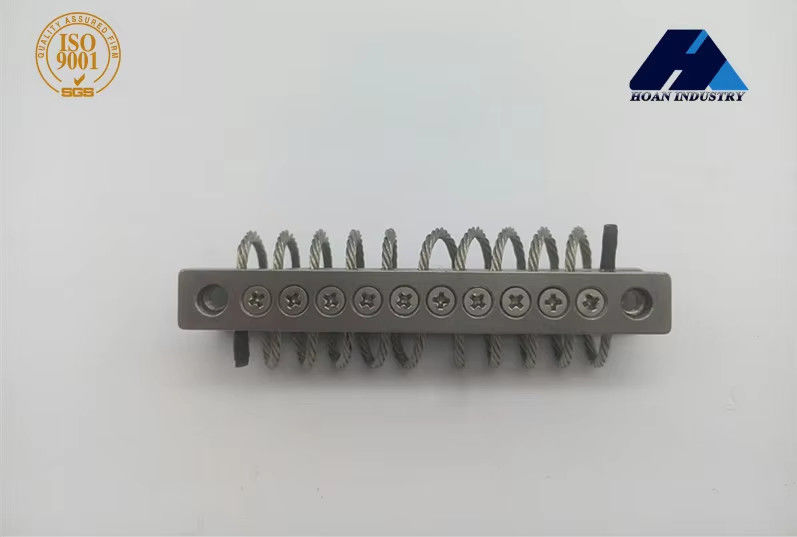

JGX-0958 series steel wire rope vibration isolator is composed of stainless steel wire rope and aluminum or stainless steel cage, this design not only ensures the strength and durability of the vibration isolator, but also greatly reduces its volume. Compared to traditional rubber or metal spring isolators, JGX-0958 series wire rope isolators are more compact and easy to install and use in space-constrained environments.
JGX-0958 series wire rope vibration isolators have shown their excellent performance in many fields. For example, in the military field, it is widely used for vibration control of equipment such as field vehicles, armored vehicles, and launchers. In these applications, JGX-0958 series wire rope vibration isolator can effectively reduce the vibration generated during the operation of the equipment and improve the stability and reliability of the equipment.
The reason why JGX-0958 wire rope isolator can be widely used in many fields is inseparable from its unique advantages in addition to its excellent vibration isolation performance. First of all, it is easy and convenient to install. Thanks to its compact size and flexible installation, it can be easily integrated into existing systems without the need for extensive retrofits. This saves a lot of time and cost for users.
JGX-0958 wire rope isolator has strong adaptability. It can be customized and adjusted according to the working characteristics of different equipment and the installation environment. Whether it is high temperature, low temperature, humidity or corrosive medium and other harsh environments, JGX-0958 series wire rope vibration isolator can maintain good vibration isolation effect. This high degree of adaptability allows it to meet the needs of various complex working conditions.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
* The material of the wire rope splint *
