JGX-0958 Series

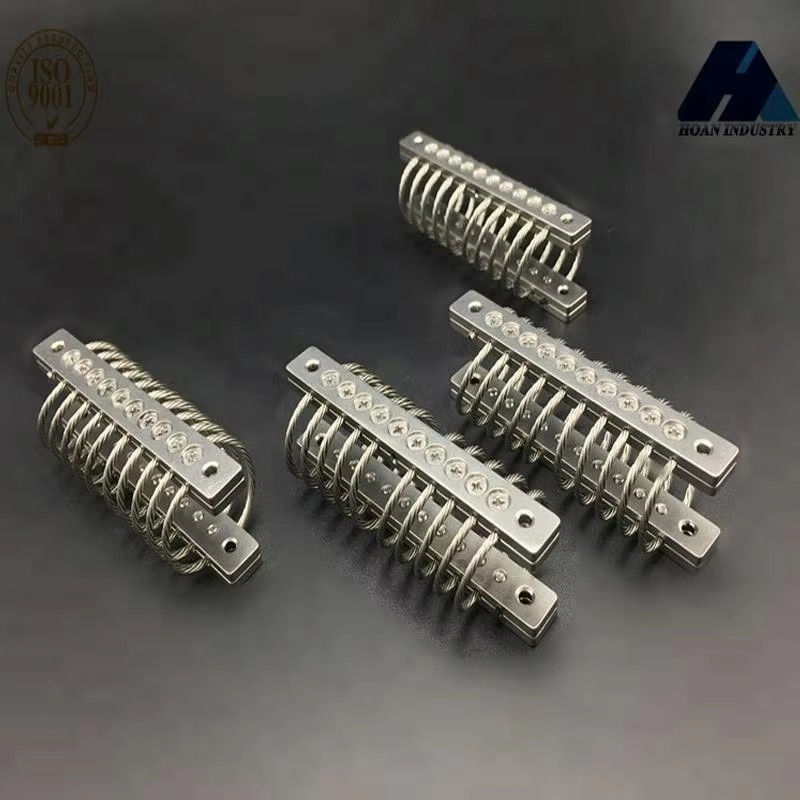

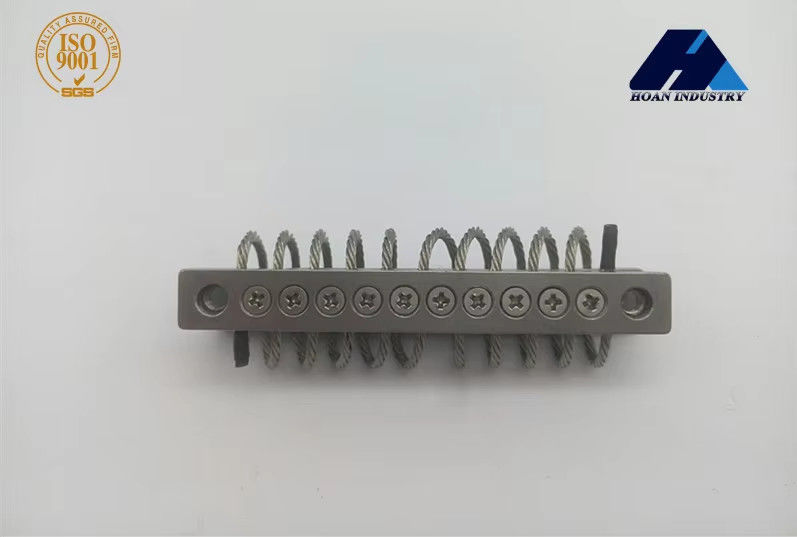

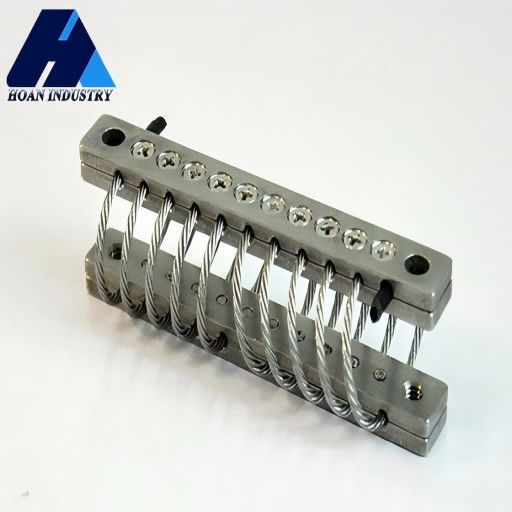

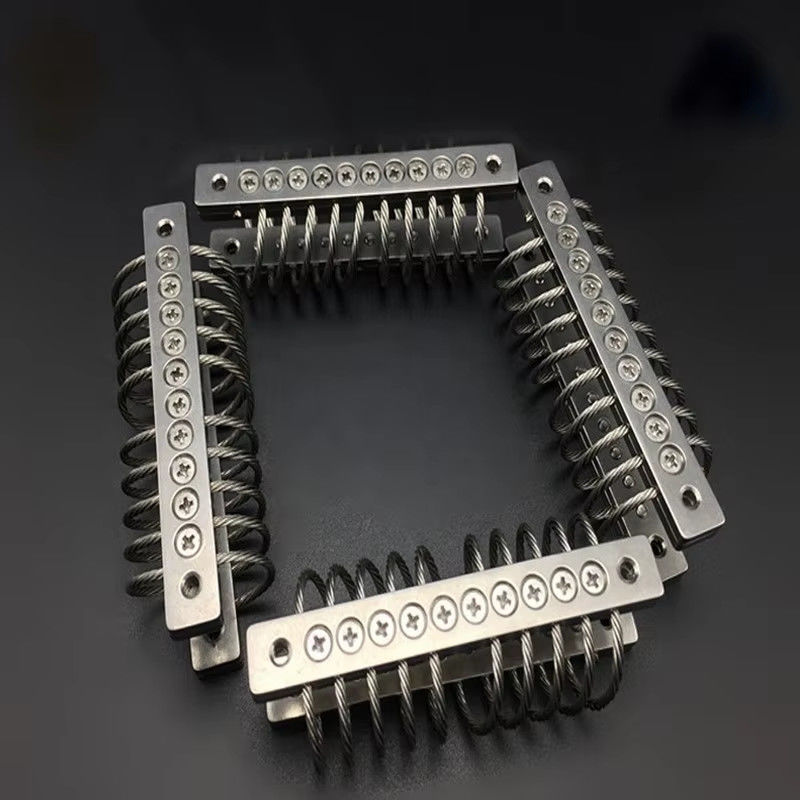

As a new type of vibration control product, JGX-0958 wire rope isolator is gradually becoming a popular choice in the market with its excellent performance and wide range of applications.
The performance characteristics of JGX-0958 wire rope isolator are mainly reflected in its excellent vibration isolation effect and adaptability. Its unique design allows the isolator to effectively absorb and attenuate the vibrations generated by the operation of the equipment, thereby protecting the equipment from vibration damage and extending its service life. In addition, the isolator is highly adaptable and able to adapt to different working conditions and environmental changes, such as temperature, humidity, corrosive media, etc. This adaptability allows the JGX-0958 wire rope isolator to perform well in a variety of complex environments to meet the needs of different industries.
JGX-0958 wire rope isolator has also been widely used in transportation, energy, communication and other fields. In the field of transportation, it is applied to the vibration control of transportation facilities such as highways and railways to improve the service life and driving safety of transportation facilities. In the energy field, it is used to control the vibration of new energy equipment such as wind power generation and solar power generation to improve energy efficiency. In the field of communication, it is used to control the vibration of base stations, antennas, and other equipment to ensure the stable transmission of communication signals. JGX-0958 wire rope isolator also shows strong ability to cope with extreme environments and special working conditions. For example, in harsh environments such as high temperature, low temperature, humidity, corrosive media, etc., JGX-0958 wire rope isolator can still maintain good working condition and provide effective vibration control for equipment. This adaptability makes the JGX-0958 wire rope isolator ideal for many special applications.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
