JGX-0958 Series
In modern industry and defense, vibration control technology is becoming increasingly important. Vibration not only affects the normal operation of the equipment, but can also cause damage to the equipment and even cause safety accidents. Therefore, choosing the right vibration control solution is critical to ensuring the stable operation of your equipment. As a new type of vibration isolation technology product, JGX-0958 wire rope isolator is widely used in various fields with its unique advantages.

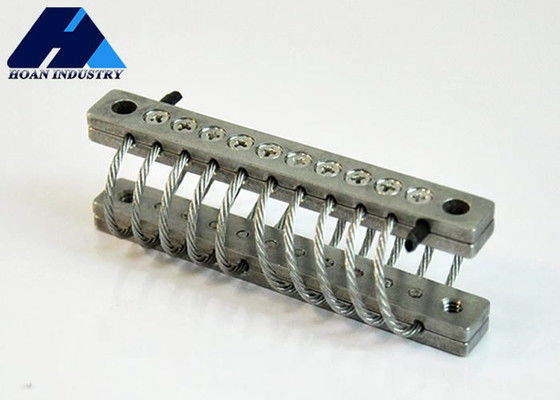

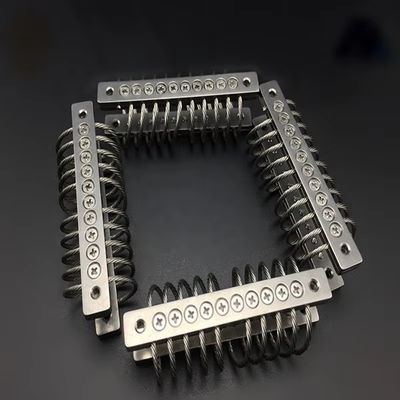

JGX-0958 series steel wire rope vibration isolator is composed of stainless steel wire rope and aluminum or stainless steel cage, this design not only ensures the strength and durability of the vibration isolator, but also greatly reduces its volume. Compared to traditional rubber or metal spring isolators, JGX-0958 series wire rope isolators are more compact and easy to install and use in space-constrained environments.
JGX-0958 series wire rope vibration isolators are also highly adaptable. It can be customized and adjusted according to the working characteristics and installation environment of different equipment. Whether it is large machinery or precision instrumentation, JGX-0958 series wire rope vibration isolators can provide effective vibration control solutions.
JGX-0958 series wire rope vibration isolators are also widely used in energy, photography equipment, aviation equipment, communication equipment, electronic sensing equipment, mobile electronic equipment, cameras and other fields. It provides an effective vibration control solution for these equipment, prolongs the service life of the equipment, and improves the work efficiency.
JGX-0958 wire rope isolator has strong adaptability. It can be customized and adjusted according to the working characteristics of different equipment and the installation environment. Whether it is high temperature, low temperature, humidity or corrosive medium and other harsh environments, JGX-0958 series wire rope vibration isolator can maintain good vibration isolation effect. This high degree of adaptability allows it to meet the needs of various complex working conditions.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
* The material of the wire rope splint *
