JGX-0958 Series
As a new type of vibration control product, JGX-0958 wire rope isolator is gradually becoming a popular choice in the market with its excellent performance and wide range of applications.

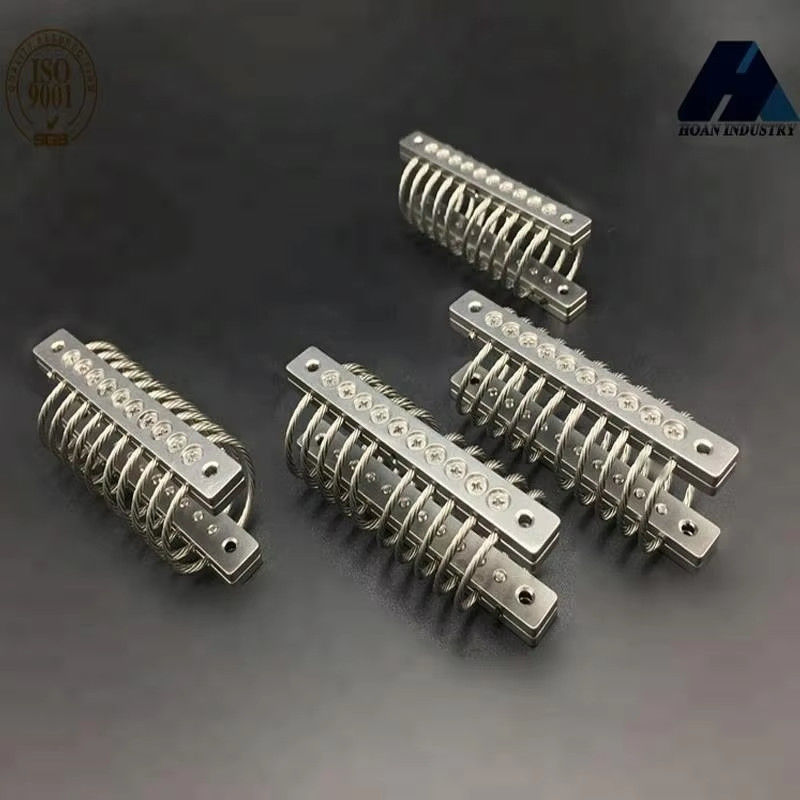

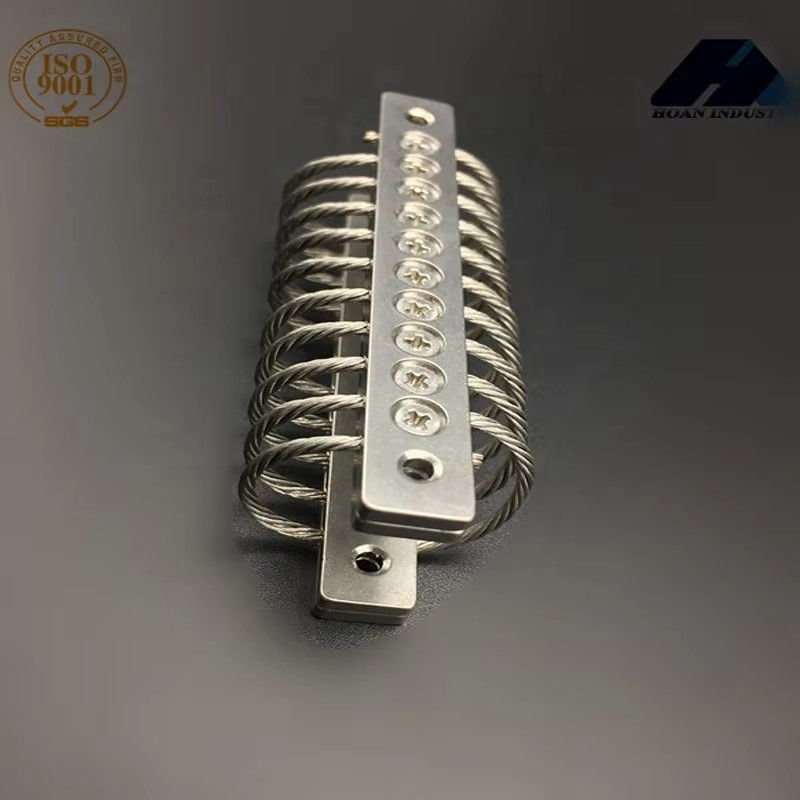

The core components of the JGX-0958 wire rope isolator include high-strength stainless steel wire ropes and precision-machined aluminum or stainless steel cages. This structural design not only ensures the overall strength and stability of the isolator, but also realizes a lightweight design, which makes installation and maintenance easier. At the same time, the use of stainless steel also gives the isolator excellent corrosion resistance, allowing it to work stably for a long time in harsh environments.
JGX-0958 wire rope isolator also has good environmental performance. It does not contain harmful substances and complies with relevant environmental standards and regulations. It will not produce the emission of harmful substances in the process of use, and it is environmentally friendly. This makes it a green, sustainable vibration control solution.
JGX-0958 wire rope isolator has been widely used in many fields due to its excellent vibration isolation performance, easy installation, strong adaptability, low maintenance cost and good environmental performance. With the continuous progress of technology and the continuous expansion of the market, it is believed that JGX-0958 wire rope isolator will play a more important role in the future and make greater contributions to the development of various industries.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958D-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958D-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958D-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958D-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958D-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958D-43A | 43 | 68.1 | 67 | 26 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958D-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958D-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958D-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958D-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958D-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958D-43A | 38 | 95 | 47 | 16 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0958D-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958D-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958D-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958D-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958D-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958D-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958D-43A | 20.4 | 71.7 | 19 | 19 |
