Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0648D-33A
Video
Video
JGX-0648 Series

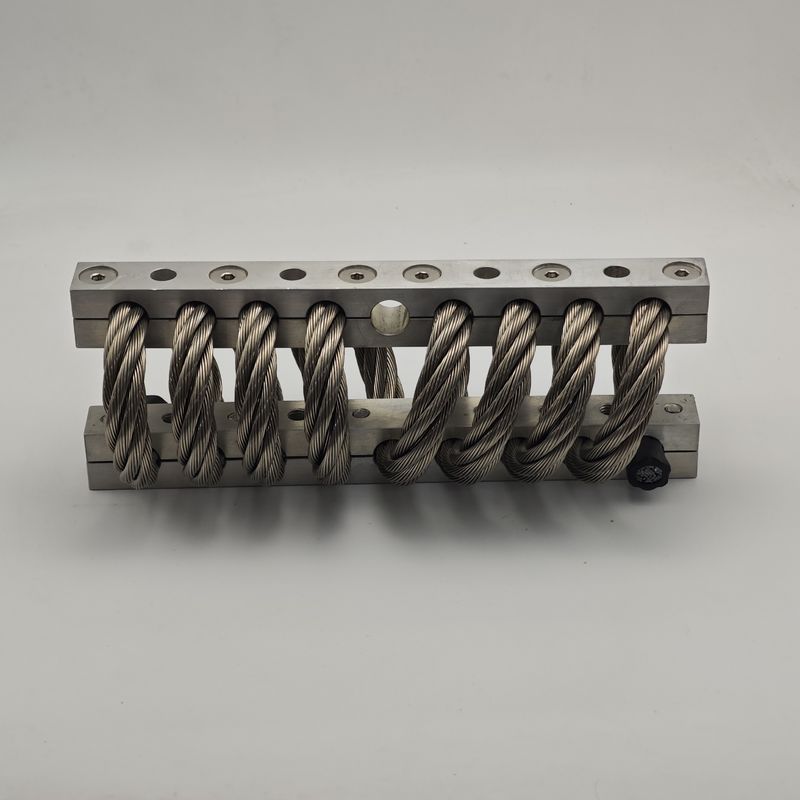

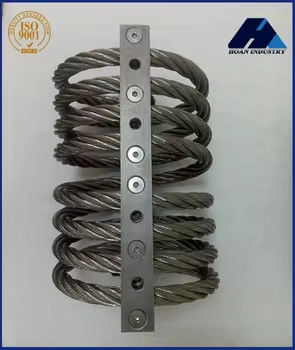

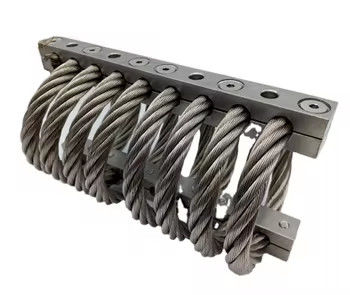

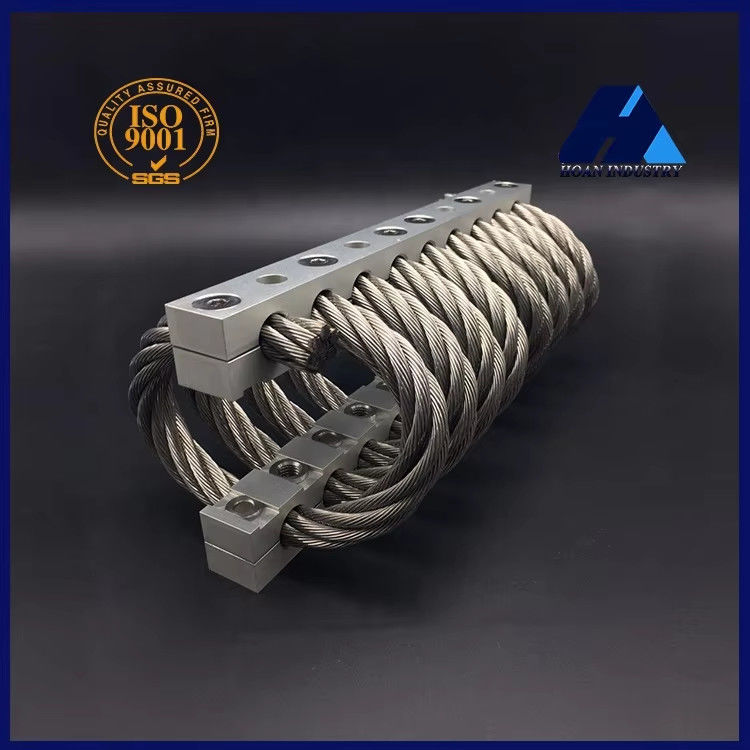

The JGX-0648D-33A wire rope isolator is another kind type isolators which are included in the family JGX-0648 series. The stainless steel cables and retaining bars of the JGX-0648D-33A provides amazing vibration isolation any time in use.
JGX-0648D-33A is the new designed 8 loops 6.4mm diameter wire rope isolators with max static load of 30kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
JGX-0648D-33A Wire Rope Isolator is a product that combines innovative technology with excellent performance. With its unique design, excellent performance and wide application prospects, it has become a dazzling star in the field of machinery and equipment. Whether for equipment manufacturers or end users, JGX-0648D-33A wire rope shock isolators are a trusted choice. Let's look forward to how it performs in the future, bringing more convenience and safety to our lives and work.
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 79 | 17.8 | 382 | 182 |
| 2 | JGX-0648D-68A | 68 | 23.9 | 266 | 116 |
| 3 | JGX-0648D-56A | 56 | 29.0 | 196 | 79 |
| 4 | JGX-0648D-45A | 45 | 32.0 | 151 | 60 |
| 5 | JGX-0648D-39A | 39 | 32.0 | 127 | 51 |
| 6 | JGX-0648D-36A | 36 | 35.6 | 109 | 42 |
| 7 | JGX-0648D-33A | 33 | 35.6 | 100 | 39 |
| 8 | JGX-0648D-30A | 30 | 50.8 | 74 | 25 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 56.7 | 25.9 | 215 | 89 |
| 2 | JGX-0648D-68A | 47.7 | 34.0 | 151 | 58 |
| 3 | JGX-0648D-56A | 39.8 | 39.6 | 109 | 40 |
| 4 | JGX-0648D-45A | 32.8 | 45.7 | 86 | 30 |
| 5 | JGX-0648D-39A | 27.9 | 45.7 | 72 | 25 |
| 6 | JGX-0648D-36A | 25.3 | 50.8 | 61 | 21 |
| 7 | JGX-0648D-33A | 23.4 | 50.8 | 56 | 19 |
| 8 | JGX-0648D-30A | 21.3 | 71.6 | 41 | 12 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 43.2 | 18.8 | 110 | 110 |
| 2 | JGX-0648D-68A | 36.3 | 24.9 | 72 | 72 |
| 3 | JGX-0648D-56A | 31.7 | 30.0 | 49 | 49 |
| 4 | JGX-0648D-45A | 25.0 | 34.0 | 37 | 37 |
| 5 | JGX-0648D-39A | 22.7 | 34.0 | 32 | 32 |
| 6 | JGX-0648D-36A | 20.4 | 38.1 | 25 | 25 |
| 7 | JGX-0648D-33A | 18.2 | 38.1 | 23 | 23 |
| 8 | JGX-0648D-30A | 15.9 | 52.8 | 16 | 16 |
* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
