Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0648D-39A
Video
Video
JGX-0648 Series

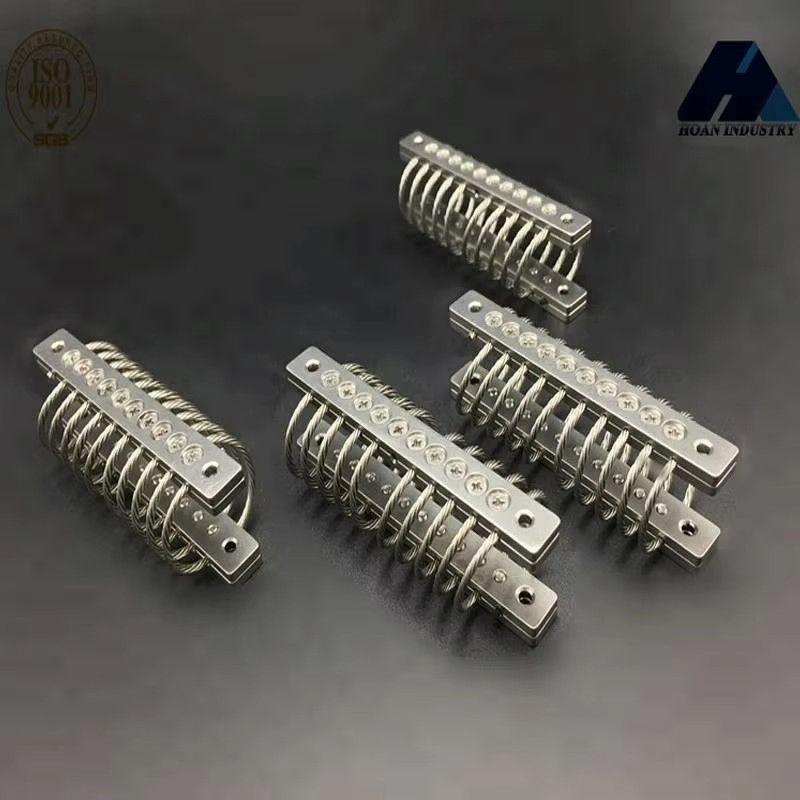

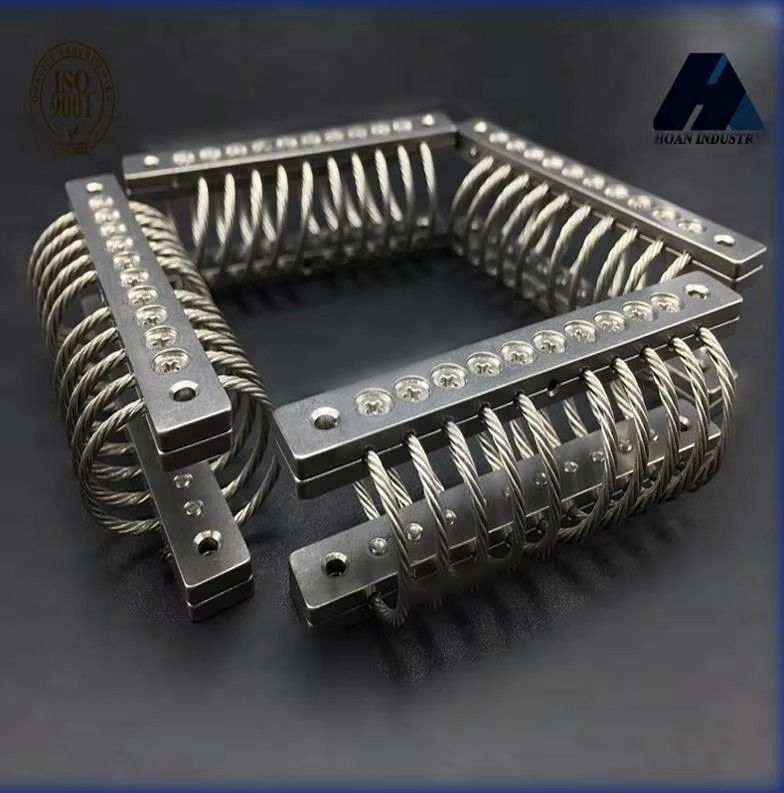

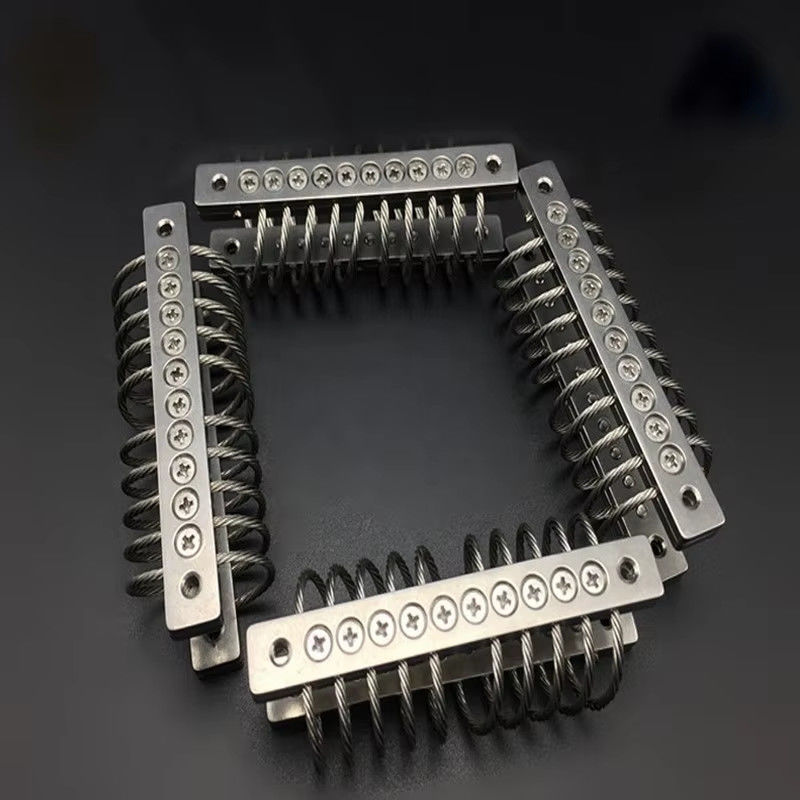

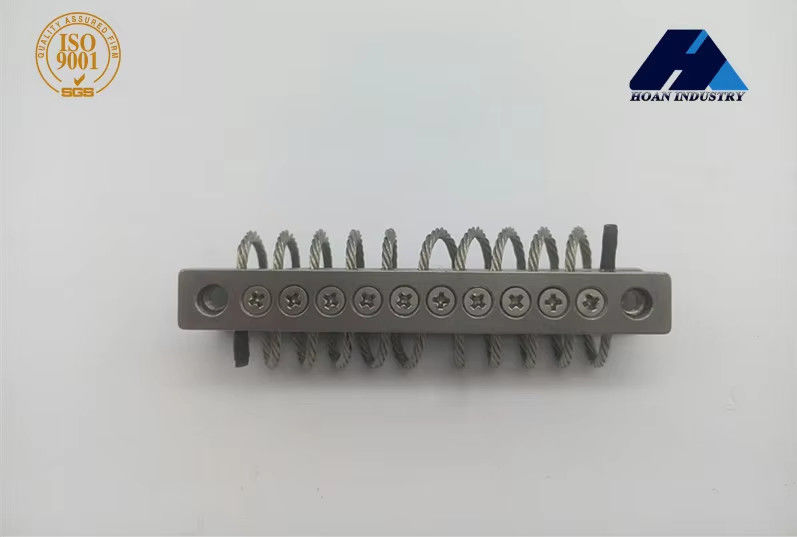

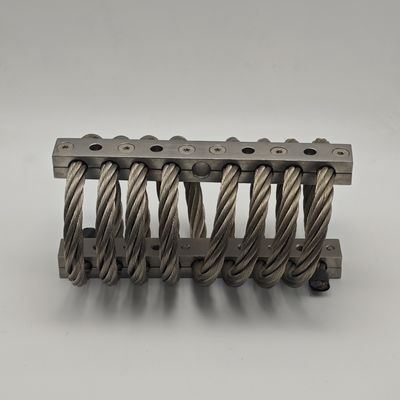

In today's era of rapid development of science and technology, all kinds of advanced machinery and equipment have penetrated into every corner of our lives. While these devices bring us convenience, they also bring some challenges, the most prominent of which is how to ensure the stable operation and longevity of the equipment. And JGX-0648D-39A wire rope seismic isolator was born to solve this problem.
As a member of the JGX-064 series shock isolator family, JGX-0648D-39A steel wire rope shock isolator inherits the excellent genes of the family, and innovates and improves on this basis. It is made of high-quality wire rope material, which has undergone precise process processing and strict quality inspection to ensure the reliability and durability of the product.
The unique design of this type of isolator lies in its internal structure. It uses advanced spring technology, which allows the isolator to react quickly to shocks, effectively absorbing and reducing vibration energy. At the same time, the elastic properties of the wire rope also allow the isolator to maintain good performance under heavy loads without breaking or deformation.
In addition to its outstanding performance, the JGX-0648D-39A wire rope isolator offers many other benefits. First of all, it is made of stainless steel, which has good corrosion resistance and waterproof properties, and can maintain good performance even in harsh environmental conditions. Secondly, it is easy to install, just fix it on the equipment that needs to isolate vibration, and there is no need for complicated installation procedures. Finally, it has a simple and elegant appearance that blends well into a variety of environments and scenes.
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 79 | 17.8 | 382 | 182 |
| 2 | JGX-0648D-68A | 68 | 23.9 | 266 | 116 |
| 3 | JGX-0648D-56A | 56 | 29.0 | 196 | 79 |
| 4 | JGX-0648D-45A | 45 | 32.0 | 151 | 60 |
| 5 | JGX-0648D-39A | 39 | 32.0 | 127 | 51 |
| 6 | JGX-0648D-36A | 36 | 35.6 | 109 | 42 |
| 7 | JGX-0648D-33A | 33 | 35.6 | 100 | 39 |
| 8 | JGX-0648D-30A | 30 | 50.8 | 74 | 25 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 56.7 | 25.9 | 215 | 89 |
| 2 | JGX-0648D-68A | 47.7 | 34.0 | 151 | 58 |
| 3 | JGX-0648D-56A | 39.8 | 39.6 | 109 | 40 |
| 4 | JGX-0648D-45A | 32.8 | 45.7 | 86 | 30 |
| 5 | JGX-0648D-39A | 27.9 | 45.7 | 72 | 25 |
| 6 | JGX-0648D-36A | 25.3 | 50.8 | 61 | 21 |
| 7 | JGX-0648D-33A | 23.4 | 50.8 | 56 | 19 |
| 8 | JGX-0648D-30A | 21.3 | 71.6 | 41 | 12 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 43.2 | 18.8 | 110 | 110 |
| 2 | JGX-0648D-68A | 36.3 | 24.9 | 72 | 72 |
| 3 | JGX-0648D-56A | 31.7 | 30.0 | 49 | 49 |
| 4 | JGX-0648D-45A | 25.0 | 34.0 | 37 | 37 |
| 5 | JGX-0648D-39A | 22.7 | 34.0 | 32 | 32 |
| 6 | JGX-0648D-36A | 20.4 | 38.1 | 25 | 25 |
| 7 | JGX-0648D-33A | 18.2 | 38.1 | 23 | 23 |
| 8 | JGX-0648D-30A | 15.9 | 52.8 | 16 | 16 |
FAQ
1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.
2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.
3.Q:What is the lead time?
