Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0648D-56A
JGX-0648 Series
In today's era of rapid development of science and technology, all kinds of advanced machinery and equipment have penetrated into every corner of our lives. While these devices bring us convenience, they also bring some challenges, the most prominent of which is how to ensure the stable operation and longevity of the equipment. And JGX-0648D-56A wire rope seismic isolator was born to solve this problem.

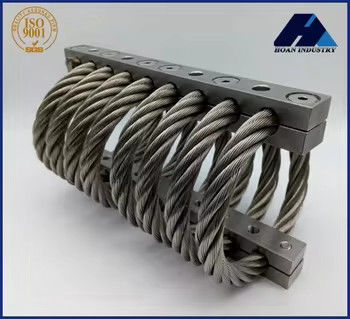

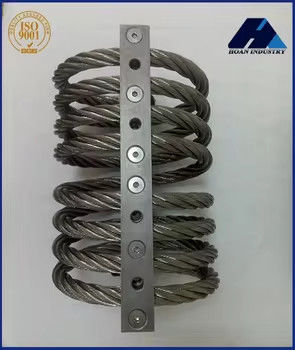

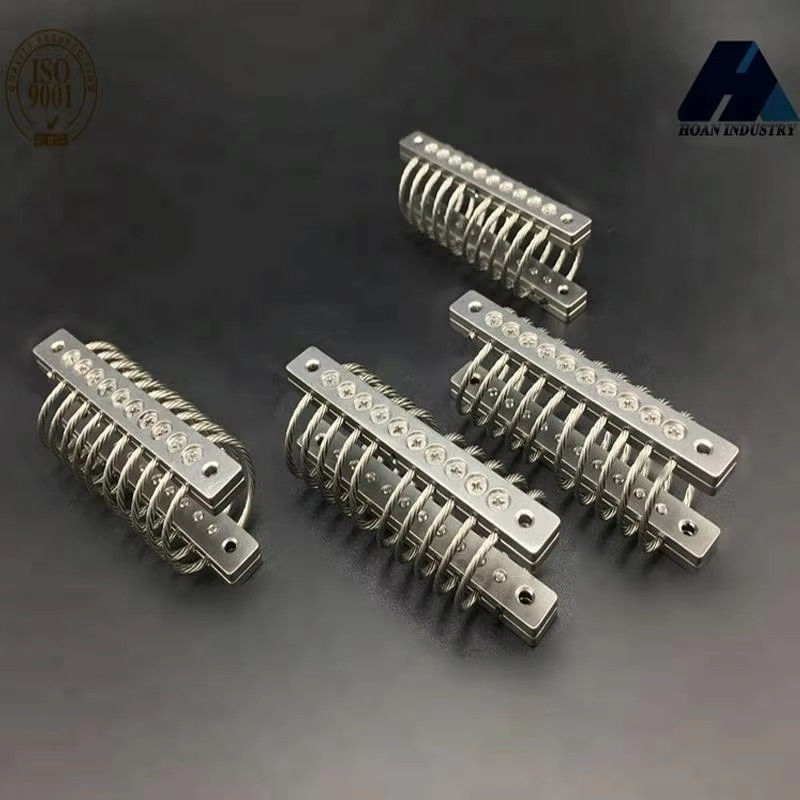

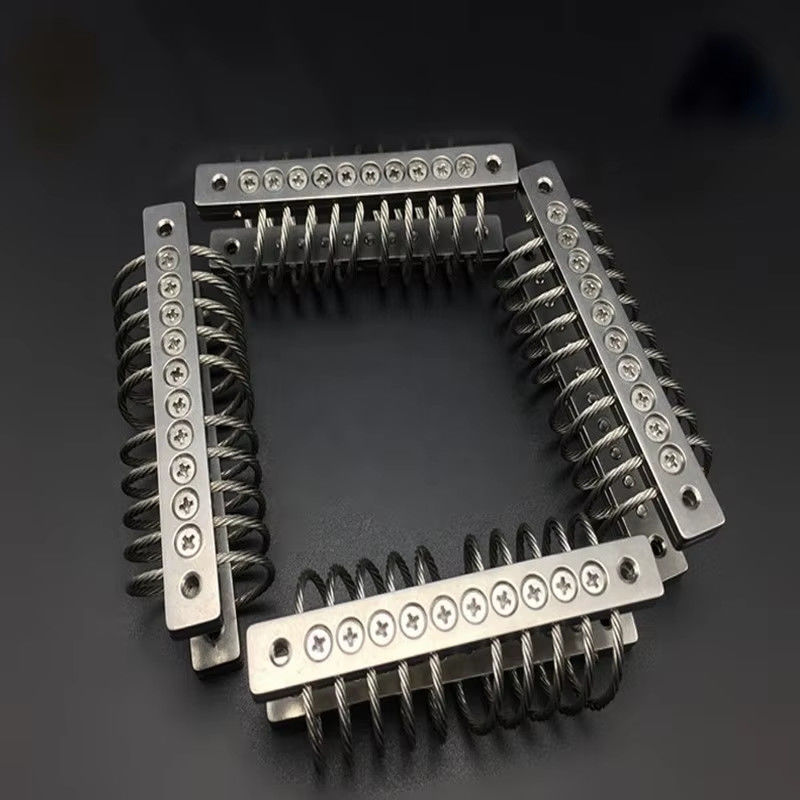

As a member of the JGX-064 series shock isolator family, JGX-0648D-56A steel wire rope shock isolator inherits the excellent genes of the family, and innovates and improves on this basis. It is made of high-quality wire rope material, which has undergone precise process processing and strict quality inspection to ensure the reliability and durability of the product.
The unique design of this type of isolator lies in its internal structure. It uses advanced spring technology, which allows the isolator to react quickly to shocks, effectively absorbing and reducing vibration energy. At the same time, the elastic properties of the wire rope also allow the isolator to maintain good performance under heavy loads without breaking or deformation.
JGX-0648D-56A wire rope isolator has a wide range of applications. It can not only be used for shock absorption of various mechanical equipment, but also for the seismic reinforcement of building structures, shock absorption of roads and bridges, and other fields. For example, in the automotive industry, it can be used for shock absorption of vehicle suspension systems to improve the ride comfort of vehicles; In the construction industry, it can be used for seismic support of high-rise buildings to improve the stability and safety of buildings. In addition, due to its excellent waterproof and corrosion resistance, it can also be used in marine engineering, shipbuilding, and other fields to provide reliable protection for equipment.
JGX-0648D-56A wire rope shock isolator is a trustworthy product. No matter what field you're working in, consider using this type of isolator to improve the performance and stability of your equipment. I believe that in the near future, it will become your indispensable right-hand man.
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 79 | 17.8 | 382 | 182 |
| 2 | JGX-0648D-68A | 68 | 23.9 | 266 | 116 |
| 3 | JGX-0648D-56A | 56 | 29.0 | 196 | 79 |
| 4 | JGX-0648D-45A | 45 | 32.0 | 151 | 60 |
| 5 | JGX-0648D-39A | 39 | 32.0 | 127 | 51 |
| 6 | JGX-0648D-36A | 36 | 35.6 | 109 | 42 |
| 7 | JGX-0648D-33A | 33 | 35.6 | 100 | 39 |
| 8 | JGX-0648D-30A | 30 | 50.8 | 74 | 25 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 56.7 | 25.9 | 215 | 89 |
| 2 | JGX-0648D-68A | 47.7 | 34.0 | 151 | 58 |
| 3 | JGX-0648D-56A | 39.8 | 39.6 | 109 | 40 |
| 4 | JGX-0648D-45A | 32.8 | 45.7 | 86 | 30 |
| 5 | JGX-0648D-39A | 27.9 | 45.7 | 72 | 25 |
| 6 | JGX-0648D-36A | 25.3 | 50.8 | 61 | 21 |
| 7 | JGX-0648D-33A | 23.4 | 50.8 | 56 | 19 |
| 8 | JGX-0648D-30A | 21.3 | 71.6 | 41 | 12 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 43.2 | 18.8 | 110 | 110 |
| 2 | JGX-0648D-68A | 36.3 | 24.9 | 72 | 72 |
| 3 | JGX-0648D-56A | 31.7 | 30.0 | 49 | 49 |
| 4 | JGX-0648D-45A | 25.0 | 34.0 | 37 | 37 |
| 5 | JGX-0648D-39A | 22.7 | 34.0 | 32 | 32 |
| 6 | JGX-0648D-36A | 20.4 | 38.1 | 25 | 25 |
| 7 | JGX-0648D-33A | 18.2 | 38.1 | 23 | 23 |
| 8 | JGX-0648D-30A | 15.9 | 52.8 | 16 | 16 |
FAQ
1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.
2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.
3.Q:What is the lead time?
