Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0480D-18A
Video
Video

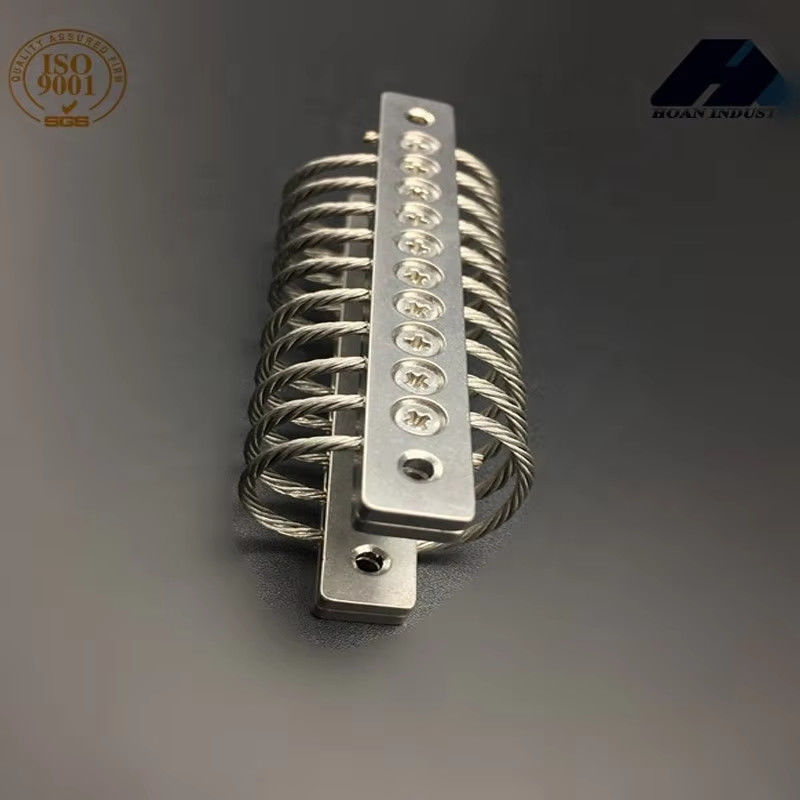

JGX-0480 Series
The successful application of JGX-0480 series wire rope vibration isolator is inseparable from our strict control of quality. We follow the international quality management system standards, from the selection of raw materials to every link of the production process, strict quality control. Our team of engineers has the experience and expertise to continuously optimize production processes and improve the performance and reliability of our products. In addition, we provide comprehensive technical support and consulting services to help customers choose the most suitable product for their needs and provide personalized solutions
Looking ahead, with the advancement of science and technology and changes in the market, we will continue to invest in research and development and constantly explore new materials and technologies to meet the changing market demand. We believe that through continuous innovation and improvement, JGX-0480 series wire rope vibration isolator will exert its excellent performance in more fields and create a safer and more comfortable living environment for human beings.
In short, JGX-0480 series wire rope vibration isolator is an excellent product that combines high performance, strong stability and wide adaptability. It not only shows strong strength in the military field, but also has a wide range of application prospects in the civilian field. We will continue to uphold the principle of quality first and customer first, provide customers with the best quality products and services, and jointly create a better future.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 75 | 8.6 | 578 | 363 |
| 2 | JGX-0480D-72A | 72 | 11.7 | 455 | 252 |
| 3 | JGX-0480D-61A | 61 | 13.7 | 347 | 189 |
| 4 | JGX-0480D-59A | 59 | 15.7 | 301 | 152 |
| 5 | JGX-0480D-52A | 52 | 18.8 | 244 | 117 |
| 6 | JGX-0480D-50A | 50 | 20.8 | 212 | 96 |
| 7 | JGX-0480D-37A | 37 | 26.9 | 136 | 58 |
| 8 | JGX-0480D-24A | 24 | 29.5 | 82 | 33 |
| 9 | JGX-0480D-18A | 18 | 36.6 | 54 | 21 |
| 10 | JGX-0480D-12A | 12 | 52.8 | 29 | 10 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 54.5 | 12.7 | 341 | 179 |
| 2 | JGX-0480D-72A | 52.2 | 16.8 | 258 | 126 |
| 3 | JGX-0480D-61A | 44.1 | 19.8 | 197 | 93 |
| 4 | JGX-0480D-59A | 41.7 | 22.9 | 172 | 75 |
| 5 | JGX-0480D-52A | 38.1 | 26.9 | 141 | 58 |
| 6 | JGX-0480D-50A | 35.7 | 29 | 123 | 49 |
| 7 | JGX-0480D-37A | 26.5 | 38.1 | 77 | 28 |
| 8 | JGX-0480D-24A | 18.1 | 41.7 | 49 | 18 |
| 9 | JGX-0480D-18A | 13.9 | 51.3 | 33 | 11 |
| 10 | JGX-0480D-12A | 9.3 | 74.7 | 18 | 5.3 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 36.3 | 8.6 | 224 | 224 |
| 2 | JGX-0480D-72A | 36.3 | 11.7 | 156 | 156 |
| 3 | JGX-0480D-61A | 34.1 | 14.7 | 112 | 112 |
| 4 | JGX-0480D-59A | 31.7 | 16.8 | 93 | 93 |
| 5 | JGX-0480D-52A | 29.5 | 19.8 | 70 | 70 |
| 6 | JGX-0480D-50A | 27.2 | 21.8 | 60 | 60 |
| 7 | JGX-0480D-37A | 20.4 | 27.9 | 35 | 35 |
| 8 | JGX-0480D-24A | 5.9 | 31.0 | 11 | 11 |
| 9 | JGX-0480D-18A | 4.1 | 39.1 | 5.3 | 5.3 |
| 10 | JGX-0480D-12A | 2.2 | 55.9 | 2.3 | 2.3 |
* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
