JGX-0480 Series
Vibration control is a crucial task in modern industry and technology. In order to meet this demand, a product called JGX-0480 series steel wire rope vibration isolator came into being. With its unique design and excellent performance, it has shown irreplaceable value in many fields. Next, let's take a closer look at the features, advantages and application scenarios of JGX-0480 series wire rope isolators

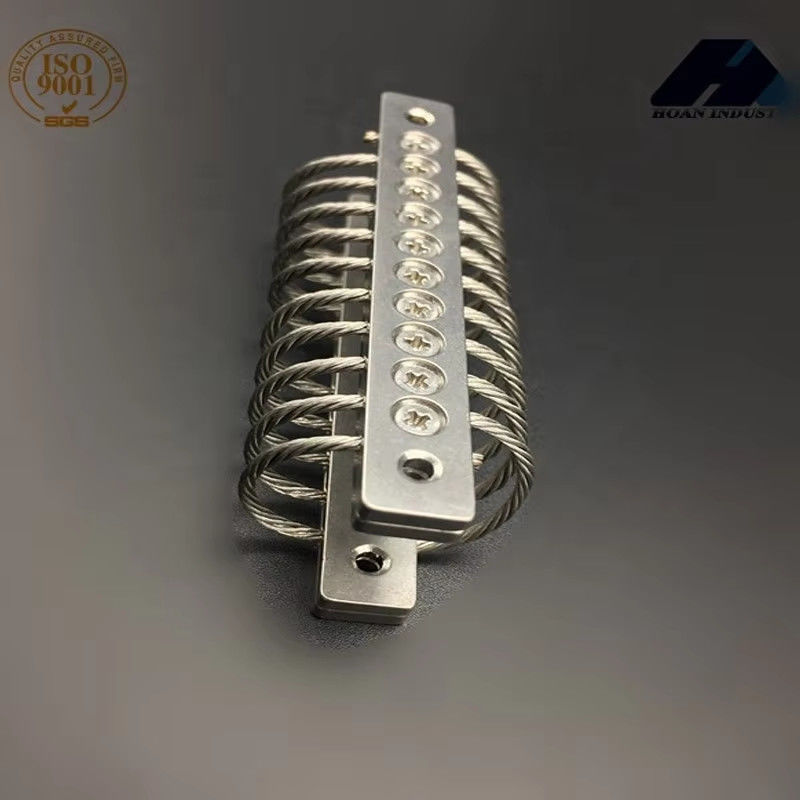

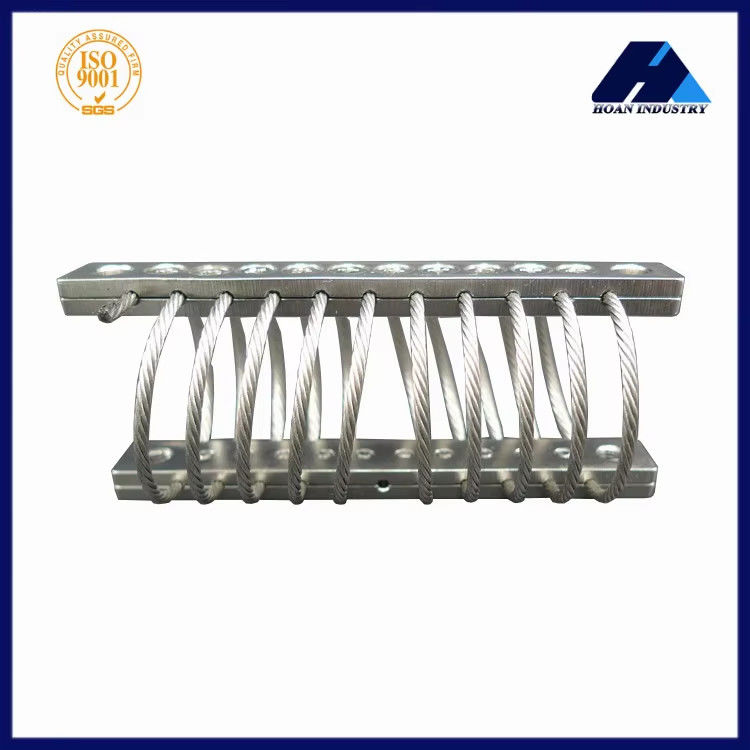

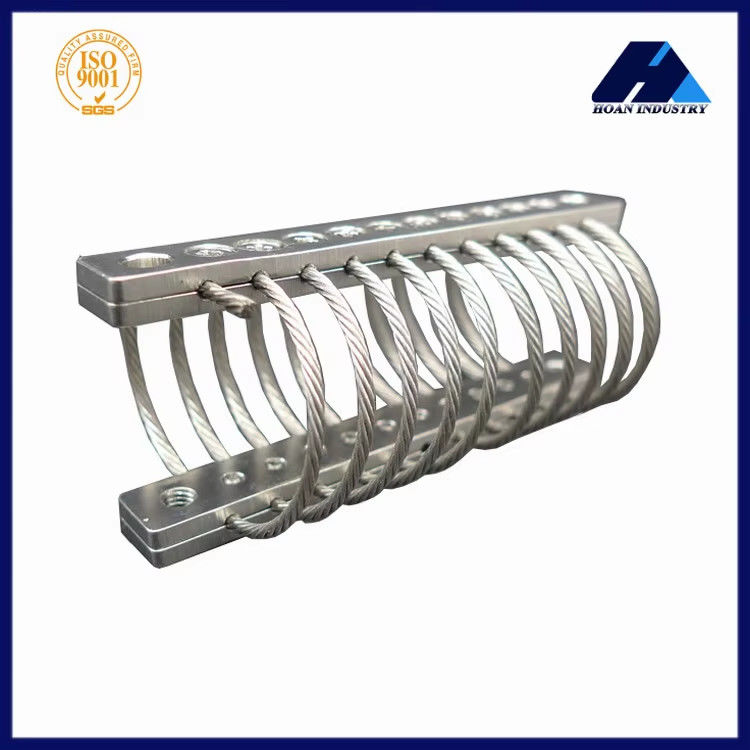

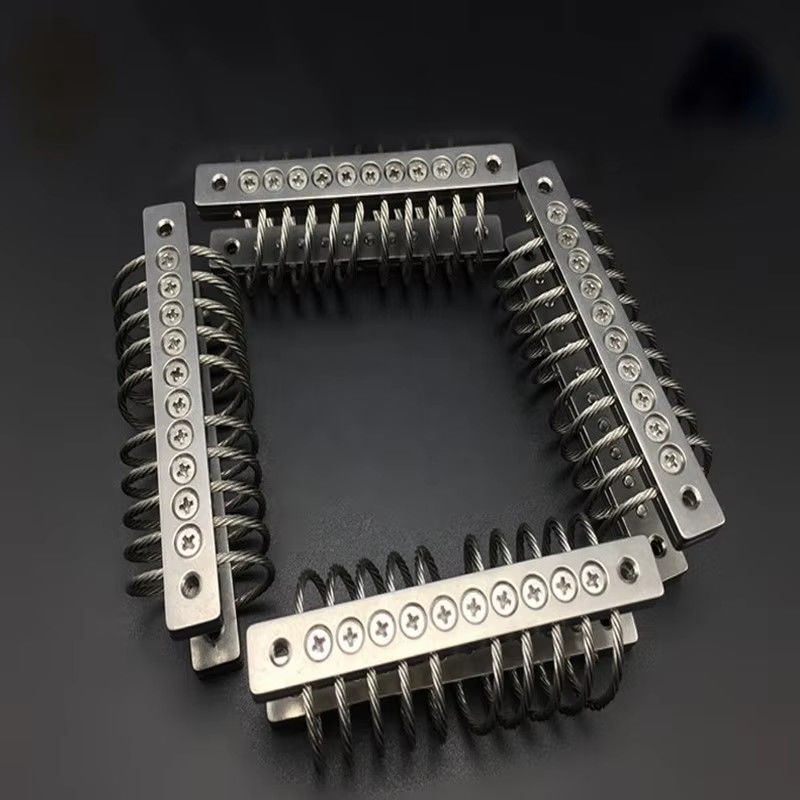

First of all, let's understand the basic structure of JGX-0480 series wire rope vibration isolators. The core of this isolator is made up of 10 coils of wire ropes with a diameter of 4.8 mm, which have been precisely calculated and designed to form a powerful spring structure. This structure not only ensures the stability of the vibration isolator, but also gives it excellent shock absorption performance. Whether it is in high-speed moving machinery or in structures that withstand huge impacts, the JGX-0480 series can quickly absorb and disperse energy, effectively reducing the impact of vibration on equipment.
The advantage of JGX-0480 series wire rope vibration isolator lies not only in its excellent performance and flexibility, but also in its wide applicability. It can be widely used in various fields, such as military vehicles, armored vehicles, launchers, highways, transportation, marine, shipbuilding, navy, energy, photographic equipment, aviation equipment, communication equipment, electronic sensing equipment, mobile electronic equipment, cameras, etc. No matter in which field, the JGX-0480 series can give full play to its excellent performance and provide a strong guarantee for the stable operation of the equipment.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 75 | 8.6 | 578 | 363 |
| 2 | JGX-0480D-72A | 72 | 11.7 | 455 | 252 |
| 3 | JGX-0480D-61A | 61 | 13.7 | 347 | 189 |
| 4 | JGX-0480D-59A | 59 | 15.7 | 301 | 152 |
| 5 | JGX-0480D-52A | 52 | 18.8 | 244 | 117 |
| 6 | JGX-0480D-50A | 50 | 20.8 | 212 | 96 |
| 7 | JGX-0480D-37A | 37 | 26.9 | 136 | 58 |
| 8 | JGX-0480D-24A | 24 | 29.5 | 82 | 33 |
| 9 | JGX-0480D-18A | 18 | 36.6 | 54 | 21 |
| 10 | JGX-0480D-12A | 12 | 52.8 | 29 | 10 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 54.5 | 12.7 | 341 | 179 |
| 2 | JGX-0480D-72A | 52.2 | 16.8 | 258 | 126 |
| 3 | JGX-0480D-61A | 44.1 | 19.8 | 197 | 93 |
| 4 | JGX-0480D-59A | 41.7 | 22.9 | 172 | 75 |
| 5 | JGX-0480D-52A | 38.1 | 26.9 | 141 | 58 |
| 6 | JGX-0480D-50A | 35.7 | 29 | 123 | 49 |
| 7 | JGX-0480D-37A | 26.5 | 38.1 | 77 | 28 |
| 8 | JGX-0480D-24A | 18.1 | 41.7 | 49 | 18 |
| 9 | JGX-0480D-18A | 13.9 | 51.3 | 33 | 11 |
| 10 | JGX-0480D-12A | 9.3 | 74.7 | 18 | 5.3 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 36.3 | 8.6 | 224 | 224 |
| 2 | JGX-0480D-72A | 36.3 | 11.7 | 156 | 156 |
| 3 | JGX-0480D-61A | 34.1 | 14.7 | 112 | 112 |
| 4 | JGX-0480D-59A | 31.7 | 16.8 | 93 | 93 |
| 5 | JGX-0480D-52A | 29.5 | 19.8 | 70 | 70 |
| 6 | JGX-0480D-50A | 27.2 | 21.8 | 60 | 60 |
| 7 | JGX-0480D-37A | 20.4 | 27.9 | 35 | 35 |
| 8 | JGX-0480D-24A | 5.9 | 31.0 | 11 | 11 |
| 9 | JGX-0480D-18A | 4.1 | 39.1 | 5.3 | 5.3 |
| 10 | JGX-0480D-12A | 2.2 | 55.9 | 2.3 | 2.3 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
