Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0480D-61A
Video
Video

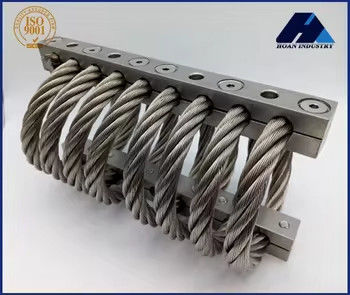

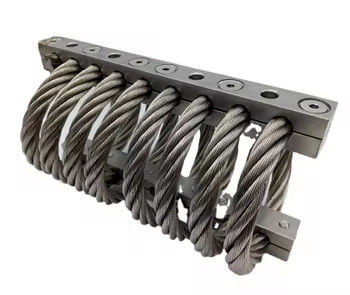

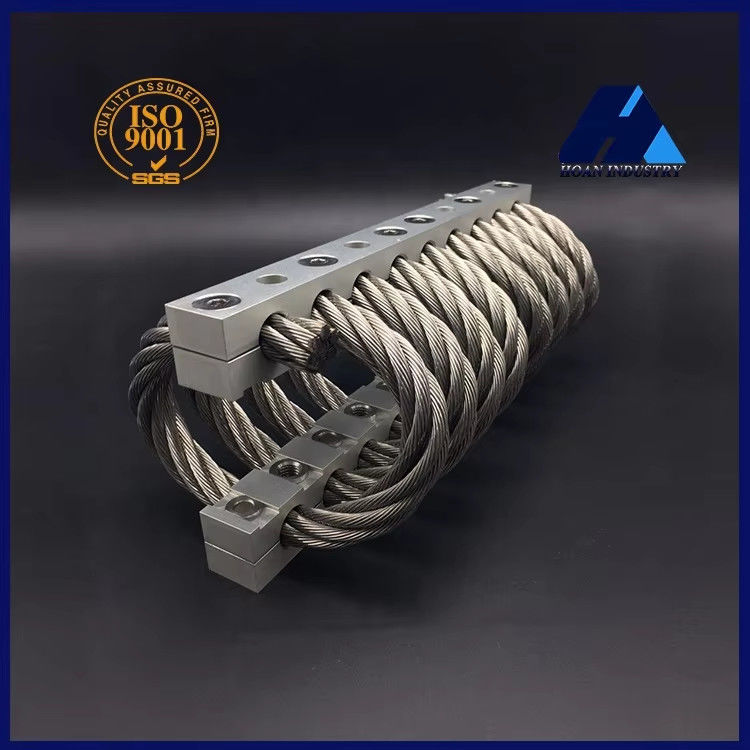

JGX-0480 Serise
The future of JGX-0480 series wire rope isolators is full of endless possibilities. With the advancement of science and technology and changes in the market, we will continue to invest in research and development and constantly explore new materials and technologies to meet the changing market demand. We believe that through continuous innovation and improvement, the JGX-0480 series will exert its excellent performance in more fields and create a safer and more comfortable living environment for human beings.
In short, JGX-0480 series wire rope vibration isolator is an excellent product that combines high performance, strong stability and wide adaptability. It not only plays an important role in the military field, but also has a wide range of application prospects in the civilian field. We will continue to uphold the principle of quality first and customer first, provide customers with the best quality products and services, and jointly create a better future.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 75 | 8.6 | 578 | 363 |
| 2 | JGX-0480D-72A | 72 | 11.7 | 455 | 252 |
| 3 | JGX-0480D-61A | 61 | 13.7 | 347 | 189 |
| 4 | JGX-0480D-59A | 59 | 15.7 | 301 | 152 |
| 5 | JGX-0480D-52A | 52 | 18.8 | 244 | 117 |
| 6 | JGX-0480D-50A | 50 | 20.8 | 212 | 96 |
| 7 | JGX-0480D-37A | 37 | 26.9 | 136 | 58 |
| 8 | JGX-0480D-24A | 24 | 29.5 | 82 | 33 |
| 9 | JGX-0480D-18A | 18 | 36.6 | 54 | 21 |
| 10 | JGX-0480D-12A | 12 | 52.8 | 29 | 10 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 54.5 | 12.7 | 341 | 179 |
| 2 | JGX-0480D-72A | 52.2 | 16.8 | 258 | 126 |
| 3 | JGX-0480D-61A | 44.1 | 19.8 | 197 | 93 |
| 4 | JGX-0480D-59A | 41.7 | 22.9 | 172 | 75 |
| 5 | JGX-0480D-52A | 38.1 | 26.9 | 141 | 58 |
| 6 | JGX-0480D-50A | 35.7 | 29 | 123 | 49 |
| 7 | JGX-0480D-37A | 26.5 | 38.1 | 77 | 28 |
| 8 | JGX-0480D-24A | 18.1 | 41.7 | 49 | 18 |
| 9 | JGX-0480D-18A | 13.9 | 51.3 | 33 | 11 |
| 10 | JGX-0480D-12A | 9.3 | 74.7 | 18 | 5.3 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Knm) |
Ks(shock) (Knm) |
| 1 | JGX-0480D-75A | 36.3 | 8.6 | 224 | 224 |
| 2 | JGX-0480D-72A | 36.3 | 11.7 | 156 | 156 |
| 3 | JGX-0480D-61A | 34.1 | 14.7 | 112 | 112 |
| 4 | JGX-0480D-59A | 31.7 | 16.8 | 93 | 93 |
| 5 | JGX-0480D-52A | 29.5 | 19.8 | 70 | 70 |
| 6 | JGX-0480D-50A | 27.2 | 21.8 | 60 | 60 |
| 7 | JGX-0480D-37A | 20.4 | 27.9 | 35 | 35 |
| 8 | JGX-0480D-24A | 5.9 | 31.0 | 11 | 11 |
| 9 | JGX-0480D-18A | 4.1 | 39.1 | 5.3 | 5.3 |
| 10 | JGX-0480D-12A | 2.2 | 55.9 | 2.3 | 2.3 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
