Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-1598D-428B
Video
Video
JGX-1598 Series
JGX-1598 series spring shock absorbers are a high-performance, versatile damping solution with a wide range of application prospects. Its high-quality materials, precision spring design, diverse mounting options, and adaptability make it ideal for a variety of industrial, defense, and commercial applications. In the future, with the continuous advancement of technology and the growth of market demand, JGX-1598 series shock absorbers will continue to play an important role in providing efficient and reliable vibration control solutions for various application scenarios.

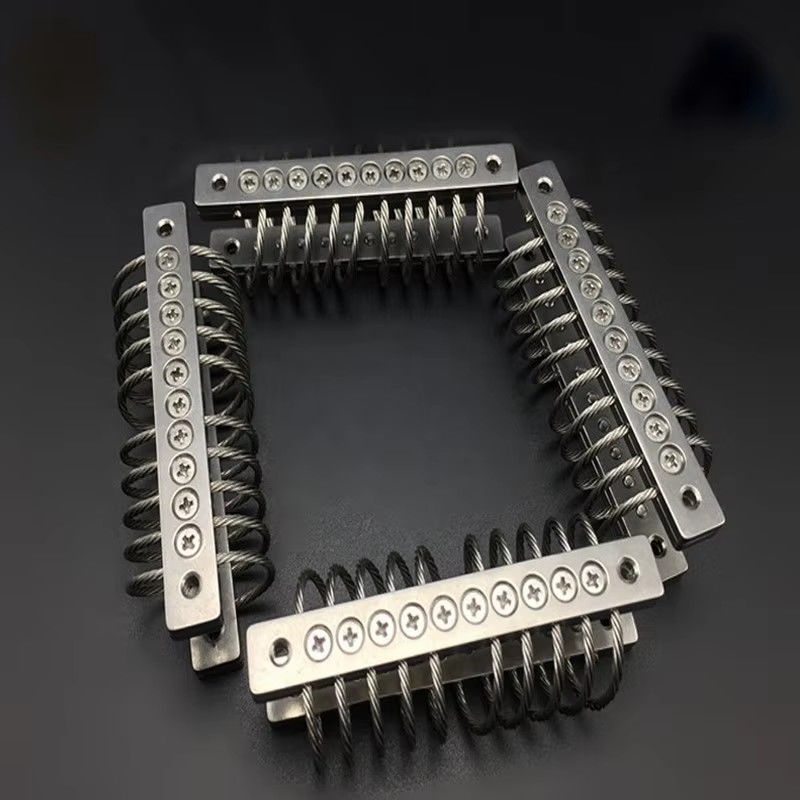

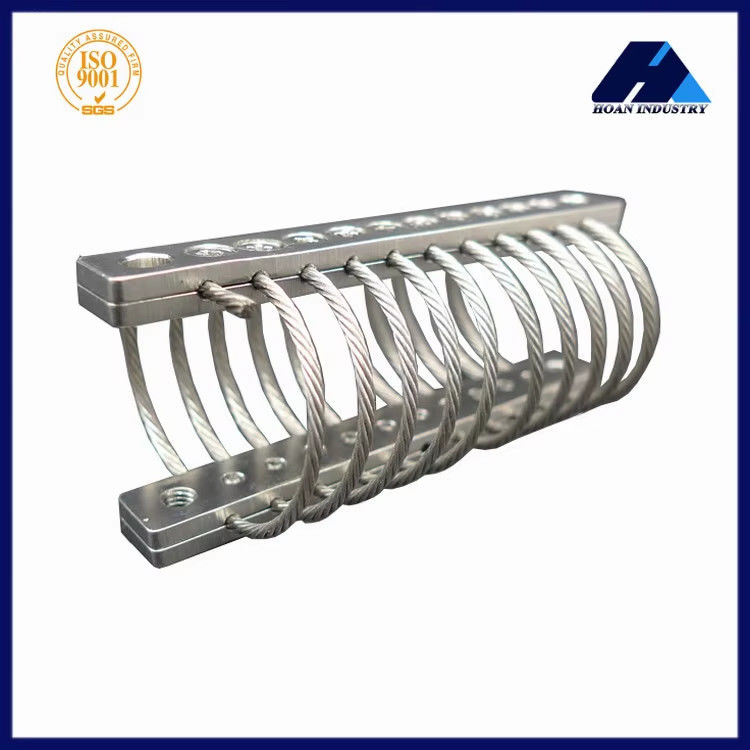

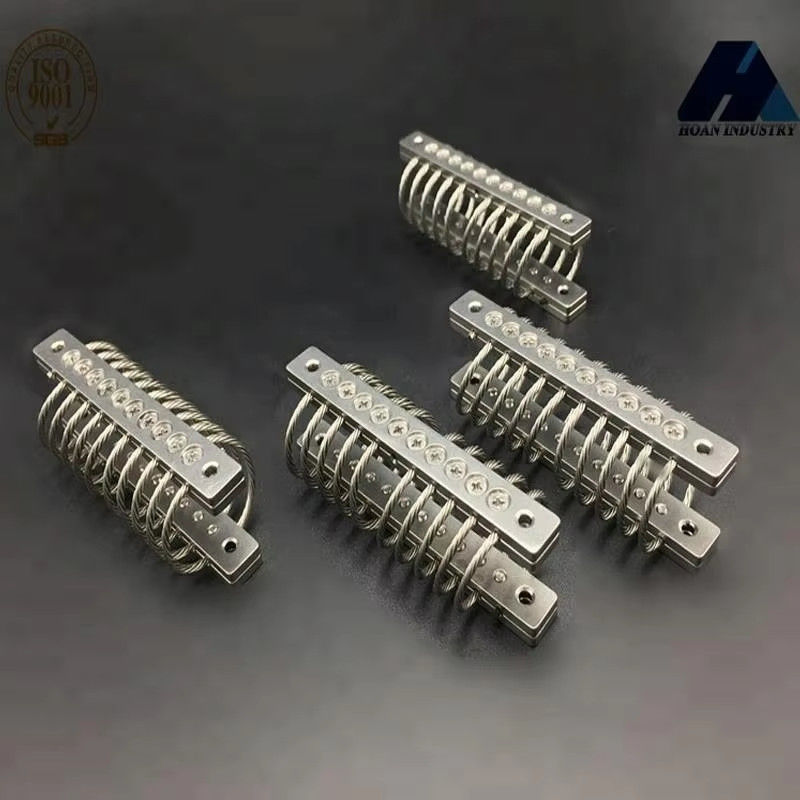

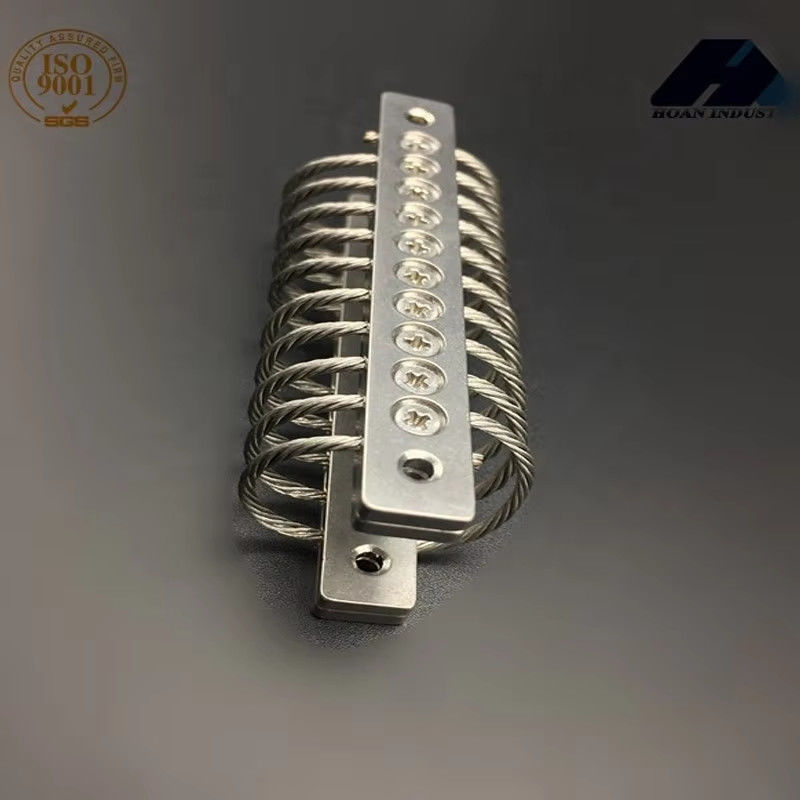

JGX-1598 series shock absorbers use high-quality stainless steel stranded cables, which ensures the corrosion resistance and durability of the product. This material is not only resistant to the erosion of harsh environments, but also has excellent elasticity and stability, guaranteeing the reliability of the shock absorber in a wide range of working conditions.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (KN/m) |
Ks(shock) (Kn/m) |
| 1 | JGX-1598D-657B | 657 | 31.8 | 1676 | 849 |
| 2 | JGX-1598D-557B | 557 | 38.1 | 1259 | 609 |
| 3 | JGX-1598D-515B | 515 | 41.9 | 1105 | 504 |
| 4 | JGX-1598D-428B | 428 | 49.5 | 821 | 356 |
| 5 | JGX-1598D-358B | 358 | 58.4 | 616 | 252 |
| 6 | JGX-1598D-324B | 324 | 67.3 | 511 | 196 |
| 7 | JGX-1598D-285B | 285 | 73.7 | 427 | 159 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (KN/m) |
Ks(shock) (Kn/m) |
| 1 | JGX-1598D-657B | 463.0 | 45.7 | 951 | 419 |
| 2 | JGX-1598D-557B | 406.2 | 54.6 | 741 | 305 |
| 3 | JGX-1598D-515B | 365.4 | 59.7 | 627 | 250 |
| 4 | JGX-1598D-428B | 304.1 | 71.1 | 468 | 177 |
| 5 | JGX-1598D-358B | 254.2 | 83.8 | 350 | 124 |
| 6 | JGX-1598D-324B | 229.2 | 94.0 | 285 | 98 |
| 7 | JGX-1598D-285B | 201.9 | 101.6 | 238 | 81 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (KN/m) |
Ks(shock) (Kn/m) |
| 1 | JGX-1598D-657B | 358.6 | 34.3 | 524 | 524 |
| 2 | JGX-1598D-557B | 308.7 | 40.6 | 375 | 375 |
| 3 | JGX-1598D-515B | 267.8 | 43.2 | 308 | 308 |
| 4 | JGX-1598D-428B | 217.9 | 52.1 | 215 | 215 |
| 5 | JGX-1598D-358B | 154.3 | 61.0 | 152 | 152 |
| 6 | JGX-1598D-324B | 124.8 | 69.9 | 123 | 123 |
| 7 | JGX-1598D-285B | 99.9 | 76.2 | 98 | 98 |
* The material of the wire rope splint *
Stainless Steel or Aluminum can be selected
* Surface treatment of aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum
mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
