JGX-0240 Series
Wire rope vibration isolator is a highly efficient vibration damping equipment that is widely used in various industrial fields. It is mainly composed of stainless steel stranded cables and is supported by stainless steel or aluminum holding rods for effective vibration isolation and damping.

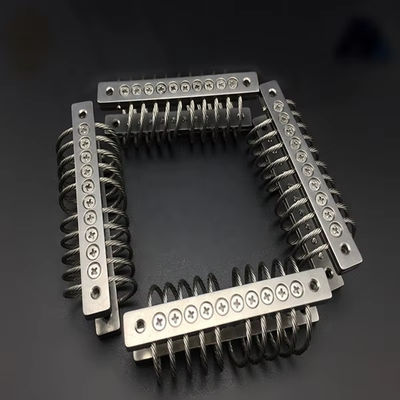

JGX-0240D-3.6A is a new design 10-turn 2.4mm diameter spiral isolator. It is manufactured with high-quality stainless steel materials for excellent waterproofing, corrosion resistance, and durability. The choice of this material ensures that the isolator maintains stable performance in a variety of harsh environments.
The JGX-0240D-3.6A has a maximum static load of 3.6 kg, which means it is able to withstand large weights while maintaining good vibration isolation. This characteristic is particularly suitable for use in precision instruments such as measuring equipment, optical instruments, medical equipment, etc., which are often very sensitive to vibration and shock.
Overall, the JGX-0240D-3.6A vibration isolator is a high-performance, versatile vibration damping device. Its appearance greatly improves the stability and service life of the equipment, while reducing maintenance costs. With the continuous development of science and technology and the growth of market demand, we have reason to believe that wire rope vibration isolators will play a more important role in the future industrial field.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 8.6 | 8.6 | 65 | 40 |
| 2 | JGX-0240D-7.7A | 7.7 | 10.7 | 51 | 30 |
| 3 | JGX-0240D-6.3A | 6.3 | 13.7 | 37 | 19 |
| 4 | JGX-0240D-4.5A | 4.5 | 17.8 | 23 | 11 |
| 5 | JGX-0240D-4A | 4.0 | 20.8 | 18 | 7.9 |
| 6 | JGX-0240D-3.6 | 3.6 | 22.9 | 16 | 7.0 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 6.3 | 12.7 | 38 | 20 |
| 2 | JGX-0240D-7.7A | 5.4 | 15.7 | 28 | 14 |
| 3 | JGX-0240D-6.3A | 4.5 | 18.8 | 21 | 9.6 |
| 4 | JGX-0240D-4.5A | 3.7 | 25.9 | 13 | 5.6 |
| 5 | JGX-0240D-4A | 3.2 | 27.9 | 11 | 4.4 |
| 6 | JGX-0240D-3.6 | 2.8 | 32.0 | 9.6 | 3.5 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 4.5 | 9.7 | 24 | 24 |
| 2 | JGX-0240D-7.7A | 4.1 | 11.7 | 18 | 18 |
| 3 | JGX-0240D-6.3A | 3.2 | 13.7 | 12 | 12 |
| 4 | JGX-0240D-4.5A | 2.8 | 18.8 | 7.0 | 7.0 |
| 5 | JGX-0240D-4A | 2.2 | 21.8 | 5.3 | 5.3 |
| 6 | JGX-0240D-3.6 | 1.8 | 23.9 | 4.4 | 4.4 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
