JGX-0240 Series

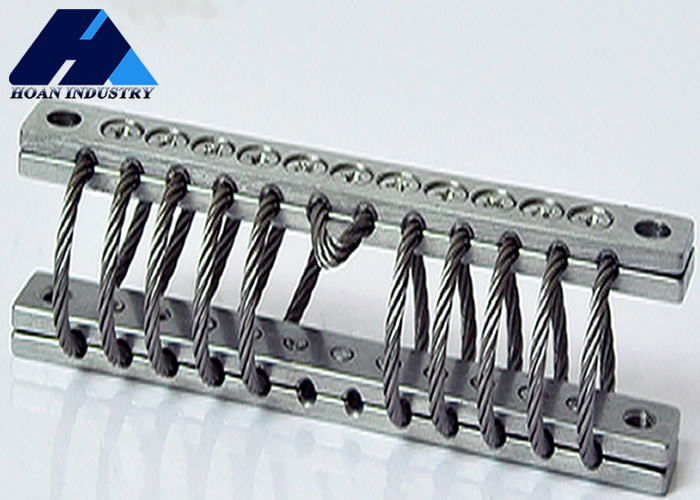

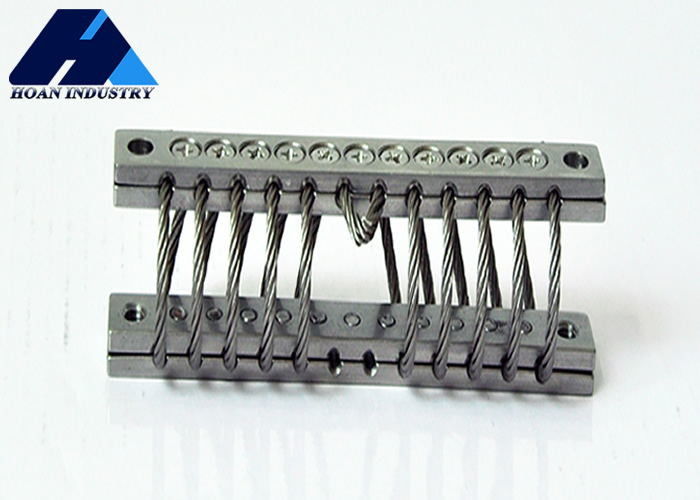

The vibration isolator is a vibration isolation product designed for precision instruments, and its core structure is constructed of stainless steel stranded cables, which are precisely calculated and processed to form a spring system with high elasticity and durability. Through this design, the isolator can withstand heavy loads while providing excellent vibration isolation, effectively suppressing and reducing interference and damage caused by external environmental factors such as vibration, shock, etc.
The housing material of the vibration isolator is made of high-strength stainless steel or aluminum alloy, which not only gives the product excellent mechanical strength and stiffness, but also provides good corrosion resistance, allowing it to work stably for a long time under harsh environmental conditions. In addition, the stainless steel material has good waterproof properties, which is especially important for equipment that needs to be used in wet or marine environments.
JGX-0240 series vibration isolators will continue to give full play to their advantages in the field of vibration damping and provide reliable protection for equipment in more fields. Whether it is in transportation, marine, shipbuilding, navy, energy or photography equipment, aviation equipment, communication equipment, electronic sensing equipment, mobile electronic equipment and other industries, JGX-0240D-8.6A vibration isolator can exert its excellent performance, ensure the stable operation of the equipment, and extend the service life.
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(vibration) (Kn/m) | Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 8.6 | 8.6 | 65 | 40 |
| 2 | JGX-0240D-7.7A | 7.7 | 10.7 | 51 | 30 |
| 3 | JGX-0240D-6.3A | 6.3 | 13.7 | 37 | 19 |
| 4 | JGX-0240D-4.5A | 4.5 | 17.8 | 23 | 11 |
| 5 | JGX-0240D-4A | 4.0 | 20.8 | 18 | 7.9 |
| 6 | JGX-0240D-3.6 | 3.6 | 22.9 | 16 | 7.0 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(vibration) (Kn/m) | Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 6.3 | 12.7 | 38 | 20 |
| 2 | JGX-0240D-7.7A | 5.4 | 15.7 | 28 | 14 |
| 3 | JGX-0240D-6.3A | 4.5 | 18.8 | 21 | 9.6 |
| 4 | JGX-0240D-4.5A | 3.7 | 25.9 | 13 | 5.6 |
| 5 | JGX-0240D-4A | 3.2 | 27.9 | 11 | 4.4 |
| 6 | JGX-0240D-3.6 | 2.8 | 32.0 | 9.6 | 3.5 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(vibration) (Kn/m) | Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 4.5 | 9.7 | 24 | 24 |
| 2 | JGX-0240D-7.7A | 4.1 | 11.7 | 18 | 18 |
| 3 | JGX-0240D-6.3A | 3.2 | 13.7 | 12 | 12 |
| 4 | JGX-0240D-4.5A | 2.8 | 18.8 | 7.0 | 7.0 |
| 5 | JGX-0240D-4A | 2.2 | 21.8 | 5.3 | 5.3 |
| 6 | JGX-0240D-3.6 | 1.8 | 23.9 | 4.4 | 4.4 |
