Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0956D-32A
Video
Video

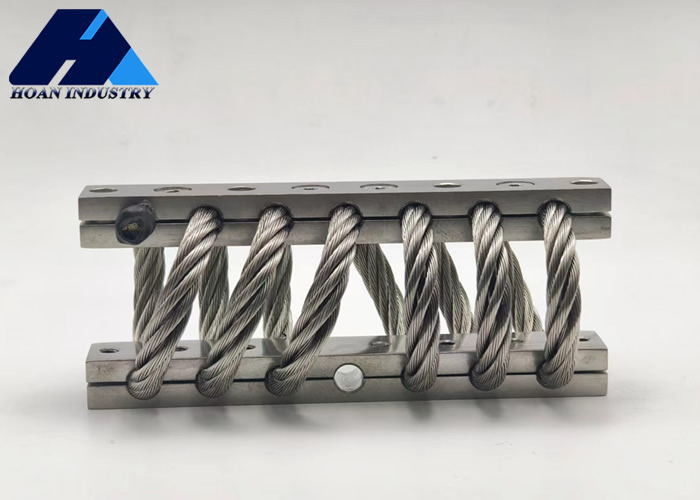

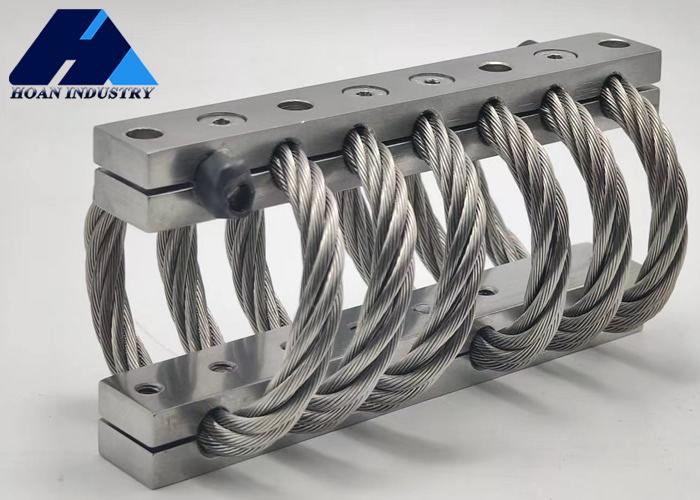

JGX-0956 series
To further improve the vibration isolation, the isolator is also equipped with an alloy or stainless steel retaining rod. These retaining rods not only act as support, but also work in tandem with stranded cables to provide additional damping and support for more effective absorption and isolation of vibrations.
The installation of the vibration isolator is very flexible, and the appropriate installation method and crimping pattern can be selected according to the actual needs. In addition, the size of the isolator can also be customized according to the customer's specific requirements to meet the needs of different equipment and application scenarios. This customized design allows vibration isolators to be used in a wide range of complex mechanical systems.
In conclusion, as a highly efficient shock absorbing device, the vibration isolator provides a reliable vibration isolation solution for various mechanical equipment through its unique design and material selection. With the continuous advancement of technology and the growth of application needs, the types and functions of vibration isolators will continue to be enriched and improved to meet the more demanding industrial challenges of the future.
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 90.8 | 47.8 | 177 | 77 |
| 2 | JGX-0956D-104A | 84.0 | 51.8 | 156 | 67 |
| 3 | JGX-0956D-80A | 68.1 | 55.9 | 120 | 49 |
| 4 | JGX-0956D-75A | 63.6 | 63.0 | 103 | 40 |
| 5 | JGX-0956D-72A | 61.3 | 71.1 | 92 | 35 |
| 6 | JGX-0956D-40A | 34.8 | 91.9 | 44 | 16 |
| 7 | JGX-0956D-32A | 28.6 | 95.0 | 36 | 12 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 70.3 | 36.1 | 98 | 98 |
| 2 | JGX-0956D-104A | 65.8 | 39.1 | 84 | 84 |
| 3 | JGX-0956D-80A | 49.9 | 42.2 | 58 | 58 |
| 4 | JGX-0956D-75A | 47.7 | 47.2 | 49 | 49 |
| 5 | JGX-0956D-72A | 45.4 | 52.8 | 44 | 44 |
| 6 | JGX-0956D-40A | 20.4 | 68.1 | 20 | 20 |
| 7 | JGX-0956D-32A | 15.9 | 71.1 | 15 | 15 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 110 | 34.0 | 275 | 135 |
| 2 | JGX-0956D-104A | 104 | 37.1 | 240 | 114 |
| 3 | JGX-0956D-80A | 80 | 40.1 | 180 | 84 |
| 4 | JGX-0956D-75A | 75 | 44.7 | 154 | 68 |
| 5 | JGX-0956D-72A | 72 | 49.8 | 137 | 60 |
| 6 | JGX-0956D-40A | 40 | 66.0 | 65 | 25 |
| 7 | JGX-0956D-32A | 32 | 68.1 | 51 | 19 |
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
