Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0956D-40A
Video
Video
JGX-0956 series

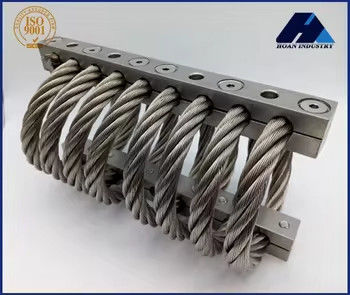

The main component of the isolator is stainless steel stranded cable, a material with excellent mechanical properties and corrosion resistance, ensuring the reliability and durability of the isolator in harsh environments. Stranded cables undergo a precision machining process to form specific shapes and sizes to suit the needs of different equipment and working conditions.
The working principle of the isolator is based on the principle of spring and damping. The spring part provides restoring force through a pre-formed elastic cable, while the damping part uses the relative friction between wires and strands inside the cable to dissipate vibrational energy. This combination of spring and damping allows the isolator to absorb vibrations while providing the necessary support to ensure proper operation of the equipment.
Vibration isolators not only improve the stability and service life of the equipment, but also improve the working environment by reducing the transmission of vibration and noise, helping to improve the efficiency and comfort of employees. In addition, vibration isolators also help to reduce maintenance costs by reducing equipment damage and malfunction due to vibration.
In conclusion, as a highly efficient shock absorbing device, the vibration isolator provides a reliable vibration isolation solution for various mechanical equipment through its unique design and material selection. With the continuous advancement of technology and the growth of application needs, the types and functions of vibration isolators will continue to be enriched and improved to meet the more demanding industrial challenges of the future.
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 90.8 | 47.8 | 177 | 77 |
| 2 | JGX-0956D-104A | 84.0 | 51.8 | 156 | 67 |
| 3 | JGX-0956D-80A | 68.1 | 55.9 | 120 | 49 |
| 4 | JGX-0956D-75A | 63.6 | 63.0 | 103 | 40 |
| 5 | JGX-0956D-72A | 61.3 | 71.1 | 92 | 35 |
| 6 | JGX-0956D-40A | 34.8 | 91.9 | 44 | 16 |
| 7 | JGX-0956D-32A | 28.6 | 95.0 | 36 | 12 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 70.3 | 36.1 | 98 | 98 |
| 2 | JGX-0956D-104A | 65.8 | 39.1 | 84 | 84 |
| 3 | JGX-0956D-80A | 49.9 | 42.2 | 58 | 58 |
| 4 | JGX-0956D-75A | 47.7 | 47.2 | 49 | 49 |
| 5 | JGX-0956D-72A | 45.4 | 52.8 | 44 | 44 |
| 6 | JGX-0956D-40A | 20.4 | 68.1 | 20 | 20 |
| 7 | JGX-0956D-32A | 15.9 | 71.1 | 15 | 15 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 110 | 34.0 | 275 | 135 |
| 2 | JGX-0956D-104A | 104 | 37.1 | 240 | 114 |
| 3 | JGX-0956D-80A | 80 | 40.1 | 180 | 84 |
| 4 | JGX-0956D-75A | 75 | 44.7 | 154 | 68 |
| 5 | JGX-0956D-72A | 72 | 49.8 | 137 | 60 |
| 6 | JGX-0956D-40A | 40 | 66.0 | 65 | 25 |
| 7 | JGX-0956D-32A | 32 | 68.1 | 51 | 19 |
*The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
