Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0956D-72A
Video
Video
JGX-0956 series

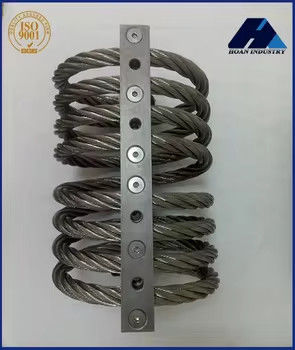

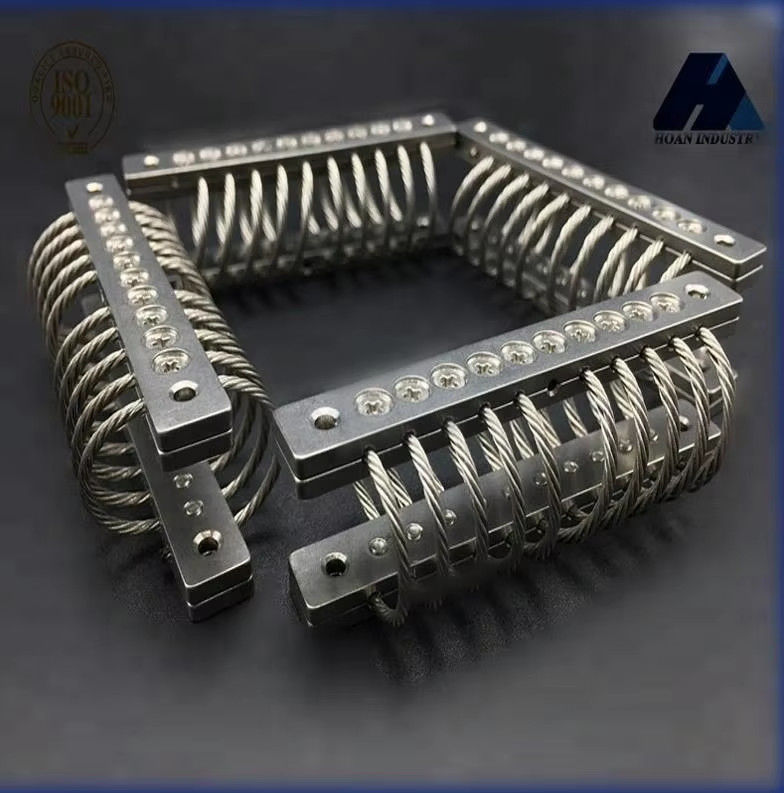

The main component of the isolator is stainless steel stranded cable, a material with excellent mechanical properties and corrosion resistance, ensuring the reliability and durability of the isolator in harsh environments. Stranded cables undergo a precision machining process to form specific shapes and sizes to suit the needs of different equipment and working conditions.
To further improve the vibration isolation, the isolator is also equipped with an alloy or stainless steel retaining rod. These retaining rods not only act as support, but also work in tandem with stranded cables to provide additional damping and support for more effective absorption and isolation of vibrations.
The installation of the vibration isolator is very flexible, and the appropriate installation method and crimping pattern can be selected according to the actual needs. In addition, the size of the isolator can also be customized according to the customer's specific requirements to meet the needs of different equipment and application scenarios. This customized design allows vibration isolators to be used in a wide range of complex mechanical systems.
The working principle of the isolator is based on the principle of spring and damping. The spring part provides restoring force through a pre-formed elastic cable, while the damping part uses the relative friction between wires and strands inside the cable to dissipate vibrational energy. This combination of spring and damping allows the isolator to absorb vibrations while providing the necessary support to ensure proper operation of the equipment.
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 90.8 | 47.8 | 177 | 77 |
| 2 | JGX-0956D-104A | 84.0 | 51.8 | 156 | 67 |
| 3 | JGX-0956D-80A | 68.1 | 55.9 | 120 | 49 |
| 4 | JGX-0956D-75A | 63.6 | 63.0 | 103 | 40 |
| 5 | JGX-0956D-72A | 61.3 | 71.1 | 92 | 35 |
| 6 | JGX-0956D-40A | 34.8 | 91.9 | 44 | 16 |
| 7 | JGX-0956D-32A | 28.6 | 95.0 | 36 | 12 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Knm)
|
Ks(shock) (Knm)
|
| 1 | JGX-0956D-110A | 70.3 | 36.1 | 98 | 98 |
| 2 | JGX-0956D-104A | 65.8 | 39.1 | 84 | 84 |
| 3 | JGX-0956D-80A | 49.9 | 42.2 | 58 | 58 |
| 4 | JGX-0956D-75A | 47.7 | 47.2 | 49 | 49 |
| 5 | JGX-0956D-72A | 45.4 | 52.8 | 44 | 44 |
| 6 | JGX-0956D-40A | 20.4 | 68.1 | 20 | 20 |
| 7 | JGX-0956D-32A | 15.9 | 71.1 | 15 | 15 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 110 | 34.0 | 275 | 135 |
| 2 | JGX-0956D-104A | 104 | 37.1 | 240 | 114 |
| 3 | JGX-0956D-80A | 80 | 40.1 | 180 | 84 |
| 4 | JGX-0956D-75A | 75 | 44.7 | 154 | 68 |
| 5 | JGX-0956D-72A | 72 | 49.8 | 137 | 60 |
| 6 | JGX-0956D-40A | 40 | 66.0 | 65 | 25 |
| 7 | JGX-0956D-32A | 32 | 68.1 | 51 | 19 |
