JGX-0956 series

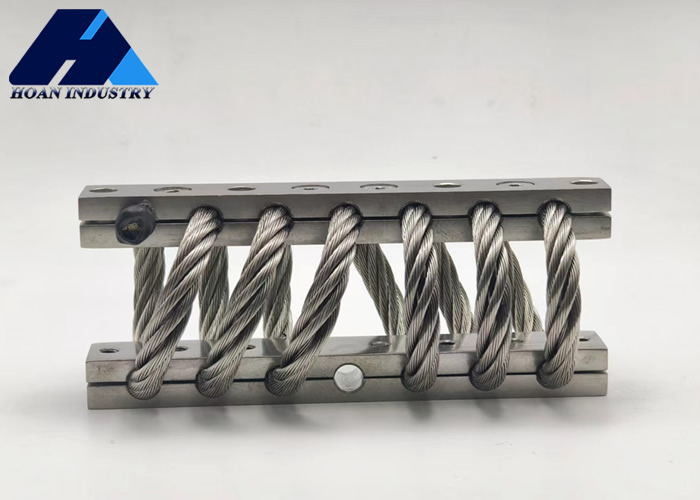

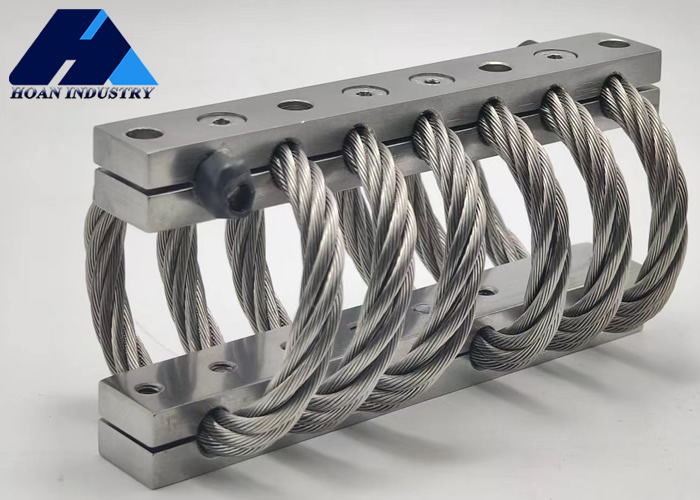

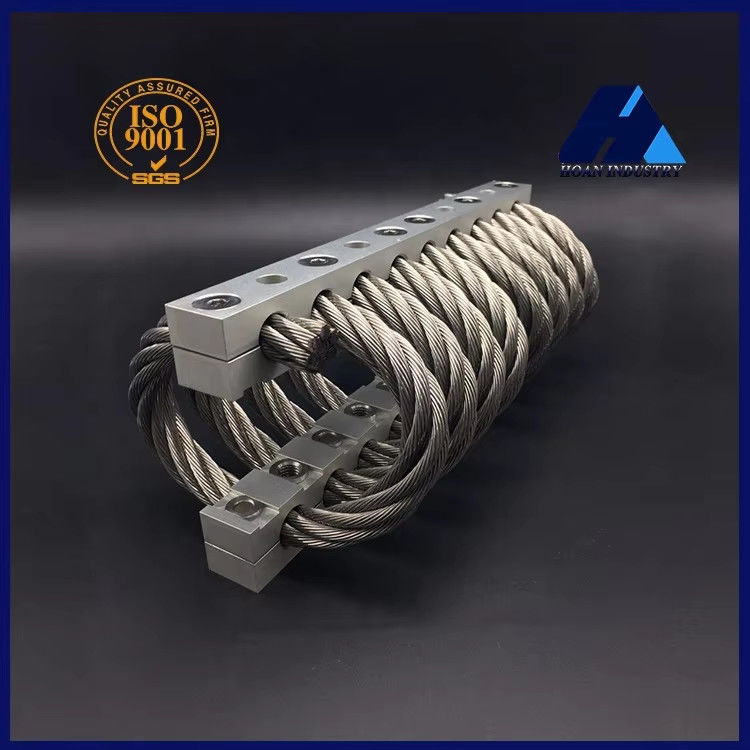

Vibration mounts are comprised of stainless steel stranded cable threaded through alloy or stainless steel retaining bars that are mounted for effective shock and vibration isolation. With versatile mounting options, crimping patterns, and size variation, the vibration mounts can help your systems meet all requirements for industrial, defense, and commercial uses.
The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.
The max static load of the JGX-0956 series is from 32kg to 110kg, with 6 loops 9.5mm diameter wire winded in the mounting bars.
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 90.8 | 47.8 | 177 | 77 |
| 2 | JGX-0956D-104A | 84.0 | 51.8 | 156 | 67 |
| 3 | JGX-0956D-80A | 68.1 | 55.9 | 120 | 49 |
| 4 | JGX-0956D-75A | 63.6 | 63.0 | 103 | 40 |
| 5 | JGX-0956D-72A | 61.3 | 71.1 | 92 | 35 |
| 6 | JGX-0956D-40A | 34.8 | 91.9 | 44 | 16 |
| 7 | JGX-0956D-32A | 28.6 | 95.0 | 36 | 12 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 70.3 | 36.1 | 98 | 98 |
| 2 | JGX-0956D-104A | 65.8 | 39.1 | 84 | 84 |
| 3 | JGX-0956D-80A | 49.9 | 42.2 | 58 | 58 |
| 4 | JGX-0956D-75A | 47.7 | 47.2 | 49 | 49 |
| 5 | JGX-0956D-72A | 45.4 | 52.8 | 44 | 44 |
| 6 | JGX-0956D-40A | 20.4 | 68.1 | 20 | 20 |
| 7 | JGX-0956D-32A | 15.9 | 71.1 | 15 | 15 |
| No. | Model |
Max Static Load (Kg)
|
Max Deflection (mm)
|
Kv(vibration) (Kn/m)
|
Ks(shock) (Kn/m)
|
| 1 | JGX-0956D-110A | 110 | 34.0 | 275 | 135 |
| 2 | JGX-0956D-104A | 104 | 37.1 | 240 | 114 |
| 3 | JGX-0956D-80A | 80 | 40.1 | 180 | 84 |
| 4 | JGX-0956D-75A | 75 | 44.7 | 154 | 68 |
| 5 | JGX-0956D-72A | 72 | 49.8 | 137 | 60 |
| 6 | JGX-0956D-40A | 40 | 66.0 | 65 | 25 |
| 7 | JGX-0956D-32A | 32 | 68.1 | 51 | 19 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
*The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
