Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0160D-2.7A
Video
Video
JGX-0160D series

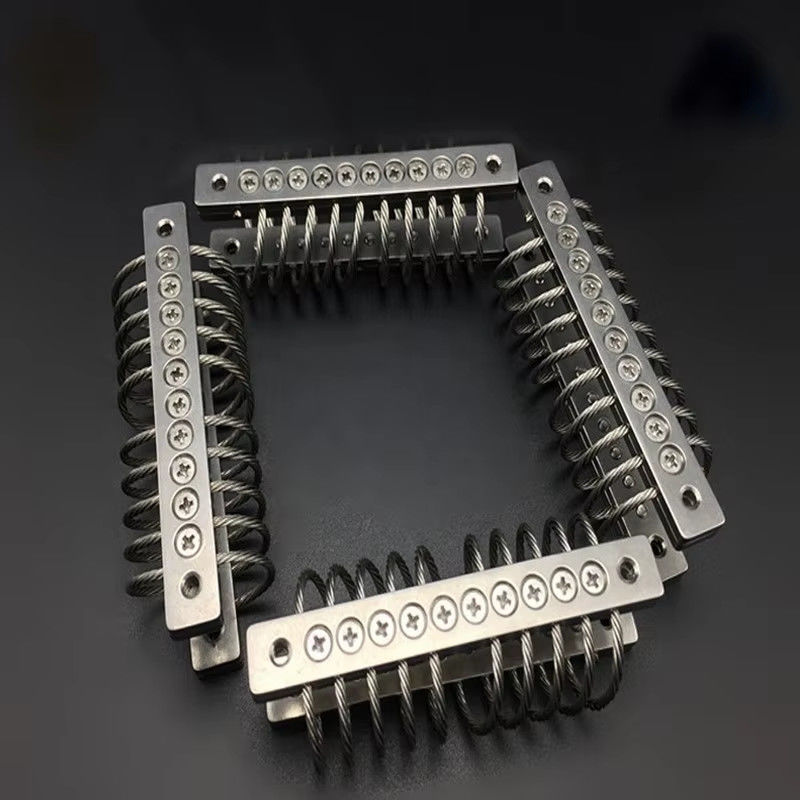

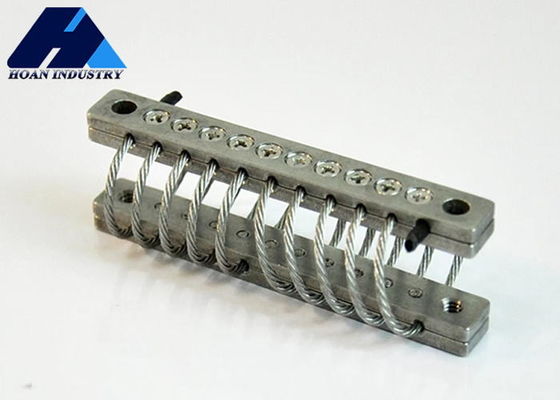

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The JGX-0160D-2.7A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2.7A provides amazing vibration isolation any time in use.
JGX-0160D-2.7A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 2.7kg, especially used in the precise instruments for the noise attenuation for both military and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,
photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
| Curve No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0160D-4.8A | 2.2 | 8.6 | 14 | 14 |
| 2 | JGX-0160D-3.6A | 1.8 | 10.7 | 8.8 | 8.8 |
| 3 | JGX-0160D-3.2A | 1.6 | 15.7 | 5.3 | 5.3 |
| 4 | JGX-0160D-2.7A | 1.3 | 18.8 | 3.9 | 3.9 |
| 5 | JGX-0160D-2.2A | 1.3 | 19.8 | 3.2 | 3.2 |
| 6 | JGX-0160D-2A | 1.1 | 22.9 | 2.3 | 2.3 |
